Port A in slot 6b is reserved for OSM.

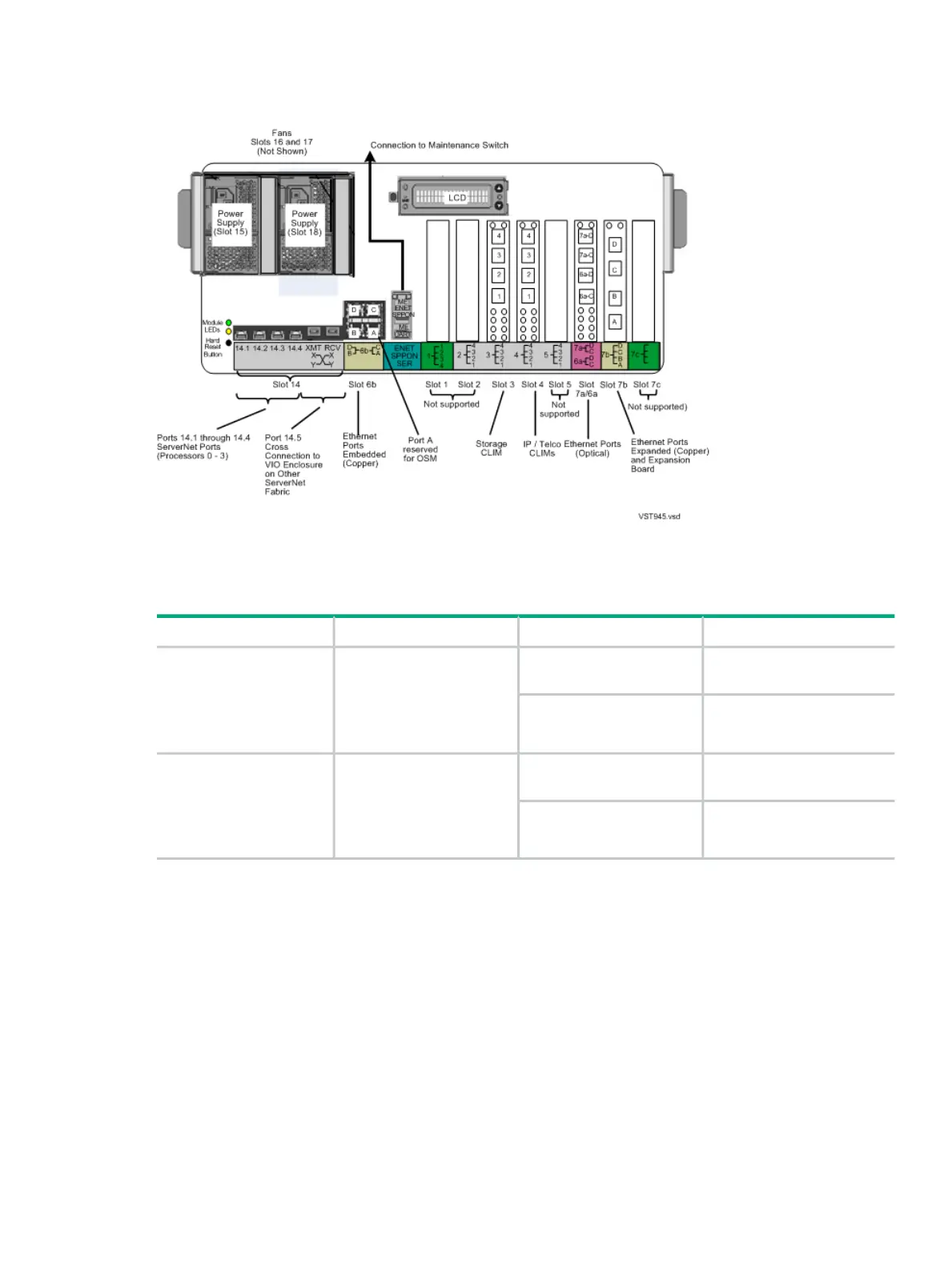

Figure 2 VIO Enclosure Slot Locations, NS2300 System
CLIM Connection Group-Module-Slot-Port Numbering
This table lists the default numbering for VIO connections to a CLIM:
PIC Port NumbersVIO SlotModuleCLIM Group
1 and 3 for 2 Storage CLIMs,
1 - 4 for 4 Storage CLIMs
3 (Storage CLIM)2100
1-24 (IP CLIM)
4 (Telco CLIM)
1 and 3 for 2 Storage CLIMs,
1 - 4 for 4 Storage CLIMs
3 (Storage CLIM)3100
1-24 (IP CLIM)
4 (Telco CLIM)
