Dimensions and Weights

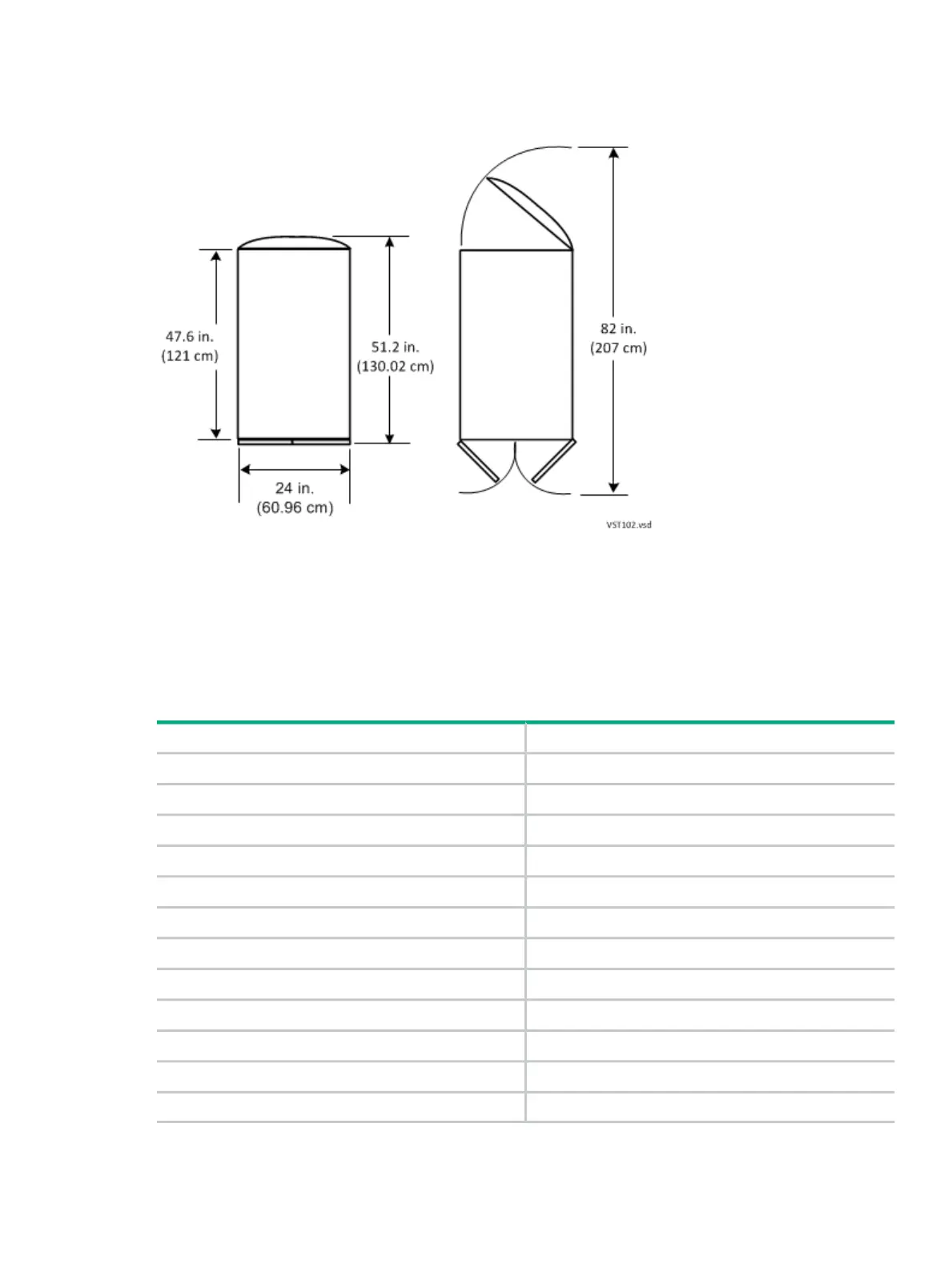

Plan View of the Racks
Service Clearances for the Racks
Aisles: 6 feet (182.9 centimeters)
Front: 3 feet (91.4 centimeters)
Rear: 3 feet (91.4 centimeters)
Unit Sizes
Height (U)Enclosure Type
2Blade element
4VIO enclosure
2SAS Disk Enclosure
2Storage CLIM
2IP CLIM
2Telco CLIM
1Maintenance switch (Ethernet)
1RJ45 patch panel
3R5000 UPS (for single-phase power)
6R12000/3 UPS (for three-phase power)
3Extended runtime module (ERM)
2Rack-mount system console, keyboard, and display
Dimensions and Weights 49
