NOTE: The following illustrations of modular PDU connections show single-phase modular
PDU cores with four outlets. In three-phase installations, the modular PDU cores have six outlets
(L1 through L6).
Also, 36U racks with modular PDUs have only three extension bars on each side.

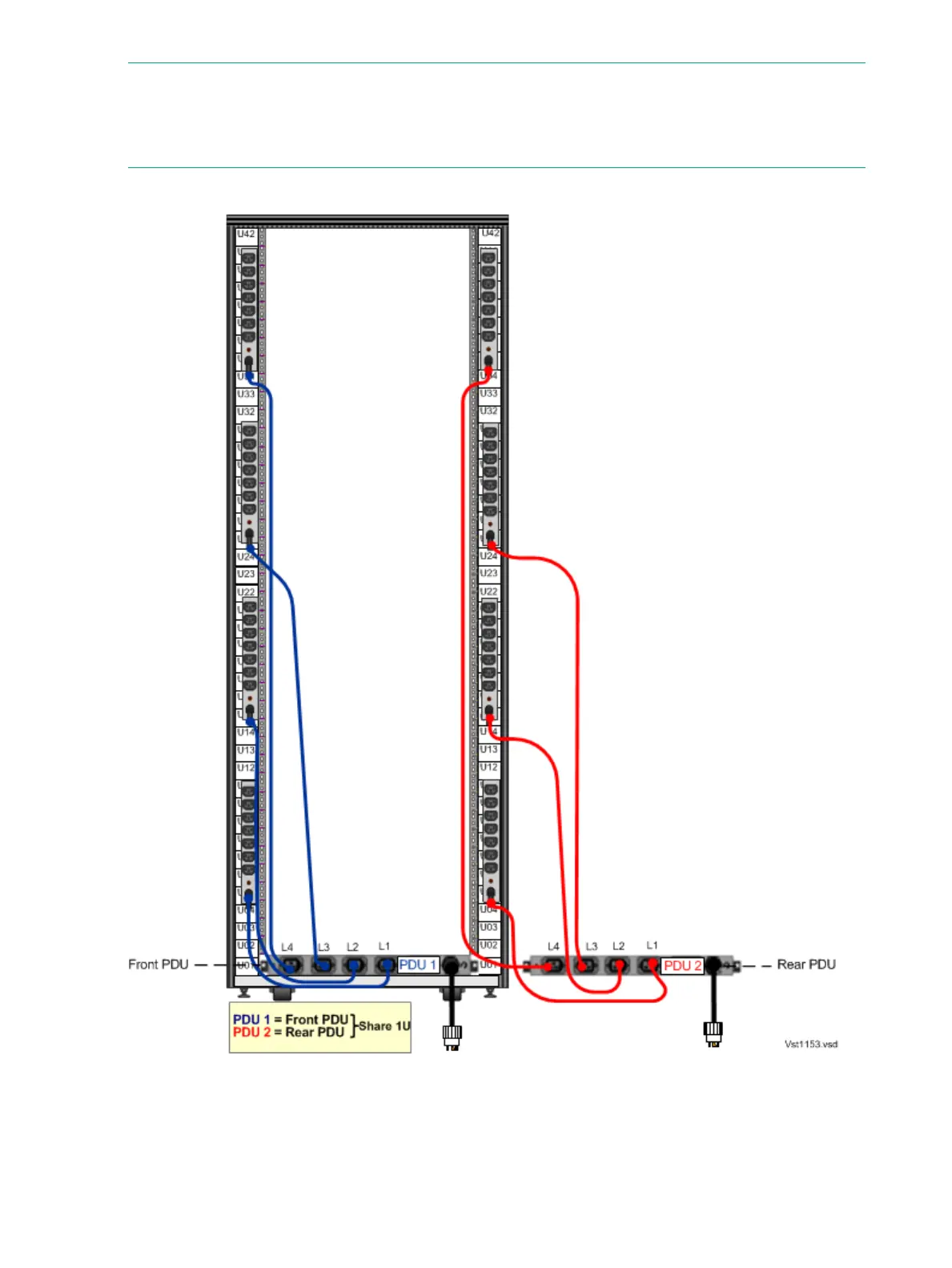

Figure 6 Modular PDU Connections (Without UPS)
34 System Installation Specifications for NS2300 Systems
