NonStop X NS7 Server Blades
An NS7 system achieves full software fault tolerance by running the NonStop operating system
on the NonStop X NS7 Server Blades. The NS7 X1 system ships with BL460c Gen8 server
blades and the NS7 X2 ships with BL460c Gen9 server blades.
NOTE: BL460c Gen8 and Gen9 server blades cannot coexist in the same system.
Characteristics in NS7 X1 and NS7 X2 SystemsNS7 Server Blades
• Half-height server blade that features Intel Xeon processors and contains an
InfiniBand interface mezzanine card to provide InfiniBand fabric connectivity
• Provides a maximum of 192 GB of memory per server blade
• One HPE 10Gb dual-port FlexibleLOM Ethernet Adapter
• One Infiniband FDR dual-port Host Channel Adapter (HCA)
• Environment Monitoring Services to OA
• Disk bays and Smart Array Controller are not used
More information
Migrating NonStop X NS7 Systems (service providers only)
CLuster I/O Modules (CLIMs)
NS7 systems support the Storage CLIM, IP CLIM and Telco CLIM which function as I/O or
Ethernet adapters and are managed by the Cluster I/O Protocols (CIP) subsystem.

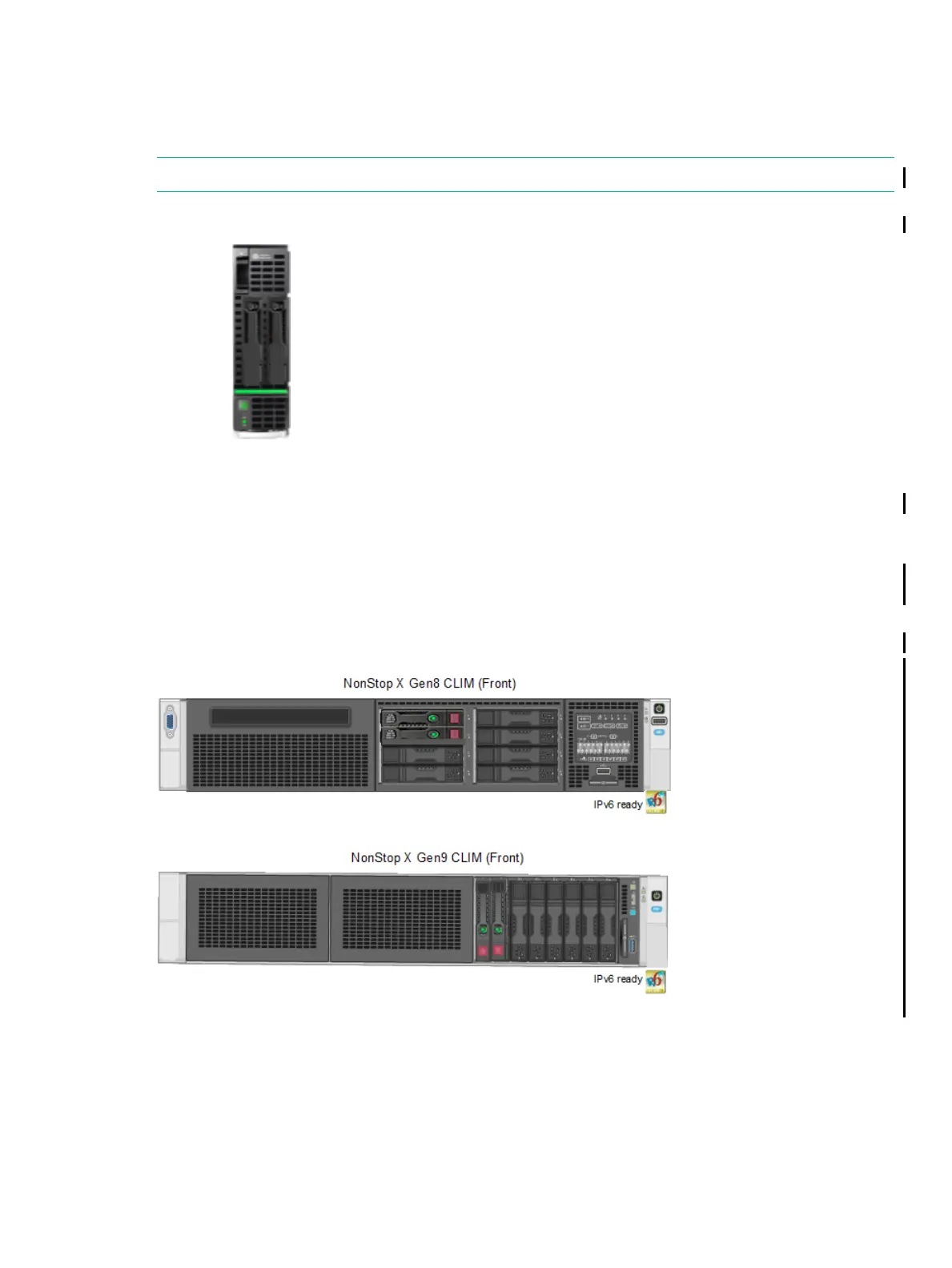

A CLIM is identified by the number on the rear label; this same number is also listed as the part
number in OSM. Below are sample illustrations of CLIMs.
More information
Cluster I/O Protocols (CIP) Configuration and Management Manual
CLuster I/O Module (CLIM) Software Compatibility Guide
NonStop X NS7 Standard and Optional Hardware 11
