Two Modular PDUs Without UPS — (NA/JPN and INTL, Single-Phase and
Three-Phase)

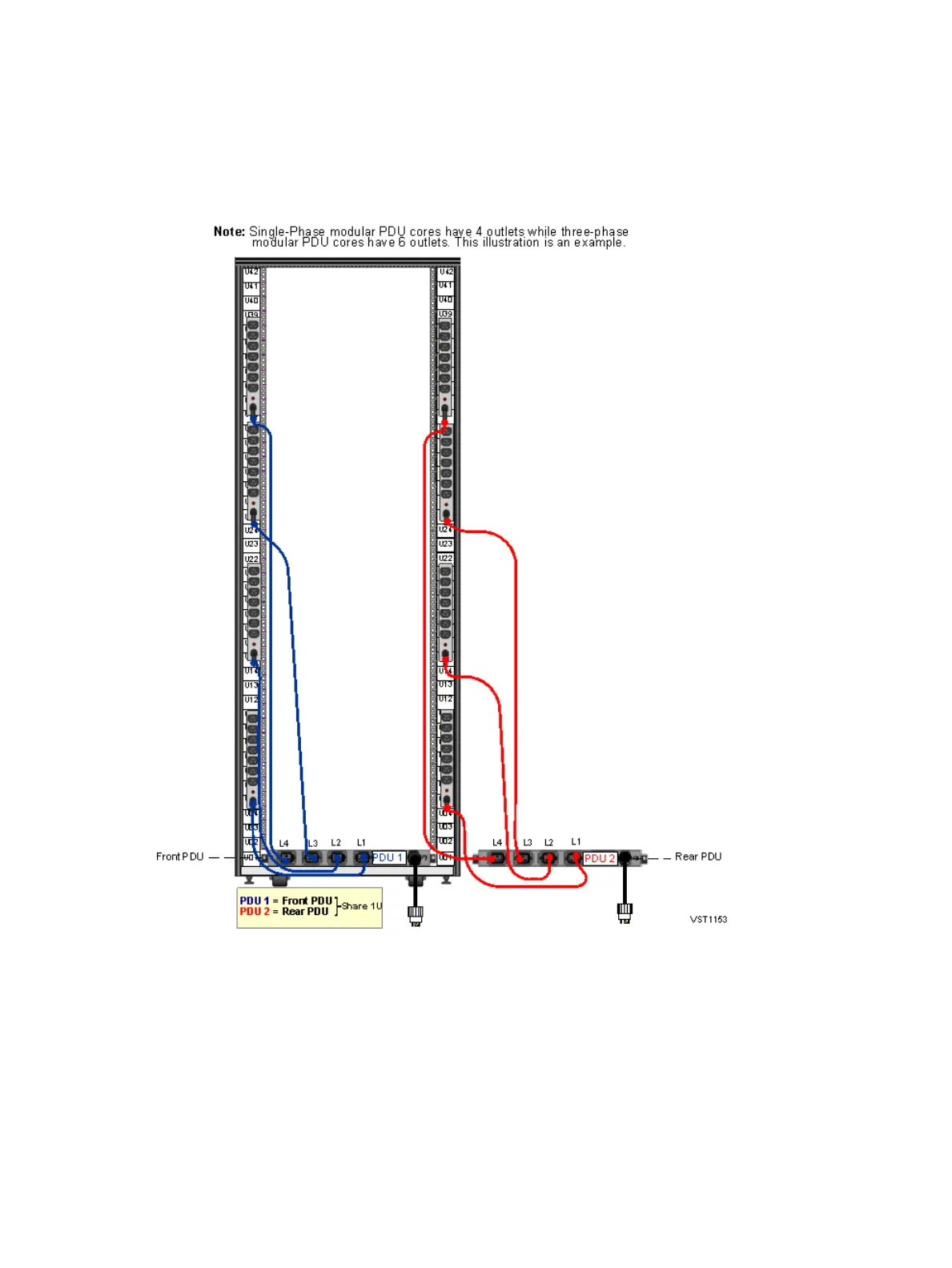

This illustration shows the power configuration for two modular PDUs without a UPS in a rack.
For detailed power specifications and connector types, see “Power Specifications” (page 45).
Figure 11 Two Modular PDUs Without UPS — (NA/JPN and INTL, Single-Phase and
Three-Phase)
Power Distribution Unit (PDU) Types for a Rack 35
