Two Modular PDU Connections With Single-Phase UPS — (NA/JPN and INTL)

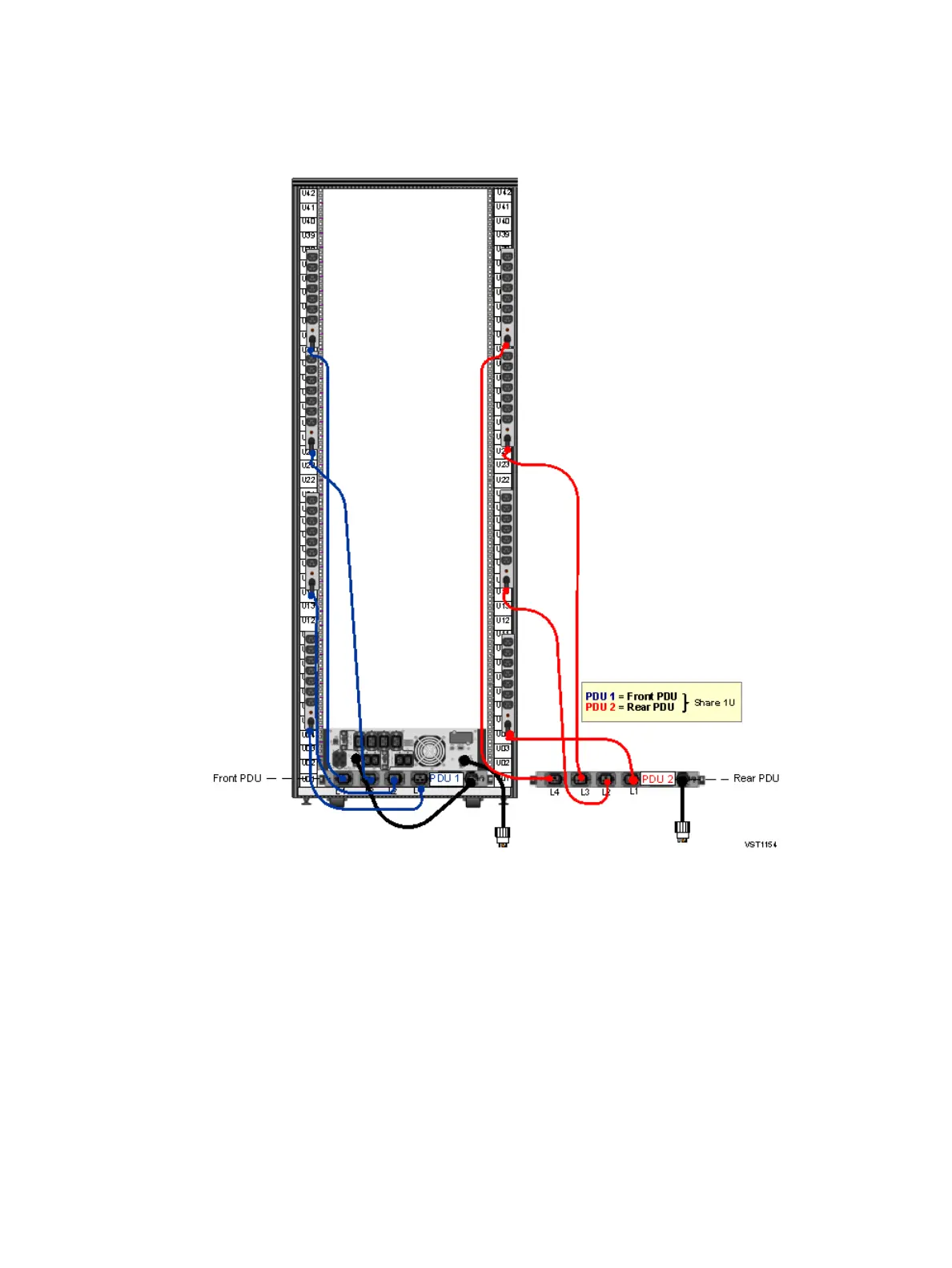

This illustration shows the connections for two modular PDUs with a single-phase UPS in a rack.
For detailed power specifications and connector types, see “Power Specifications” (page 45).
Figure 12 Two Modular PDUs With a Single-Phase UPS — (NA/JPN and INTL)
36 NS7 System Installation Specifications
