HP Integrity NonStop X NS7 - North America;Japan Three-Phase Power Specifications; International Single-Phase Power Specifications

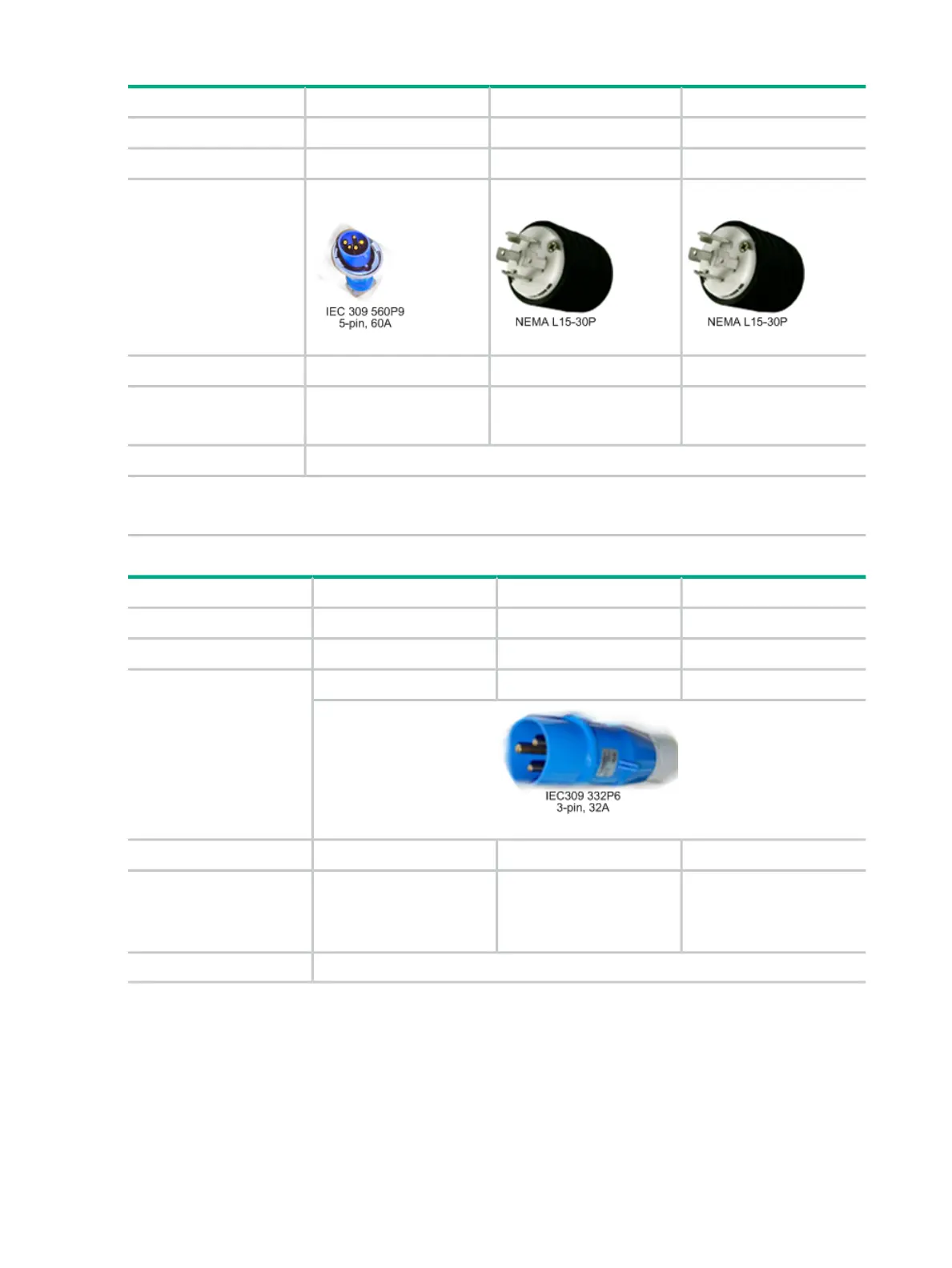

Table 4 North America/Japan Three-Phase Power Specifications
Modular PDU 3-phaseiPDU 3-phaseR12000 3-phase UPSNorth America/Japan
24 A24 A12 kWOutput Load
208V 3P Delta208V 3P Delta208V 3P WyeInput Voltage
NEMA L15-30PNEMA L15-30PIEC309 560P9Input Connector
N/AN/A208V 3P DeltaOutput Voltage
6 x C196 x C192 x NEMA L15-30ROutput Connectors
(42 x C13)(20 x C13)
UPS outputs are connected to the compatible PDU inputs.Notes
Table 5 International Single-Phase Power Specifications
Modular PDU 1-phaseiPDU 1-phaseR5000 1-phase UPSInternational
32 A32 A4500 WOutput Load
200 – 240 V200 – 240 V220 – 240 VInput Voltage
IEC309 332P6IEC309 332P6IEC309 332P6Input Connector
N/AN/A220 – 240 VOutput Voltage
4x C196 x C191 x IEC309 332R6Output Connectors
(28 x C13)(20 x C13)4 x C19
4 x C13
UPS outputs are connected to the compatible PDU inputs.Notes
