Two Modular PDU Connections With Three-Phase UPS — (NA/JPN and INTL)
This illustration shows the connections for two modular PDUs with a three-phase UPS in a rack.
For detailed power specifications and connector types, see “Power Specifications” (page 45).

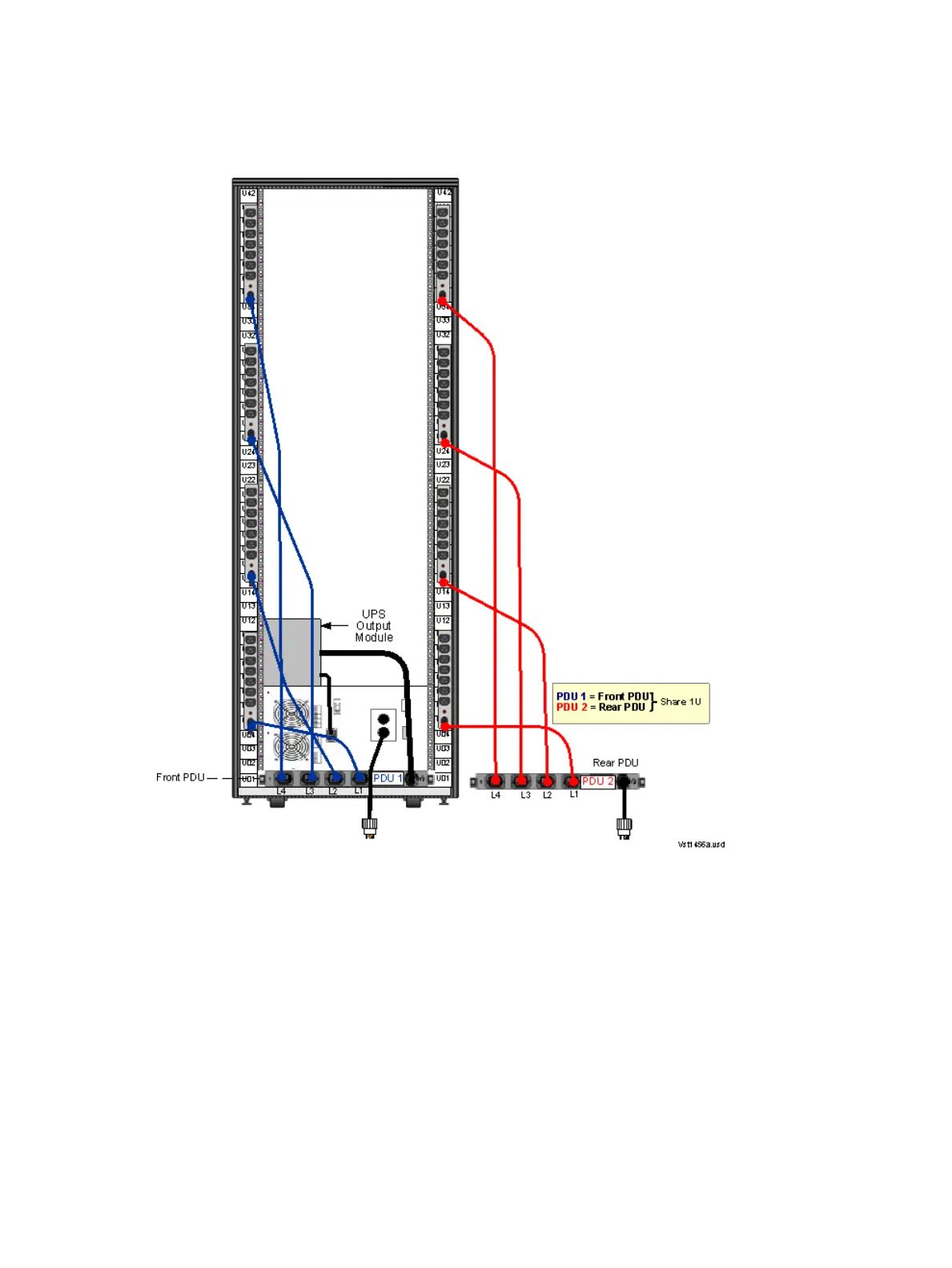

Figure 13 Two Modular PDUs With a Three-Phase UPS — (NA/JPN and INTL)
