IP or Telco CLIM Option 2 — Four 10GBase-SR and One 1GBase-T

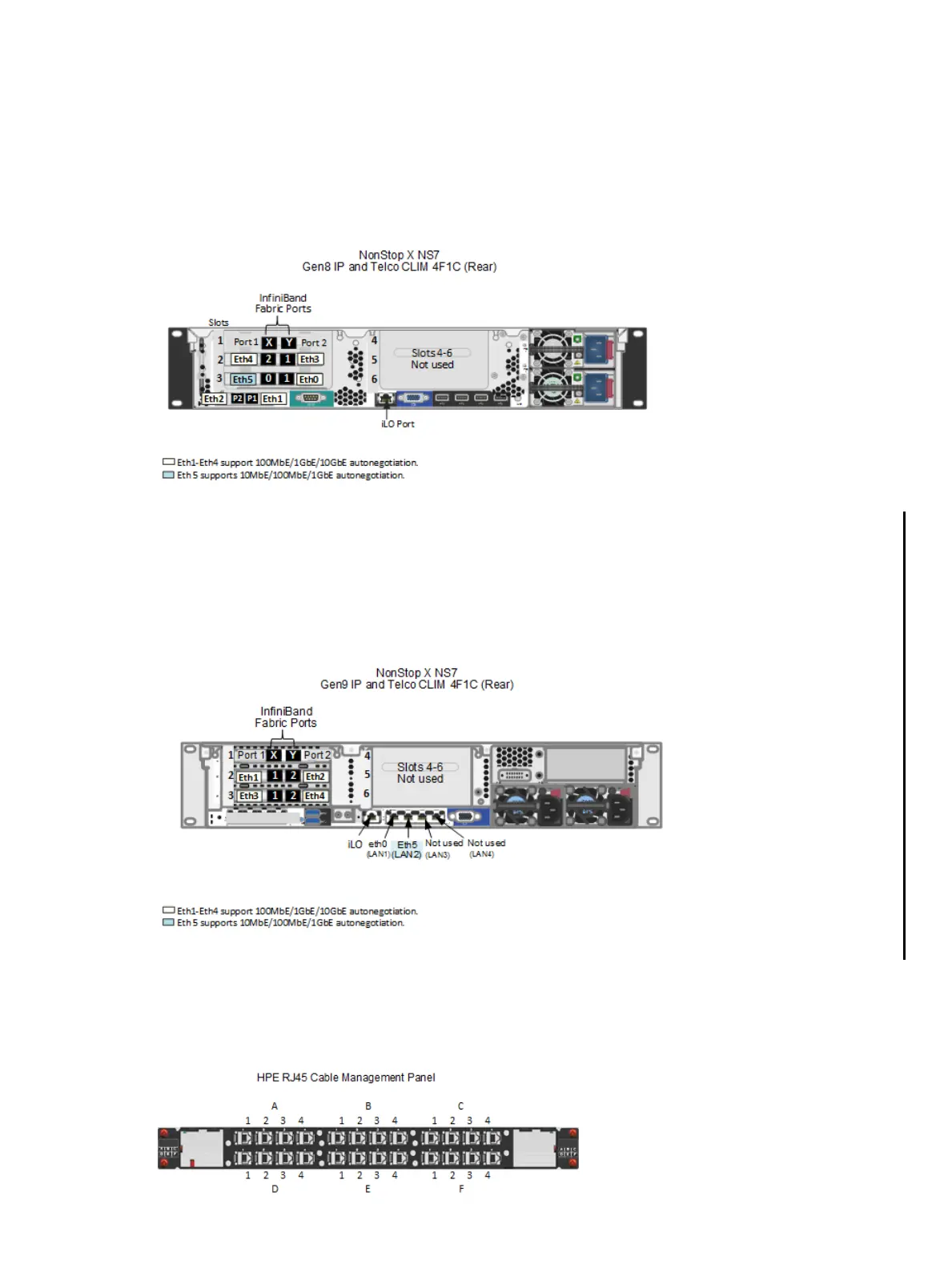

Characteristics of Gen8 IP or Telco CLIMInterface
InfiniBand interface card which provides the IB fabric connectionsSlot 1
10GbE 2-port adapter for Eth4 and Eth3 customer portsSlot 2
1GbE 2-port adapter for Eth5 customer port and Eth0 for maintenance support.Slot 3
10GbE 2-port adapter for Eth2 and Eth1 customer portsFlexLOM
Characteristics of Gen9 IP or Telco CLIMInterface
InfiniBand interface card which provides the IB fabric connectionsSlot 1
10GbE 2-port adapter for Eth1 and Eth2 customer portsSlot 2
10GbE 2-port adapter for Eth3 and Eth4 customer portsSlot 3
1GbE 2-port adapter for Eth5 customer port and Eth0 for maintenance supportFlexLOM
CLIM Cable Management Patch Panels
The HPE CLIM uses two Cable Management patch panels for RJ45 and LC (optical) connections.
The RJ45 patch panel is shown below. Both are preinstalled in new systems. For more information,
refer your service provider to the CLuster I/O (CLIM) Installation and Configuration Guide (15.02+).
