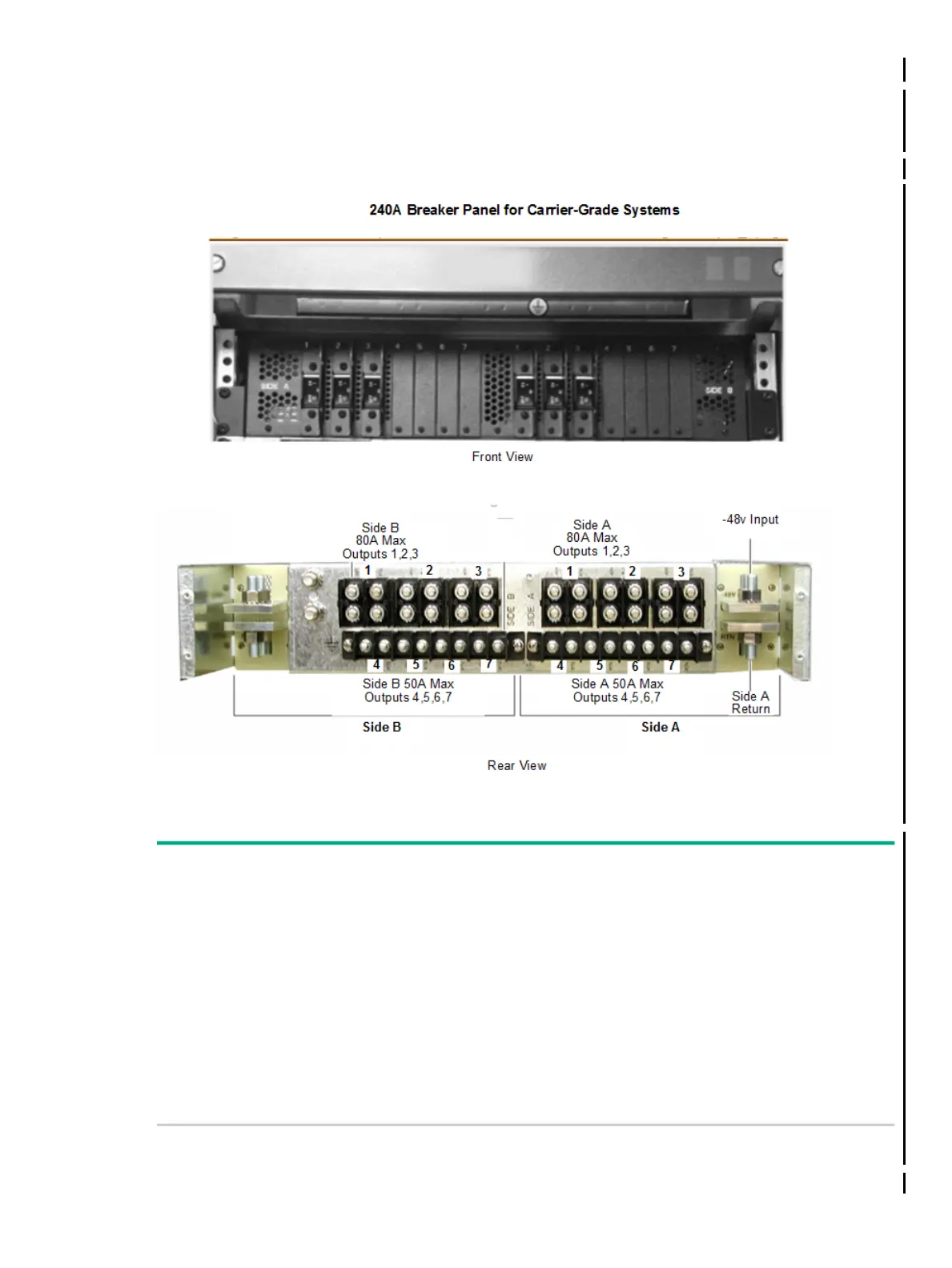

HPE NonStop 240A Breaker Panel
The dual-input, 240A breaker panel always occupies the top 2U of the rack and has 14 outputs
(7 outputs per rail). The breaker panel has two sides: A and B, which are electrically independent.
Power cabling is accessed from the rear of the rack.
You must order the breakers for all products, except the c7000 enclosure.
Breaker Panel Power Specifications for NS7 CG
3 (maximum 80A rating) outputs per rail connect to a single c7000 CG enclosure
If the c7000 CG is not connected, outputs 1-3 can be used for components with smaller breakers such as a CLIM
(15A), SAS disk enclosure (30A), alarm panel (2A)
4 (maximum 50A rating) outputs per power rail connect to other CG components
CAUTION: Outputs 4-7 are not rated for 80A breakers. Do not install 80A breakers in these outputs
Maximum 240A output load
Nominal input voltage -48/-60 VDC
Operating input voltage -36VDC to -72VDC
Maximum 240A input rating with two inputs
Appropriate site branch circuit protection for maximum total load rating
More information
“DC Power Distribution for NS7 CG Systems” (page 70)
NS7 CG X2 Standard and Optional Hardware 67
