HP Intelligent Power Distribution Unit - Core Unit components

Component identification and operation 12

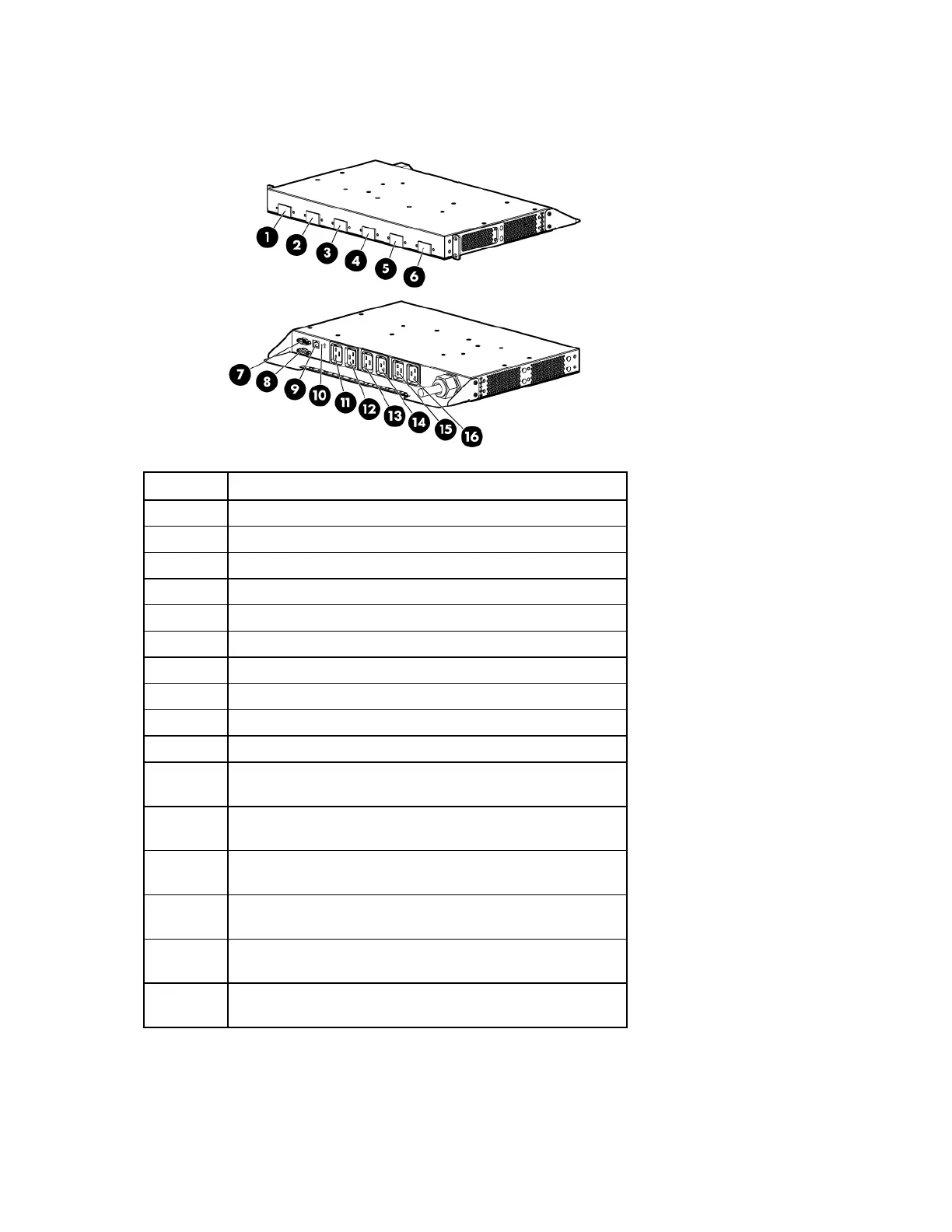

Core Unit components
Callout Description
1 Circuit breaker for load segment 1 (phase A if 3 phase model)
2 Circuit breaker for load segment 2 (phase B if 3 phase model)
3 Circuit breaker for load segment 3 (phase C if 3 phase model)
4 Circuit breaker for load segment 4 (phase A if 3 phase model)
5 Circuit breaker for load segment 5 (phase B if 3 phase model)
6 Circuit breaker for load segment 6 (phase C if 3 phase model)
7 Serial connector for additional iPDU connection
8 Serial connector for Display Unit connection
9 Network connector
10 Reset button*
11 IEC-320 C19 outlet for load equipment power or Extension
Bar attachment (load segment 6, phase C if 3 phase model)
12 IEC-320 C19 outlet for load equipment power or Extension
Bar attachment (load segment 5, phase B if 3 phase model)
13 IEC-320 C19 outlet for load equipment power or Extension
Bar attachment (load segment 4, phase A if 3 phase model)
14 IEC-320 C19 outlet for load equipment power or Extension
Bar attachment (load segment 3, phase C if 3 phase model)
15 IEC-320 C19 outlet for load equipment power or Extension
Bar attachment (load segment 2, phase B if 3 phase model)
16 IEC-320 C19 outlet for load equipment power or Extension
Bar attachment (load segment 1, phase A if 3 phase model)
*When you press the Reset button, power to the outlets is maintained. Management functionality is momentarily lost
while the components reset.
