HP Intelligent PDU web interface 54
For more information about redundant PDU communication, see "Configuring redundancy management
(on page 72)."

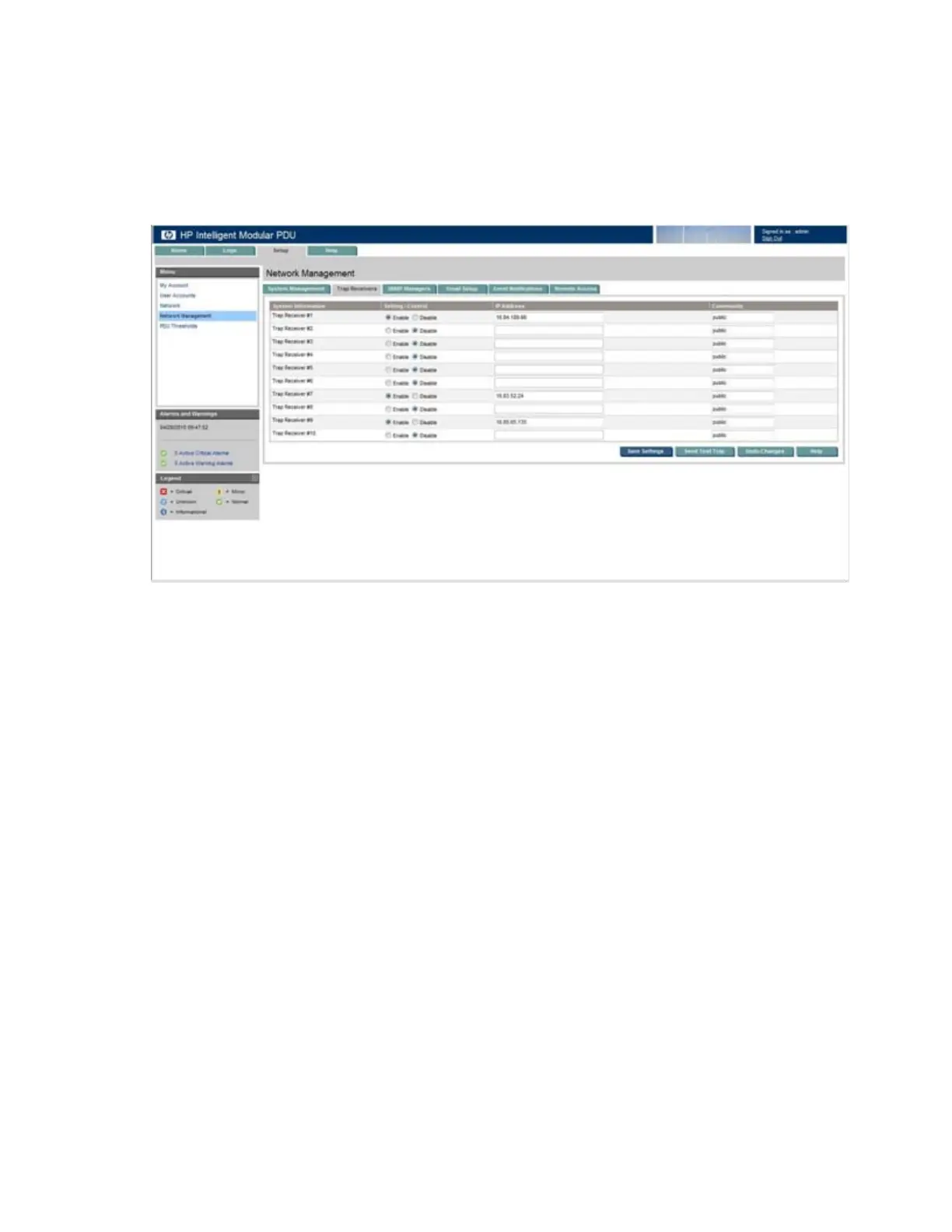

Trap Receivers tab
This screen contains controls that enable administrators to enter information for servers that receive SNMP
traps from the iPDU.
To configure which servers receive traps:
1. Enable SNMP traps for up to 10 servers.
2. Enter the IP address for up to 10 trap recipients in the IP Address field.
3. Enter the community string for each trap recipient.
4. Do one of the following:
o Click Save Settings to save the information.
o Click Undo Changes to undo the changes.
o Click Help to view online help.
5. Click Send Test Trap to send a test SNMP trap. At least one Trap Receiver must be configured and
enabled to send a test trap.
