Front panel components 13
2Components
Front panel components
HP MSA 2040 models support small form factor (SFF) and large form factor (LFF) enclosures. The SFF
chassis, configured with 24 2.5" SFF disks, is used as a controller enclosure. The LFF chassis, configured
with 12 3.5" LFF disks, is used as either a controller enclosure or a drive enclosure.
Supported drive enclosures, used for adding storage, are available in LFF or SFF chassis. The MSA 2040
6 Gb 3.5" 12-drive enclosure is the large form factor drive enclosure used for storage expansion. The HP
D2700 6 Gb enclosure, configured with 25 2.5" SFF disks, is the small form factor drive enclosure used for
storage expansion. See "SFF drive enclosure" (page 17) for a description of the D2700.
MSA 2040 Array SFF enclosure

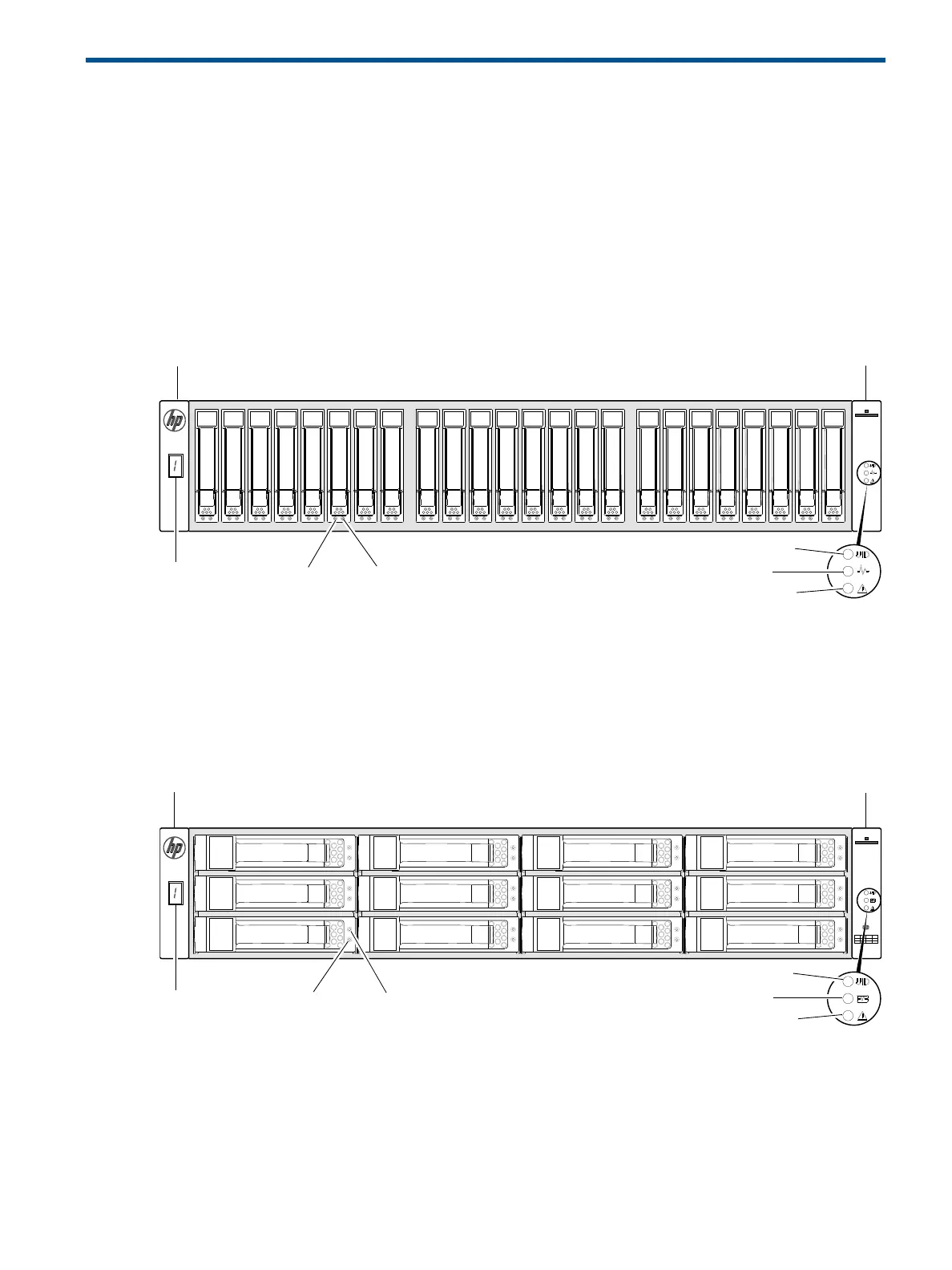

Figure 1 MSA 2040 Array SFF enclosure: front panel
MSA 2040 Array LFF or supported drive expansion enclosure
Figure 2 MSA 2040 Array LFF or supported 12-drive enclosure: front panel
1 Enclosure ID LED
2 Disk drive Online/Activity LED
3 Disk drive Fault/UID LED
4 Unit Identification (UID) LED
5 Heartbeat LED
6 Fault ID LED
1
32
4
5
6
12345678 9101112131415161718192021222324
Note: Integers on disks indicate drive slot numbering sequence.
1 Enclosure ID LED
2 Disk drive Online/Activity LED
3 Disk drive Fault/UID LED
4 Unit Identification (UID) LED
5 Heartbeat LED
6 Fault ID LED
1
4
7
10
3
6
9
12
132
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
Note: Integers on disks indicate drive slot numbering sequence.
Left ear
Right ear
Left ear Right ear
