HP OmniBook XE2 Removal and Replacement 2-5
3. Release the two latches at the sides of the RAM module by pushing them gently outward, away
from the sides of the module. The free edge of the module pops up.
4. Pull the module out of the connector. Handle it only by the edges.

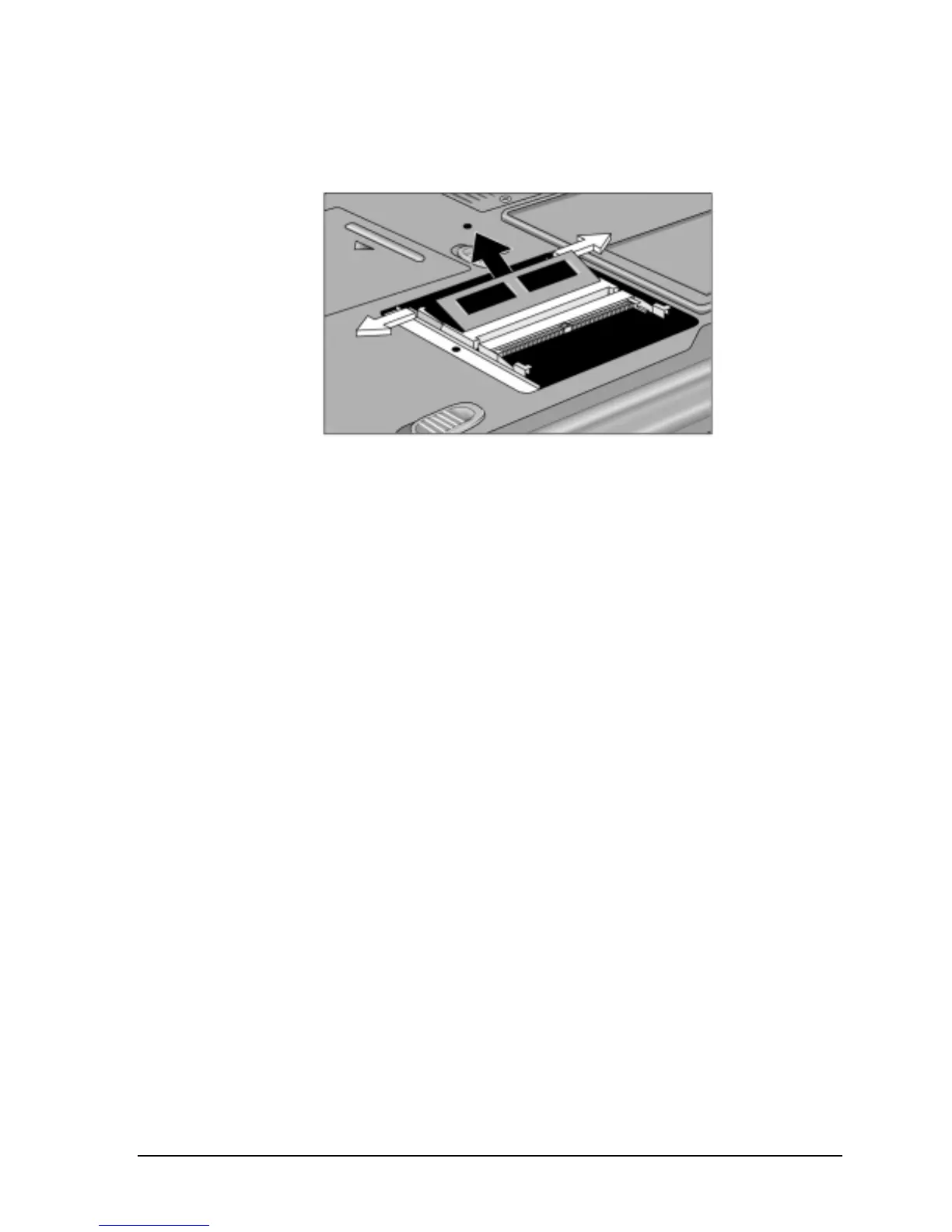

Figure 2-3. Releasing the RAM Module Latches
Reassembly Notes
• Insert the RAM board into the connector at about a 30° angle until it is fully inserted. Then press
down at both sides until both latches snap closed.
