Separate screws from PCBA board
8) Take out power board and IF board, and then disconnect the terminals
.
Separate PCBA from chassis
Power board
The power board part number is 790**1400***H01*.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 14.
Remove the power board:
1) The power board connector position is as follows:

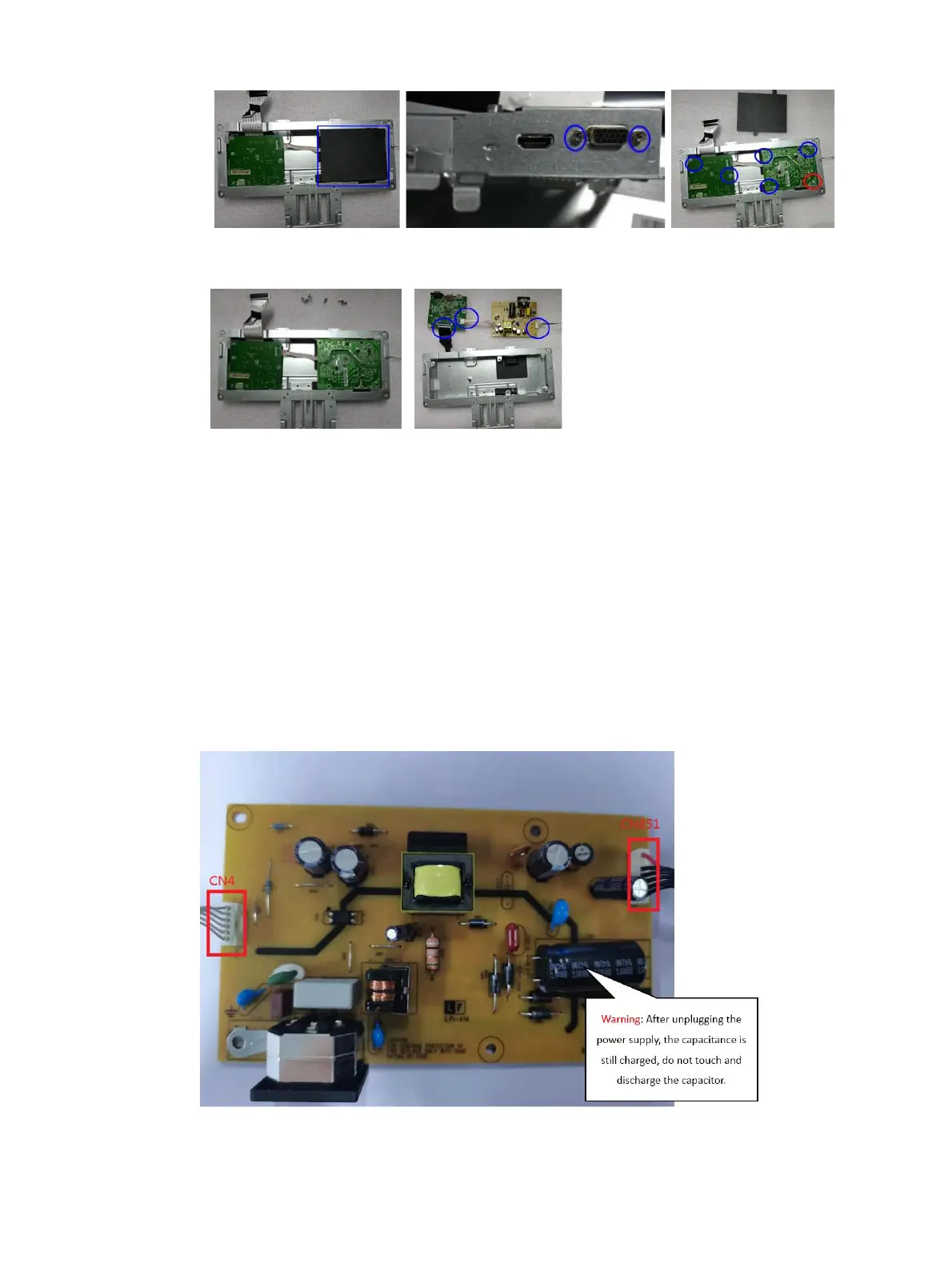

Power Board location showing of connector
CN4 Foxconn P/N: 3406BA900-39U-H
CN851 Foxconn P/N: 3406BA900-39U-H
