The connectors identifiers are as follows:
Connector
Location
HDMI Port
CN301
VGA Port
CN201

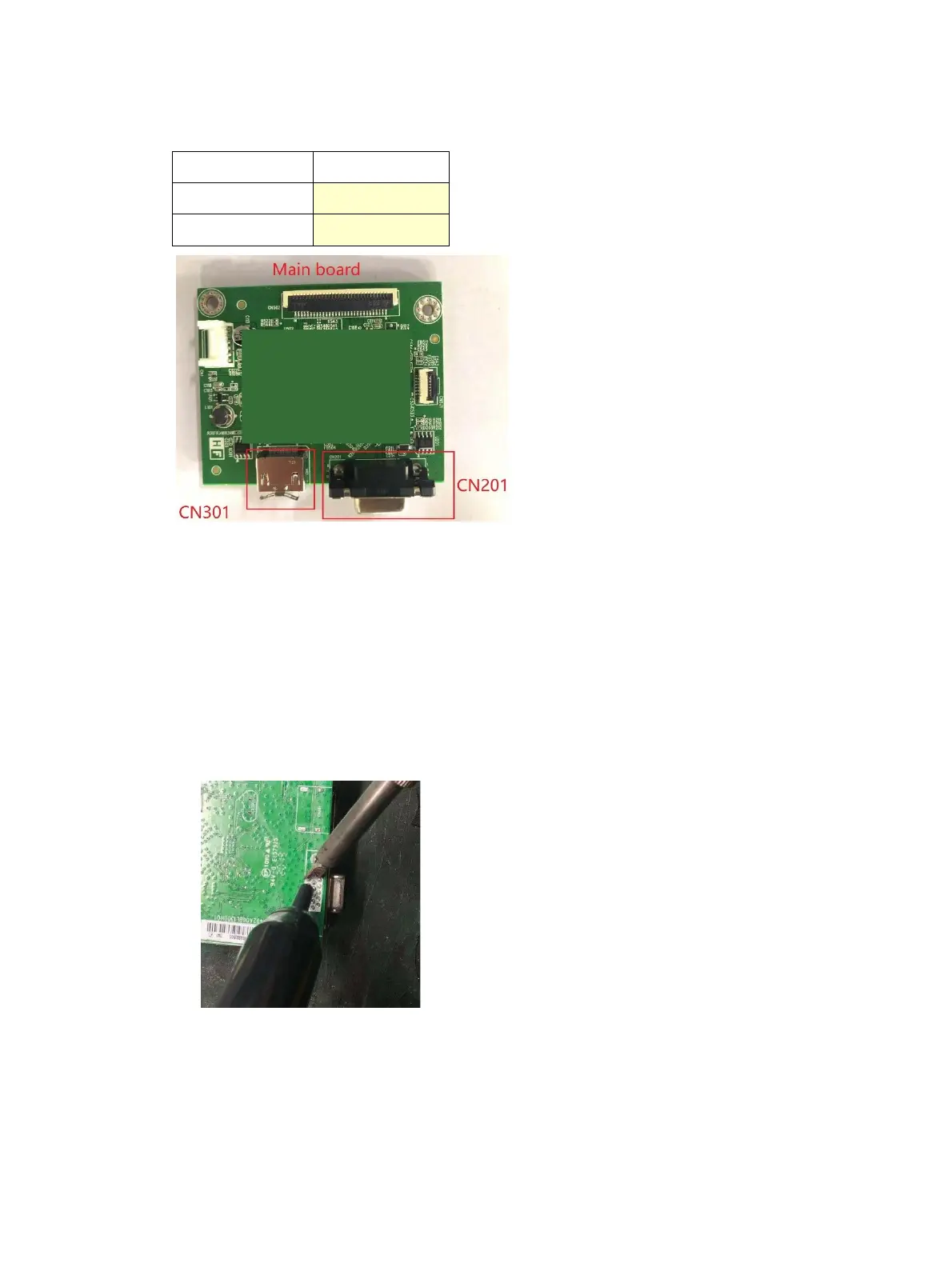

Connector location of Mainboard
Before repairing connectors, follow these steps:
Prepare the monitor for disassembly. See Preparation for disassembly on page 14.
VGA connector CN201
Repair the VGA connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the CN201 out of the through holes.
Take off VGA connector
2) Lift the CN201 connector from the PCB.
3) Place the new component on the circuit board. Be sure that it matches the footprint.
4) Solder the new component.
