HDMI connector CN301

Repair the HDMI connector:

1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently

push down with the soldering iron once everything is molten to move the CN301 out of the through holes.

Take off HDMI connector

2) Lift the CN301 connector from the PCB.

3) Place the new component on the PCB. Be sure that it matches the PCB footprint.

4) Solder the new component.

V19

The connectors identifiers are as follows:

Connector

Location

VGA Port

CN201

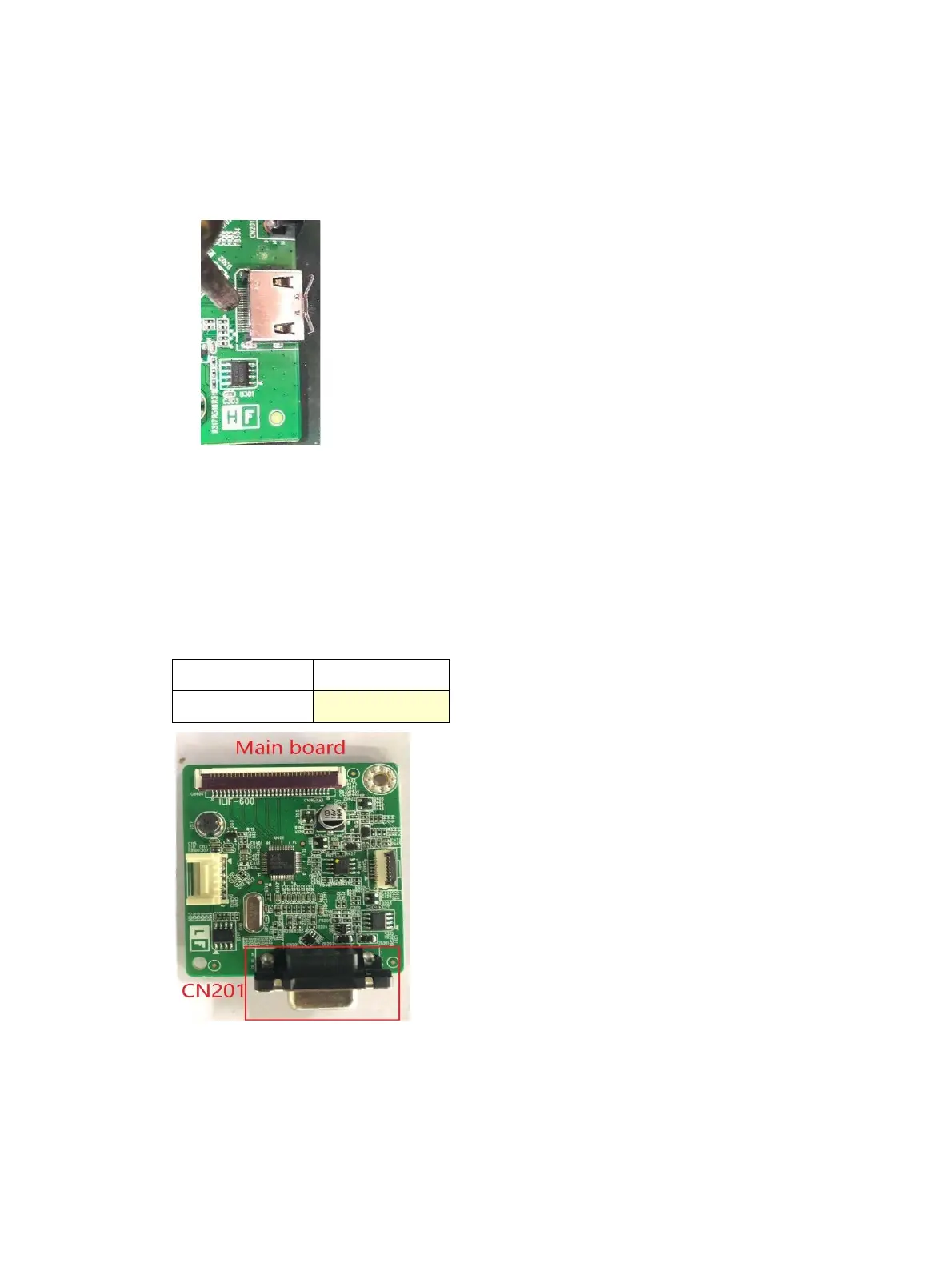

Connector location of Mainboard

Before repairing connectors, follow these steps:

▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 14.
