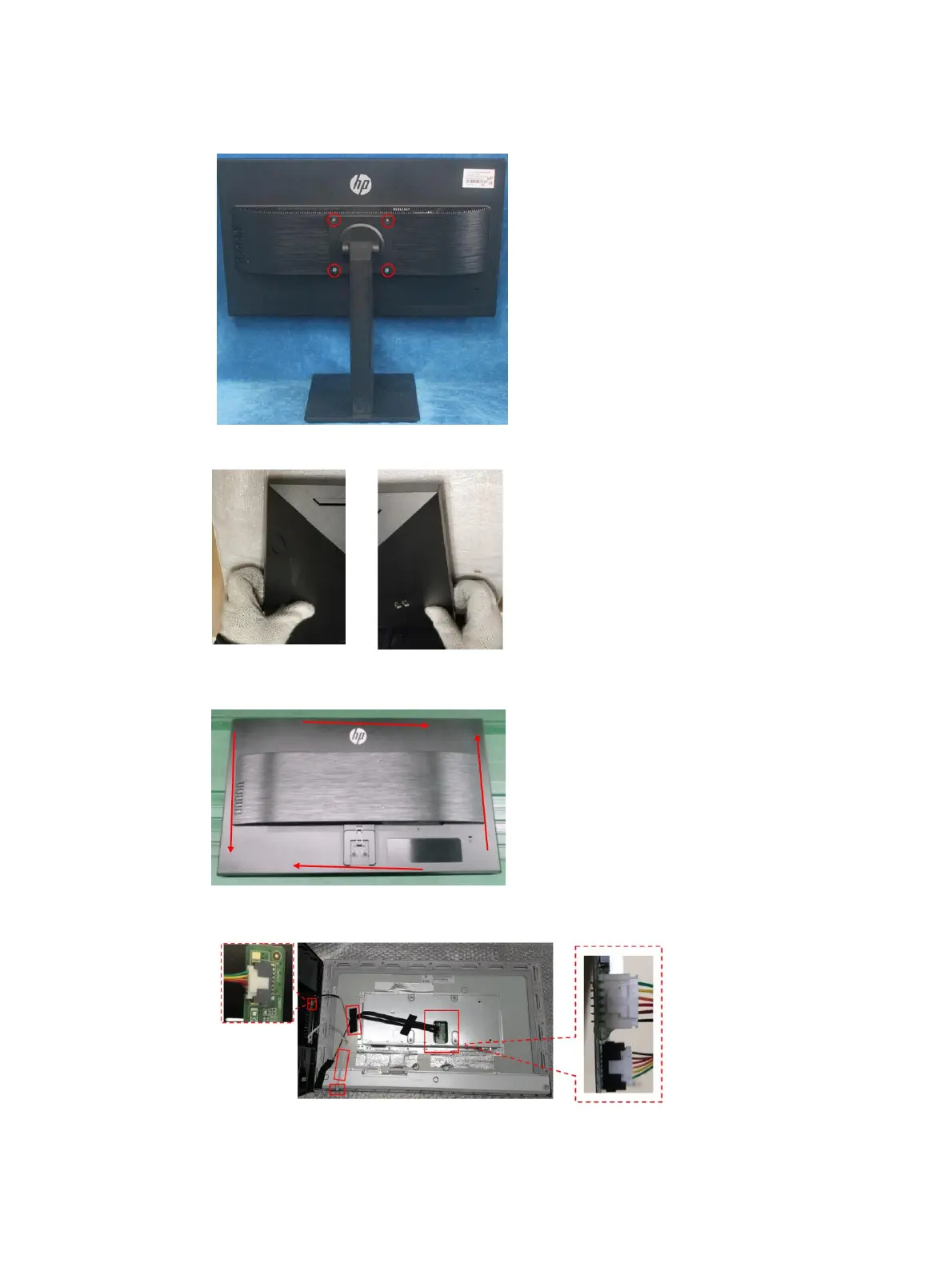

Remove the Rear Cover:

1) Remove four screw from the rear case.

2) Use your fingers to split the left and right sides apart between the middle frame and rear case.

3) Insert the scraper bar tool into the gap between the middle frame and rear case, and then rotate.

The hook opens. Repeat the steps.

4) Lift the rear cover and remove the key board wire and light bar wire from the interface-board.

5) Disassemble the Key board from the Rear cover and LED board from the middle frame. (if

required).

Questions and Answers:

Need help?

Do you have a question about the HP P24q G4 and is the answer not in the manual?

HP P24q G4 Specifications

General

Color gamut	72 %
Pixel pitch	0.205 x 0.205 mm
Screen shape	Flat
Pixel density	123 ppi
Display diagonal	23.8 \
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz
Display number of colors	-
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440
Certification	BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; ICES; ISO 9241-307; NOM; S-Mark; TUV Bauart; Ukraine Energy label; California Energy Commission (CEC); EC1062; UAE; ErP LOT5
Product color	Black
Market positioning	Business
HDMI	Yes
HDMI version	1.4
DisplayPorts quantity	0
Pivot angle	0 - 90 °
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	211.6 mm
Package width	540.6 mm
Package height	463.3 mm
Package weight	5590 g
AC input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	26 W
Cables included	AC, HDMI
Harmonized System (HS) code	85285210
