HP P24q G4 User Manual

10
4 Removal and replacement procedures
Adherence to these procedures and precautions is essential for proper service.
Preparation for disassembly
Use this information to properly prepare to disassemble and reassemble the monitor.
1) Read the “Important safety information” and “Important service information and precautions”
sections in the “Getting started” chapter of this guide.
2) Clean the room for disassembly.
3) Identify the disassembly area.
4) Check the position that the monitors are to be placed along with the number of monitors. Prepare
the area for material flow according to the disassembly layout.
5) Be sure to have the following equipment and materials:
 Press fixture
 Working table
 Screwdriver
 Knife
 Gloves
 Cleaning cloth
 ESD protection

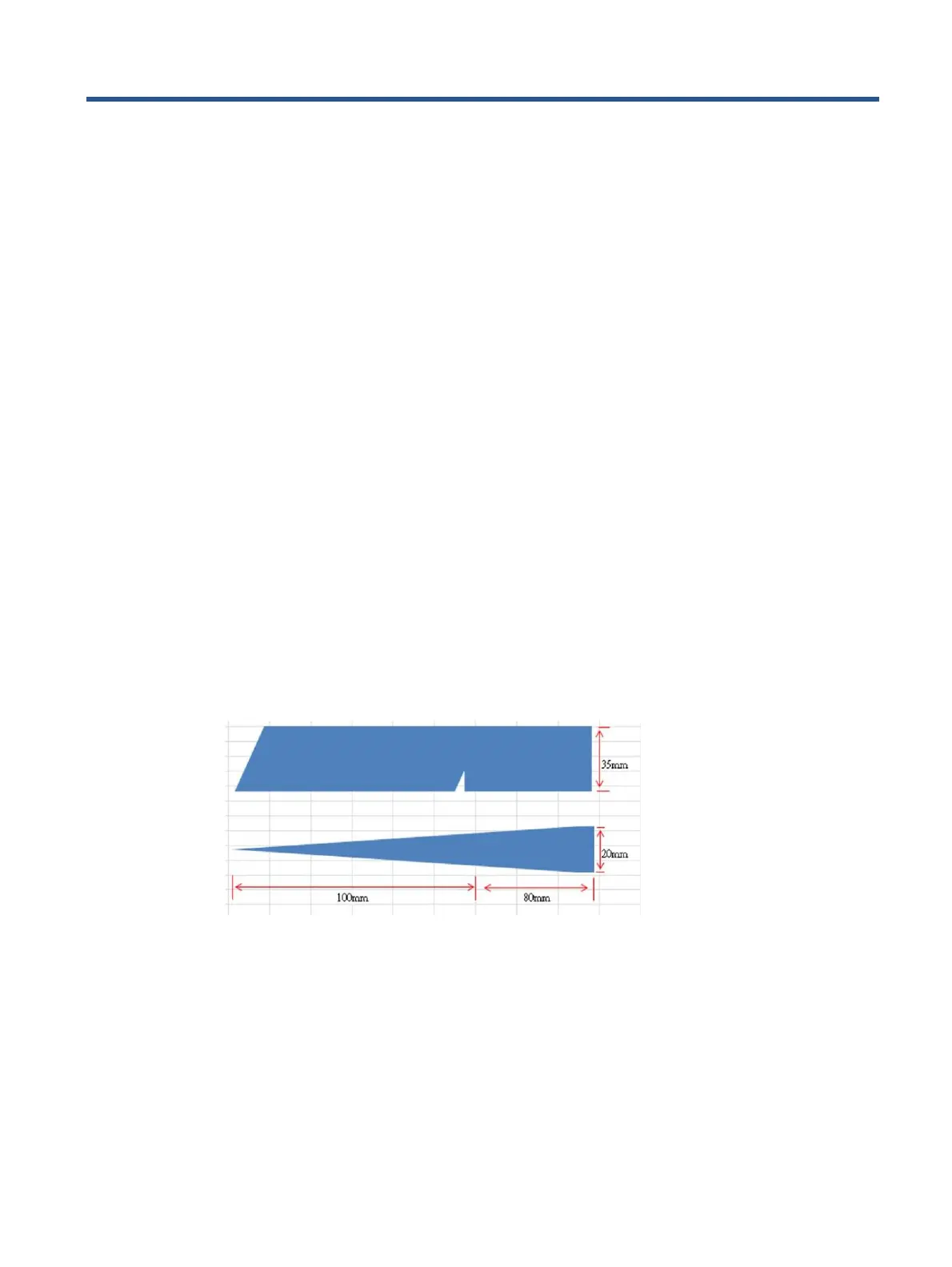

 Scraper bar in the following dimensions:
Rear Cover
Before removing the Rear Cover, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 10.

HP P24q G4 Specifications

General

Color gamut	72 %
Pixel pitch	0.205 x 0.205 mm
Screen shape	Flat
Pixel density	123 ppi
Display diagonal	23.8 \
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz
Display number of colors	-
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440
Certification	BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; ICES; ISO 9241-307; NOM; S-Mark; TUV Bauart; Ukraine Energy label; California Energy Commission (CEC); EC1062; UAE; ErP LOT5
Product color	Black
Market positioning	Business
HDMI	Yes
HDMI version	1.4
DisplayPorts quantity	0
Pivot angle	0 - 90 °
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	211.6 mm
Package width	540.6 mm
Package height	463.3 mm
Package weight	5590 g
AC input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	26 W
Cables included	AC, HDMI
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (without stand)	46.9 mm
Height (without stand)	322.5 mm
