3) Lift the CN503 connector from the circuit board.

4) Place the new component on the circuit board. Be sure that it matches the footprint.

5) Solder the new component.

D-SUB connector CN101

Repair the DP connector:

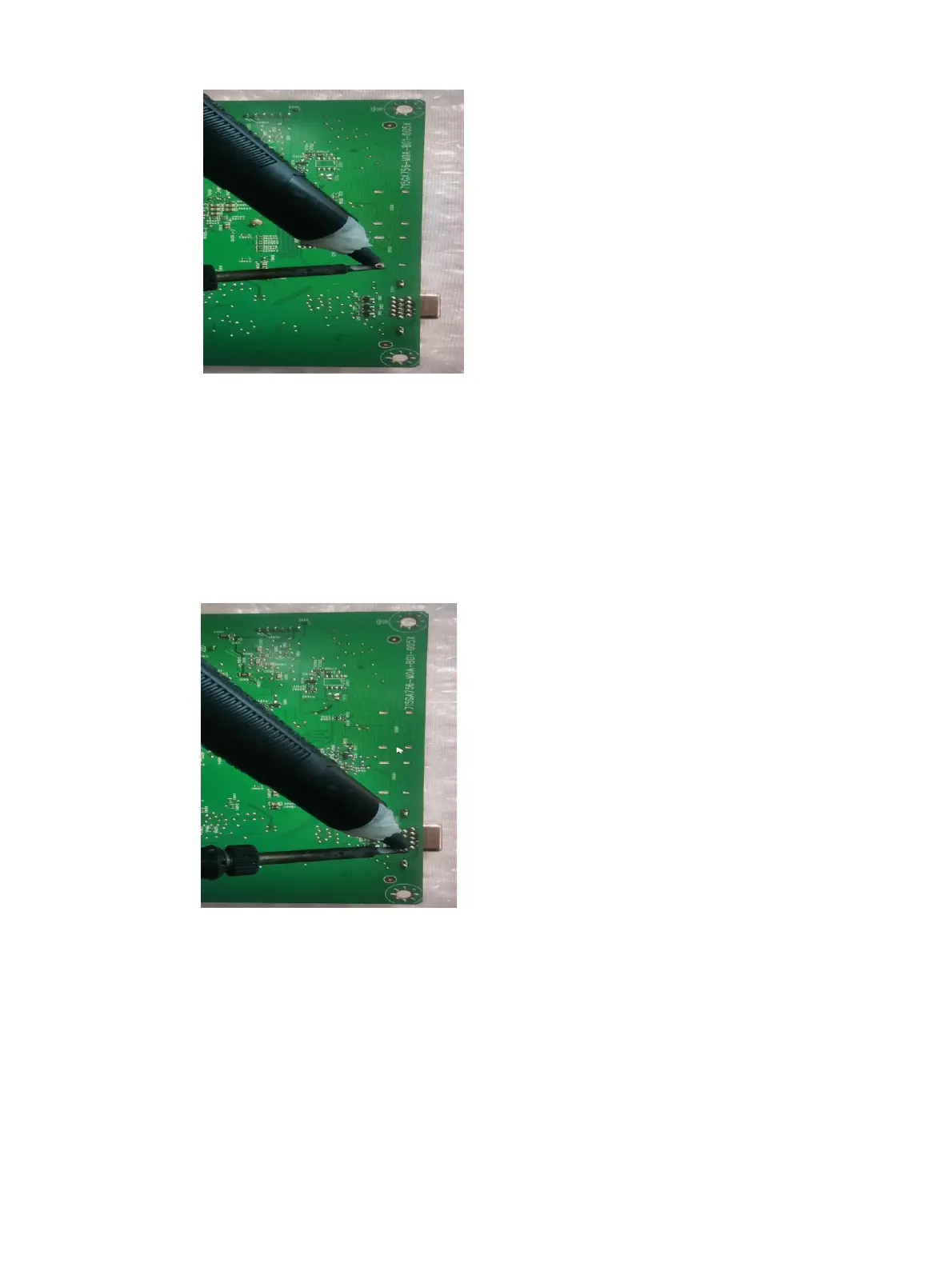

1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.

2) Lift the CN101 connector from the circuit board.

3) Place the new component on the circuit board. Be sure that it matches the footprint.

4) Solder the new component.

Questions and Answers:

Need help?

Do you have a question about the HP P24q G4 and is the answer not in the manual?

HP P24q G4 Specifications

General

Color gamut	72 %
Pixel pitch	0.205 x 0.205 mm
Screen shape	Flat
Pixel density	123 ppi
Display diagonal	23.8 \
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz
Display number of colors	-
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440
Certification	BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; ICES; ISO 9241-307; NOM; S-Mark; TUV Bauart; Ukraine Energy label; California Energy Commission (CEC); EC1062; UAE; ErP LOT5
Product color	Black
Market positioning	Business
HDMI	Yes
HDMI version	1.4
DisplayPorts quantity	0
Pivot angle	0 - 90 °
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	211.6 mm
Package width	540.6 mm
Package height	463.3 mm
Package weight	5590 g
AC input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	26 W
Cables included	AC, HDMI
Harmonized System (HS) code	85285210
