6) Remove 3 screws from the bracket.
7) Disassemble 5 screws from the board.
8) Disassemble all the boards from housing
Power board
The power board part number is ADPCJ1903AA2.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 10.
Remove the power board:

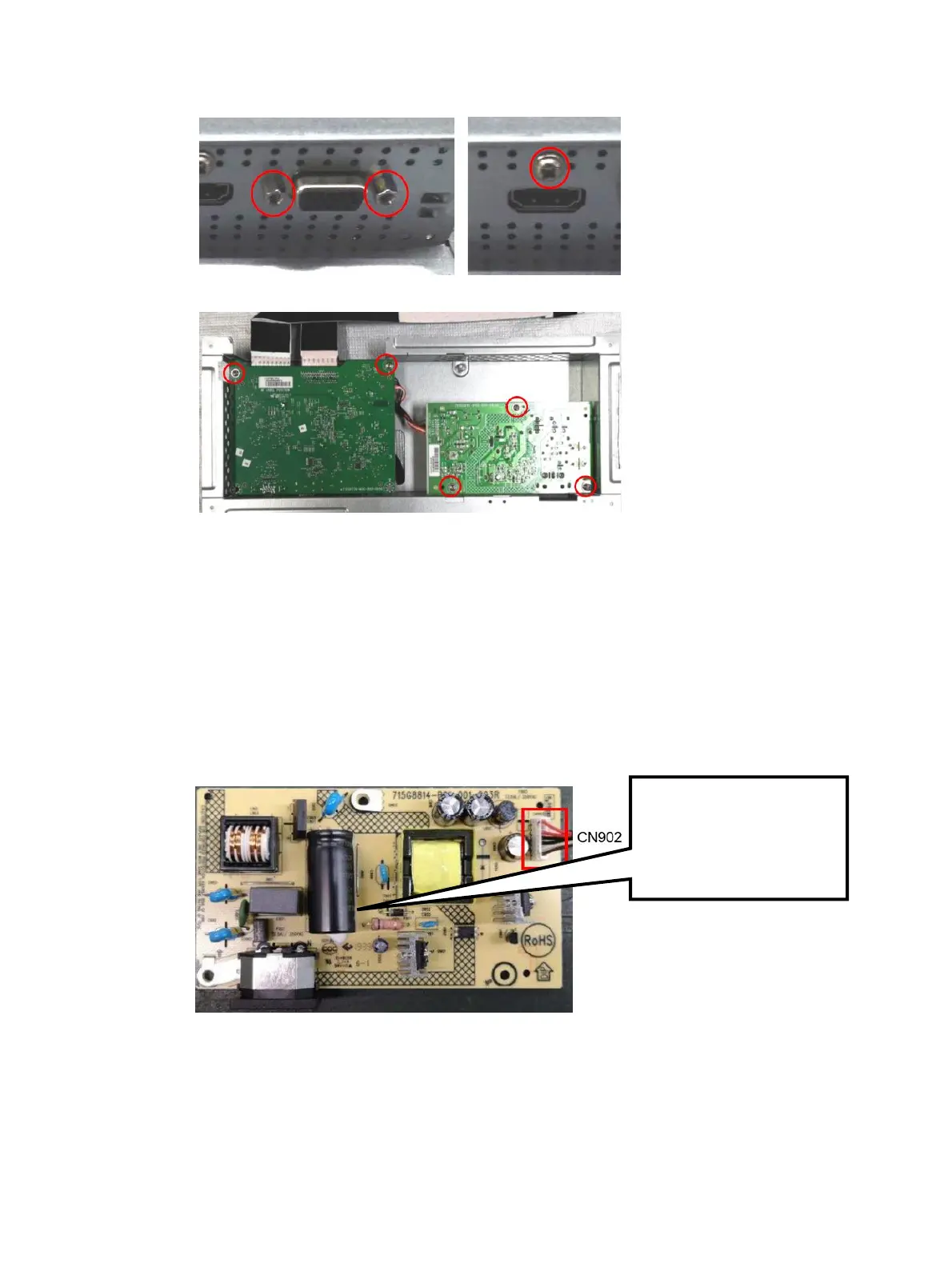

1) The HP P24q G4 power board connector position is as follows:
2) Locate the part number location on the board.
Warning: After unplugging
the power supply, the
capacitance is still
charged, do not touch and
discharge the capacitor.

HP P24q G4 Specifications

General

Color gamut	72 %
Pixel pitch	0.205 x 0.205 mm
Screen shape	Flat
Pixel density	123 ppi
Display diagonal	23.8 \
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz
Display number of colors	-
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440
Certification	BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; ICES; ISO 9241-307; NOM; S-Mark; TUV Bauart; Ukraine Energy label; California Energy Commission (CEC); EC1062; UAE; ErP LOT5
Product color	Black
Market positioning	Business
HDMI	Yes
HDMI version	1.4
DisplayPorts quantity	0
Pivot angle	0 - 90 °
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	211.6 mm
Package width	540.6 mm
Package height	463.3 mm
Package weight	5590 g
AC input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Power consumption (typical)	26 W
Cables included	AC, HDMI
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (without stand)	46.9 mm
Height (without stand)	322.5 mm
