Installing the Switch 2650

Installation Procedures

Installing the Switch 2650

2. Partially install a screw (5/8-inch number 12-24) into the top hole of a pair

of holes that are 0.5 inches apart in each rack/cabinet upright as shown

in the illustration below. Ensure that the screws are at the same level in

each upright.

3. Place the switch in the rack and lower it so the notches in the bottom of

the bracket slide onto the screws, then tighten these screws.

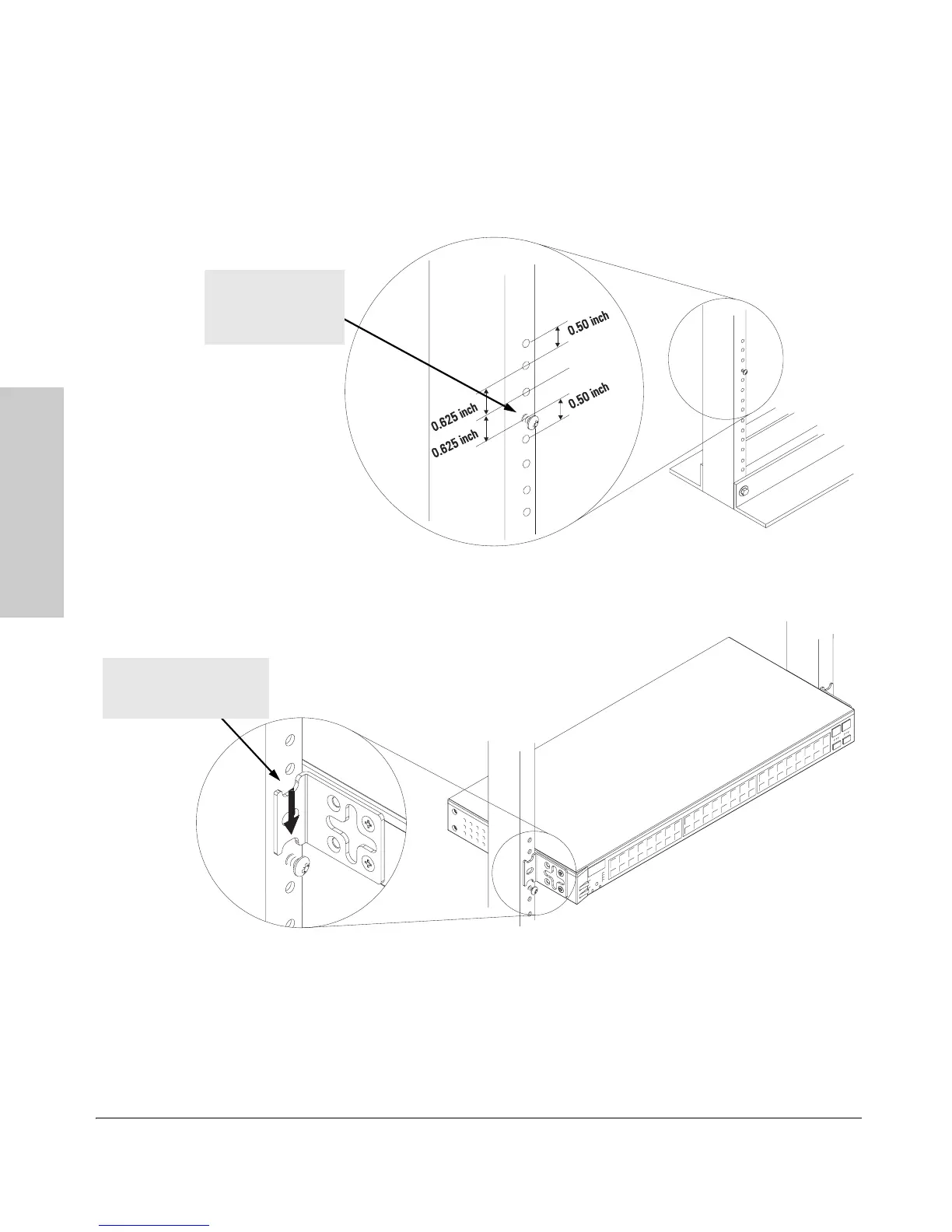

Partially install a screw

into the top hole of a

close (0.5-inch) pair on

both sides of the rack

Lower switch with mounting

brackets onto the partially

installed screw
