7-11
Monitoring and Analyzing Switch Operation
Address Table
Monitoring and Analyzing
Switch Operation
Address Table
To access the Address Table screen from the Main Menu, click on:
1. Status and Counters
5. Address Table

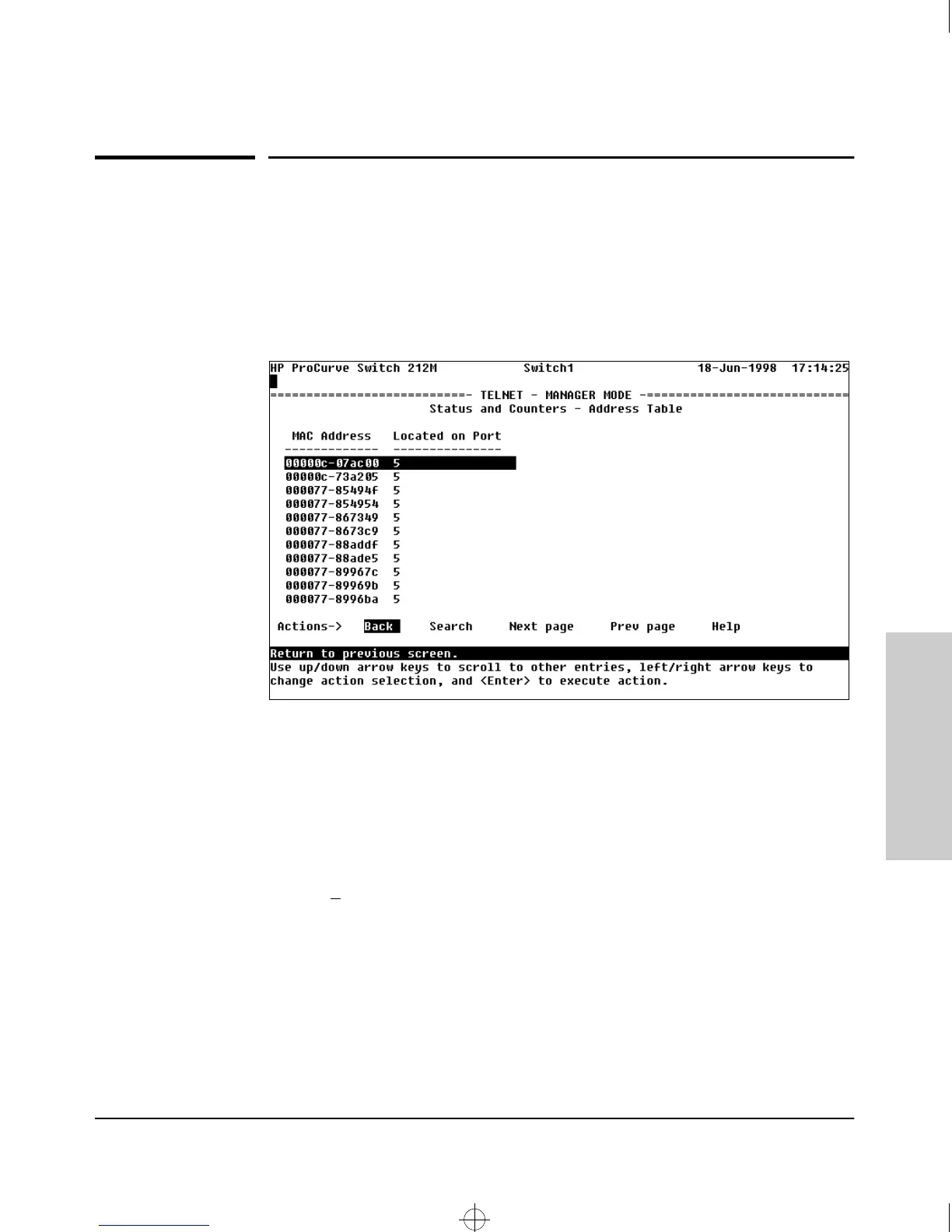

Figure 7-9. Example of the Address Table
This screen lets you determine which switch port is being used to communi-
cate with a specific device on the network. The listing includes:
■ The MAC addresses that the switch has learned from network devices
attached to the switch
■ The port on which each MAC address was learned
Use the S
earch action at the bottom of the screen to locate a specific device
(MAC address).
