Hard Drive LED indicators
The status of hard drives installed in the server is indicated by the online LED indicator located on the
HDD.

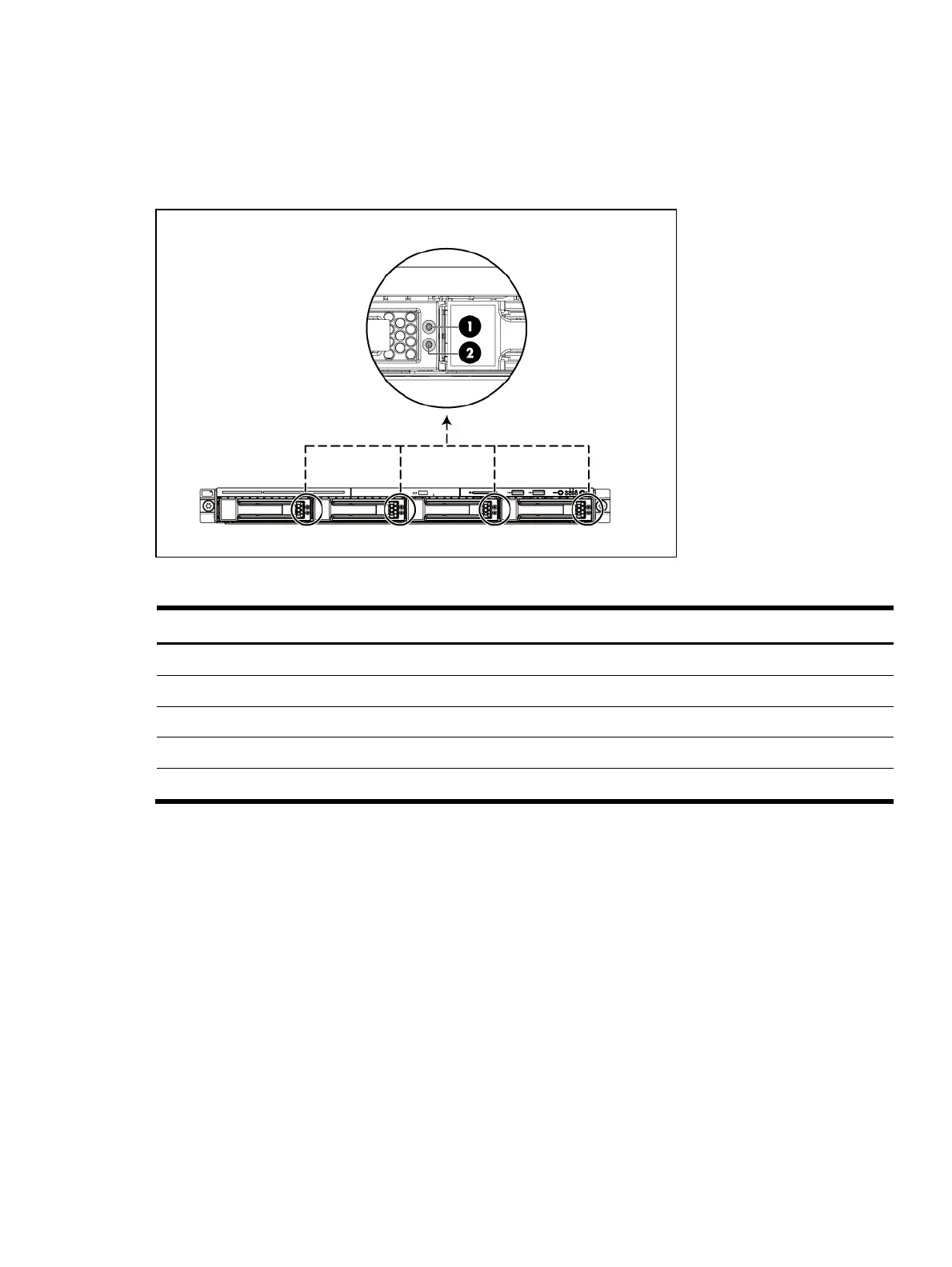

Figure 96
Hard Drive LED Indicator
Table 15
Hard Drive LED Indicator Status
Item LED indicator Status Description
1 Drive online/error LED indicator Steady blue The drive is located
Steady orange The drive is in a failed state.
Off The drive is not in a failed state.
2 Drive activity LED indicator Flashing green The drive is in an activity state.
Off The drive is not in an activity state.
