HP ProLiant DL165 G7 - Page 50

Removal and replacement procedures 50
Item Description
4 SATA connectors

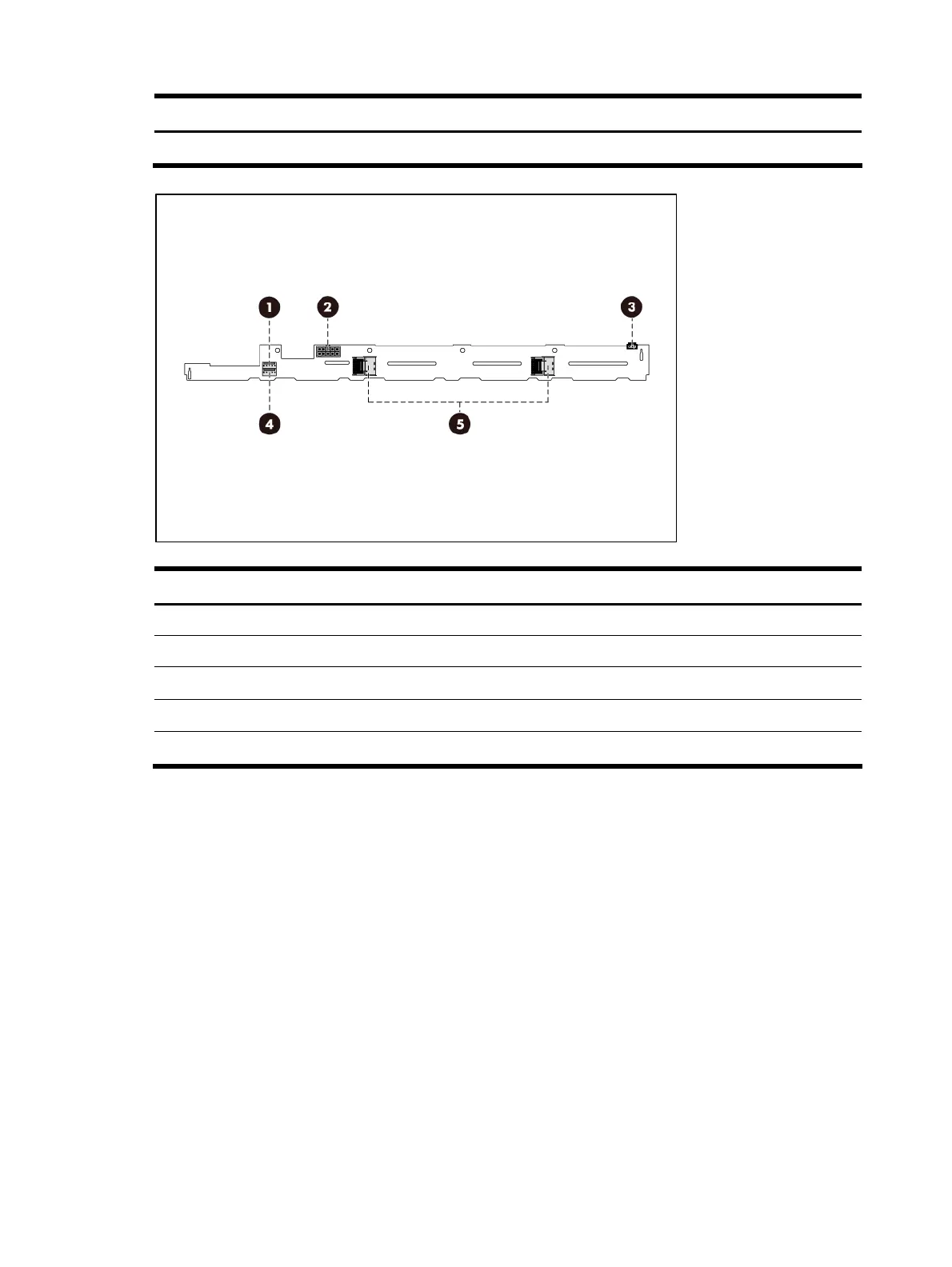

Figure 26 SAS Backplane Connectors / 8 2.5” SFF HDD Model (solder side)
Item Description
1 PIC 1 PROG connector
2 Power connector
3 I
2
C connector
4 PIC 2 PROG connector
5 Mini SAS connectors
