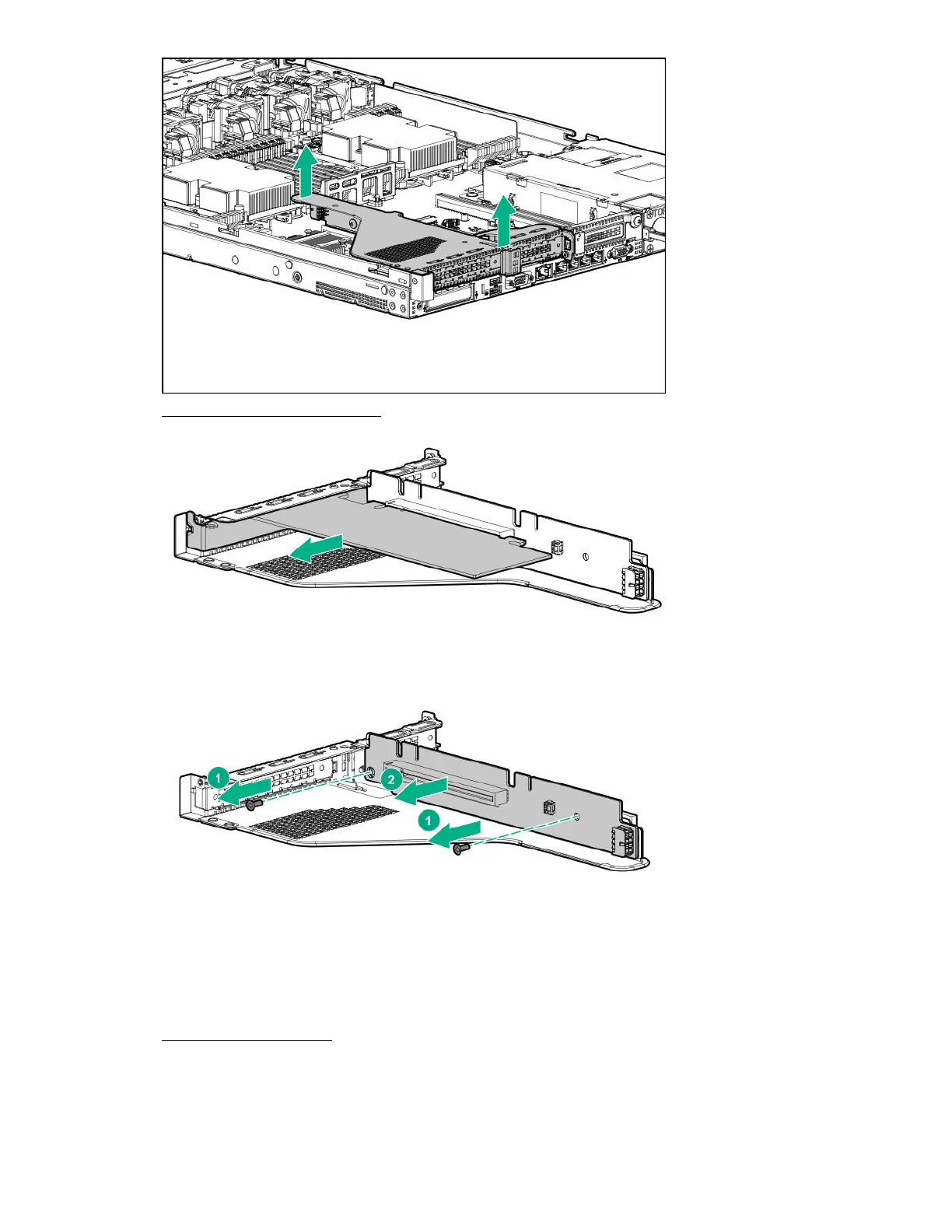

6. Remove all expansion boards.
7. Remove the riser.
Secondary risers are spared with the riser cage.
To replace the component, reverse the removal procedure.
Removing and replacing an expansion board
Procedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
Removing and replacing an expansion board 47
