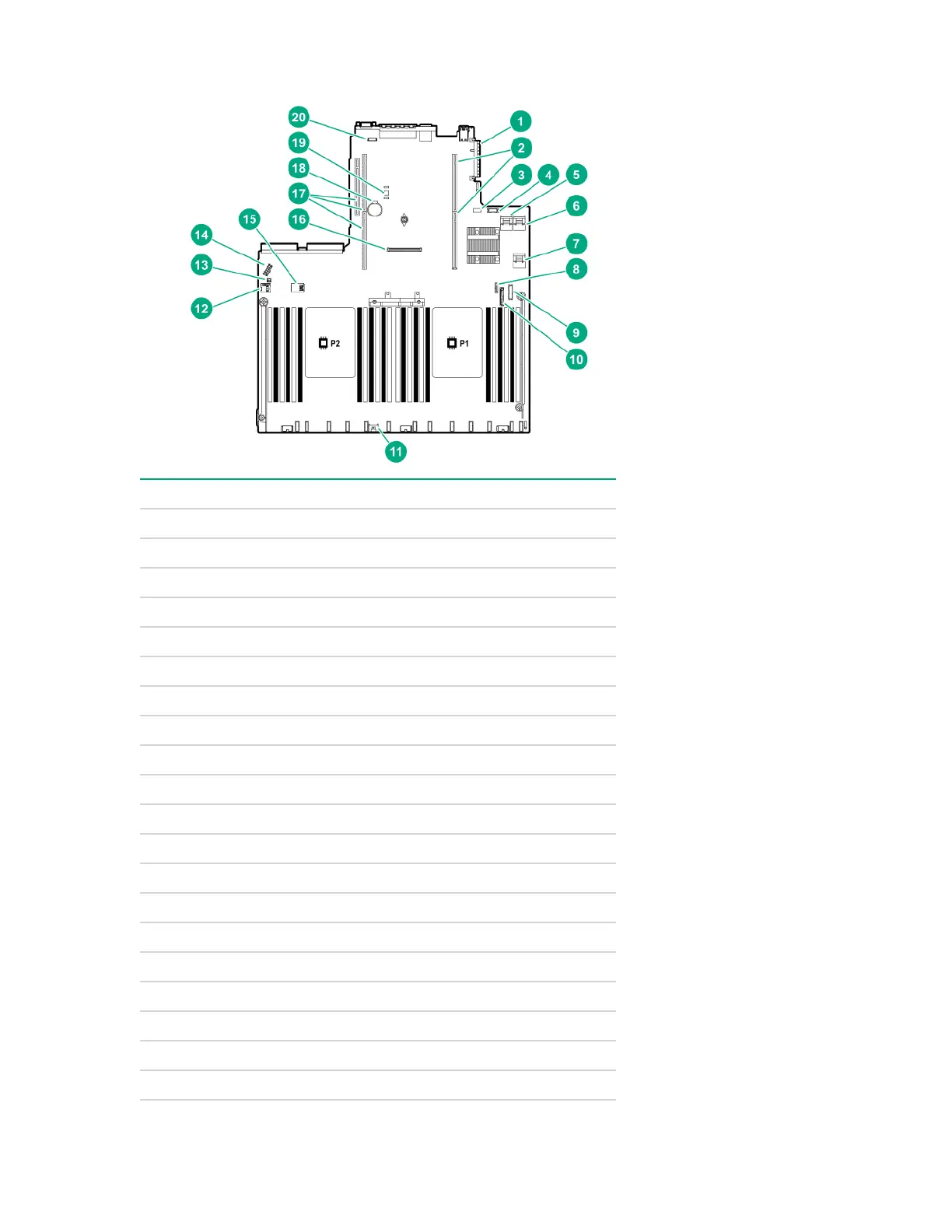

System board components
Item Description
1 FlexibleLOM connector
2 Primary (processor 1) PCIe riser connector
3 System maintenance switch
4 Front display port/USB 2.0 connector
5 x4 SATA port 1
6 x4 SATA port 2
7 x2 SATA port 3
8 x1 SATA port 4
9 Front power/USB 3.0 connector
10 Optical/SATA port 5
11 Smart Storage Battery connector
12 Micro SD card slot
13 Chassis Intrusion Detection connector
14 Drive backplane power connector
15 Dual internal USB 3.0 connector
16 Type-a SmartArray connector
17 Secondary (processor 2) PCIe riser connector
18 System battery
19 TPM connector (optional)
20 Serial port connector (optional)
System board components 89
