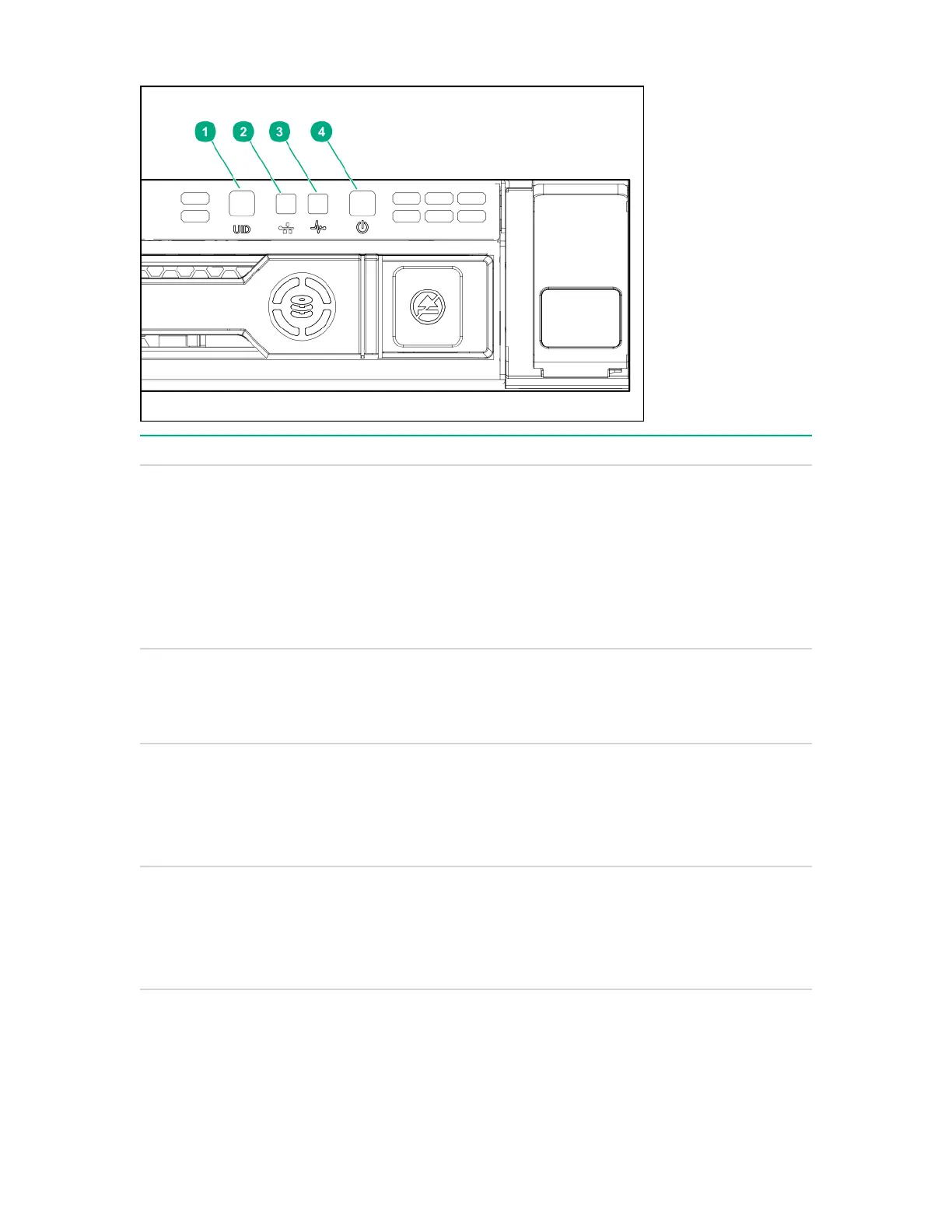

4LFF
Item Description Status
1 UID button/LED*
Solid blue = Activated
Flashing blue:
• 1 Hz = Remote management or firmware upgrade in
progress
• 4 Hz = iLO manual reboot sequence initiated
• 8 Hz = iLO manual reboot sequence in progress
Off = Deactivated
2 NIC status LED*
Solid green = Link to network
Flashing green = Network active
Off = No network activity
3 Health LED*
Solid green = Normal
Flashing green = iLO is rebooting
Flashing amber = System degraded
Flashing red = System critical**
4 Power On/Standby button and
system power LED*
Solid green = System on
Flashing green = Performing power on sequence
Solid amber = System in standby
Off = No power present†
*When all four LEDs described in this table flash simultaneously, a power fault has occurred.
**To identify components in a degraded or critical state, see the Systems Insight Display LEDs, check iLO/
BIOS logs, and reference the server troubleshooting guide.
Component identification 83
