Server Operations 41
4. Disconnect any internal or external cables connected to any existing
expansion boards.

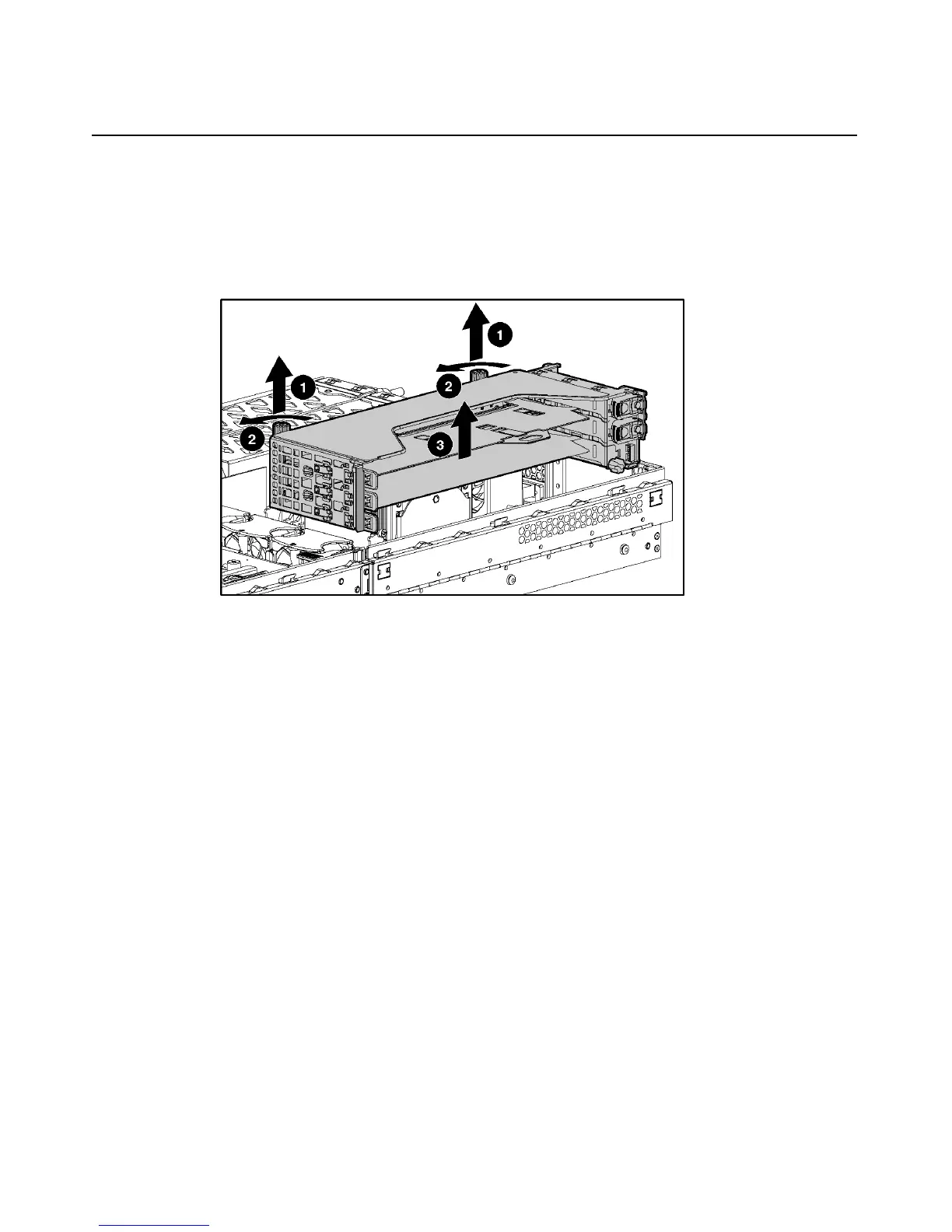

5. Lift the PCI riser cage thumbscrews (1) and turn them counter-clockwise (2).
6. Remove the PCI riser cage (3).
