• Extend the server from the rack (Extend the server from the rack on page 33).
• Remove the server from the rack (Removing the server from the rack on page 34).
5. Remove the access panel (Removing the access panel on page 35).
6. If installed, do the following:
a. Remove the air baffle (Removing and replacing the air baffle on page 39).
b. Remove the processor mezzanine tray (Removing and replacing the processor mezzanine tray on
page 43).
c. Remove the 2P pass-through performance board (Removing and replacing the 2P pass-through
performance board on page 48).
7. Disconnect any cables connected to the controller.

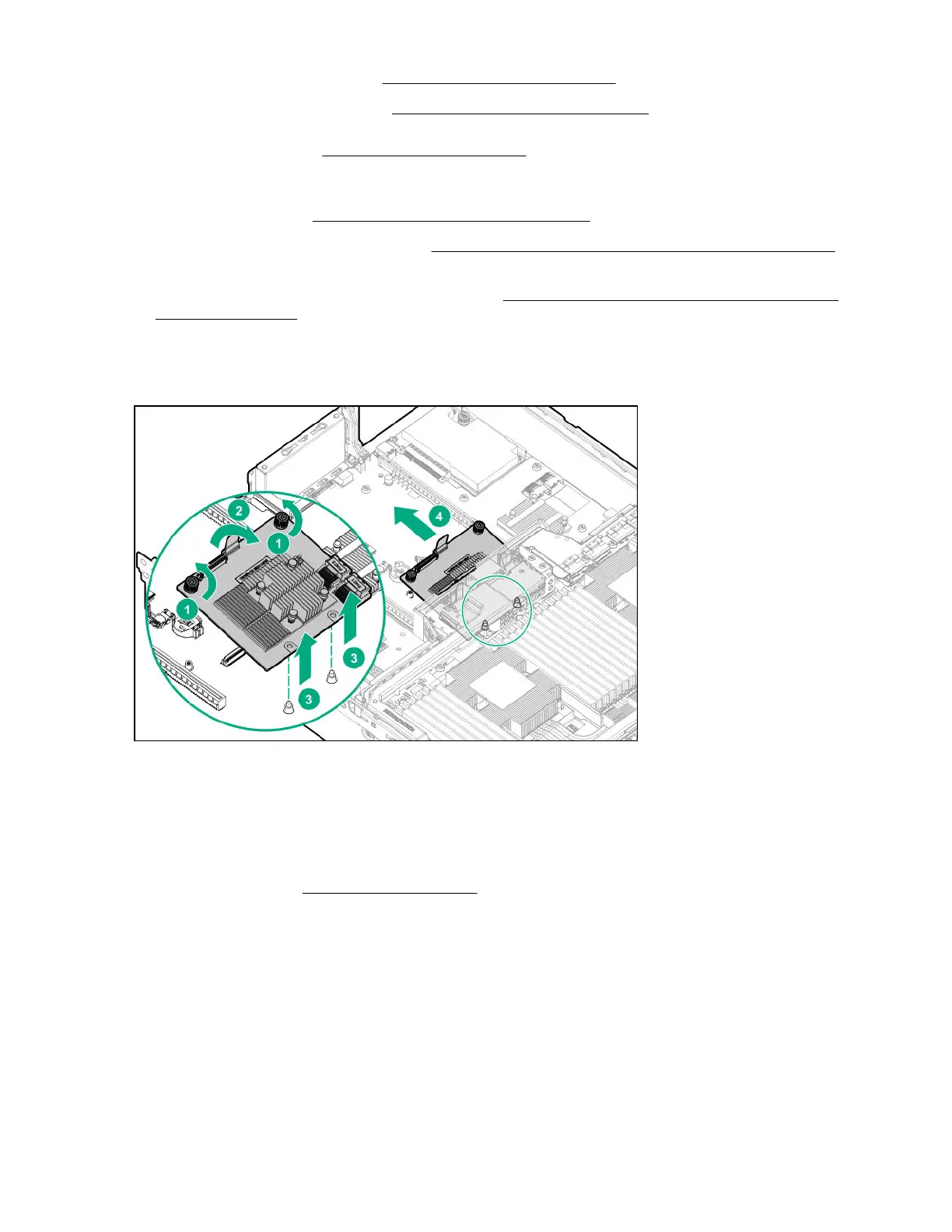

8. Remove the controller.
Removing and replacing an intrusion detection switch
Procedure
1. Power down the server (Power down the server on page 33).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
66 Removing and replacing an intrusion detection switch
