Component identification

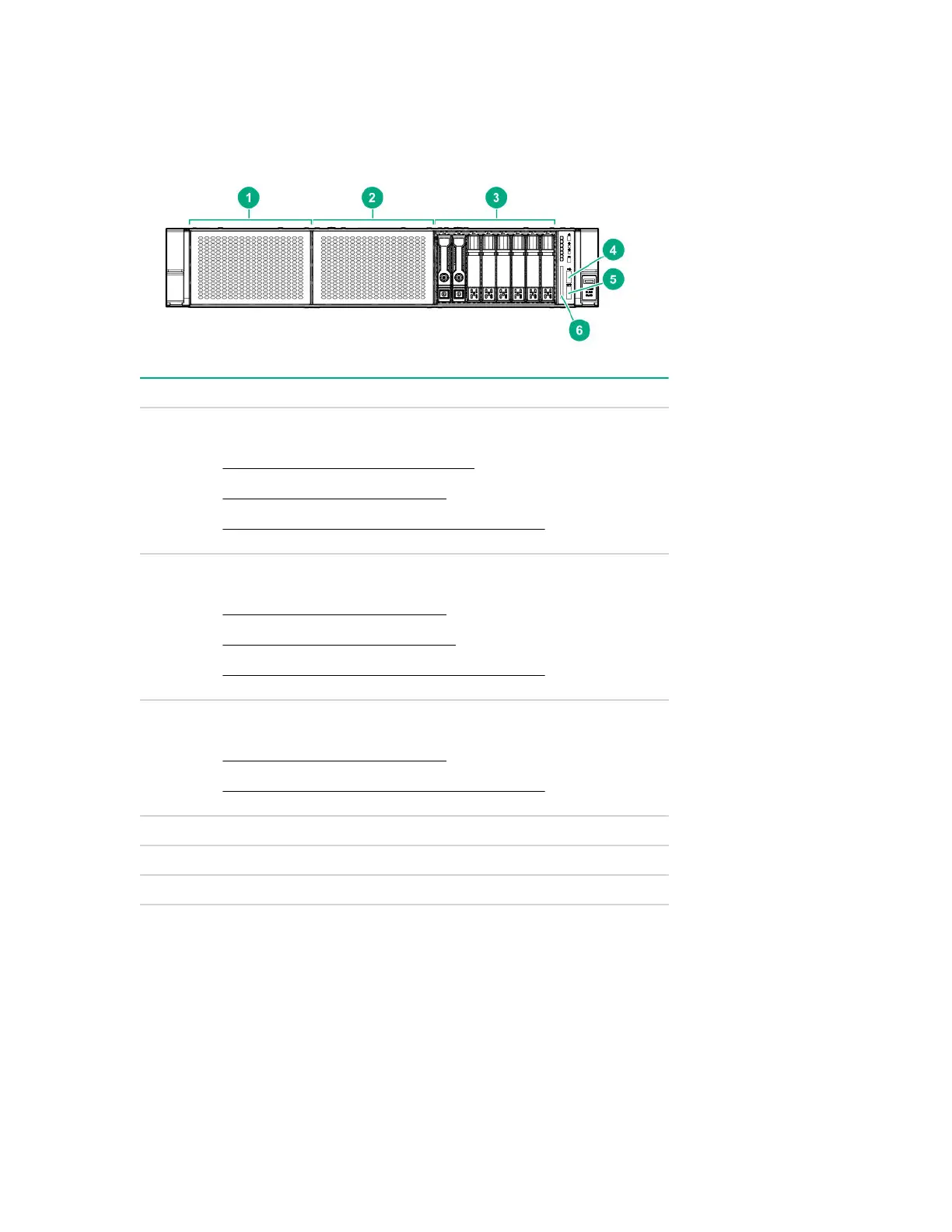

Front panel components
Item Description
1 Box 1 — Supported options:
Universal media bay components on page 78
Eight-bay SFF HDD drive cage on page 78
Two-bay NVMe/Six-bay SFF HDD drive cage on page 79
2 Box 2 — Supported options:
Eight-bay SFF HDD drive cage on page 78
Eight-bay SFF NVMe drive cage on page 79
Two-bay NVMe/Six-bay SFF HDD drive cage on page 79
3 Box 3 — Supported options:
Eight-bay SFF HDD drive cage on page 78
Two-bay NVMe/Six-bay SFF HDD drive cage on page 79
4 iLO Service Port (169.254.1.2)
5 Front USB 3.0 port
6 Serial number and iLO information pull tab
