HP ProLiant DL560 Gen10 - Rear Panel Leds; Power Supply Leds

Item Description
4 Power supply 2 (PS2)
5 Power supply 3 (PS3, optional)
6 Power supply 1 (PS1)
7 Serial port
8 iLO Management Port
9 Video port
10 Rear USB 2.0 ports (2)
11 Rear USB 3.0 ports (2)
12 FlexibleLOM (optional)

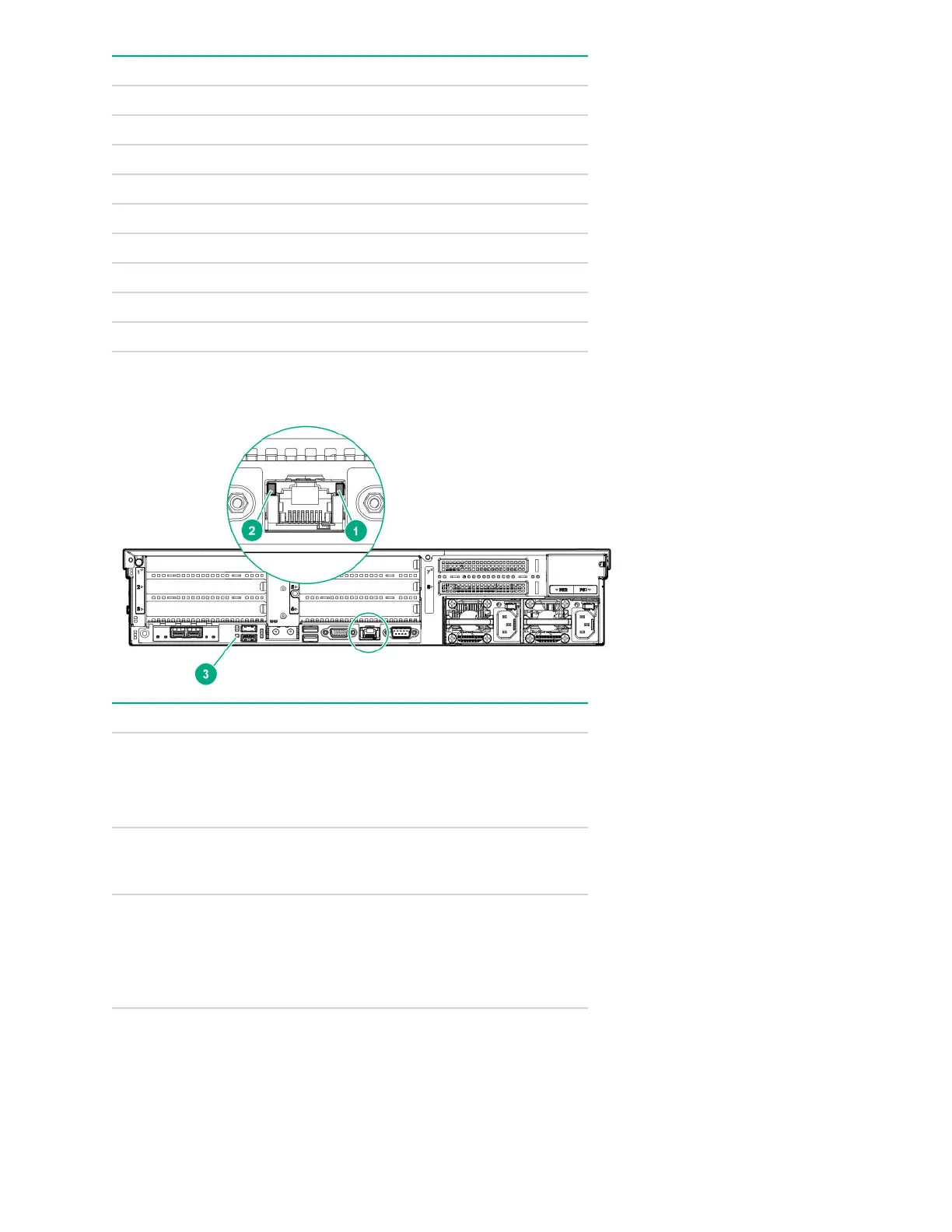

Rear panel LEDs
Item Description Status
1 Activity LED
Off = No network activity
Solid green = Link to network
Flashing green = Network activity
2 Link LED
Off = No network link
Green = Network link
3 UID LED
Off = Deactivated
Solid blue = Activated
Flashing blue = System being
managed remotely
Power supply LEDs
The power supply LED is located on each power supply.
88 Rear panel LEDs
