Removal and replacement procedures 32
a.
Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 25).
4. Remove the access panel (on page 29).
5. Remove the processor memory drawer shipping screws, if installed. Retain the screws for future use
("Processor memory drawer shipping screw locations" on page 30).

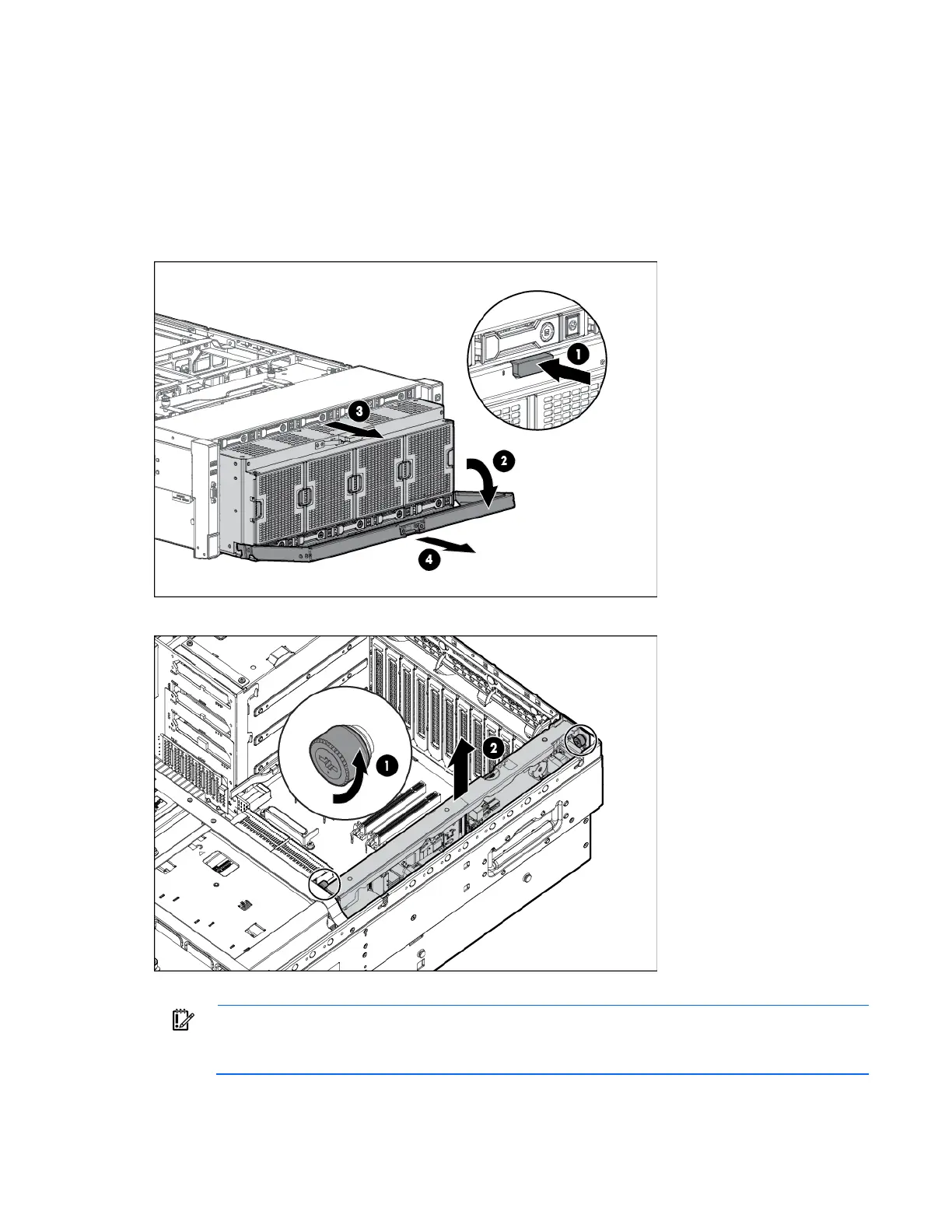

6. Extend the processor memory drawer approximately 2.54-5.1 cm (1-2 inches).
7. Loosen the thumbscrews on the SPI board, and then lift the SPI board to access the cables.
8. Disconnect all cables from the SPI board.
IMPORTANT: If replacing the SPI board or clearing NVRAM, you must re-
number through the Advanced System ROM options in UEFI System Utilities ("Re-entering the
server serial number and product ID" on page 70).
9. Remove the SPI board from the server.
