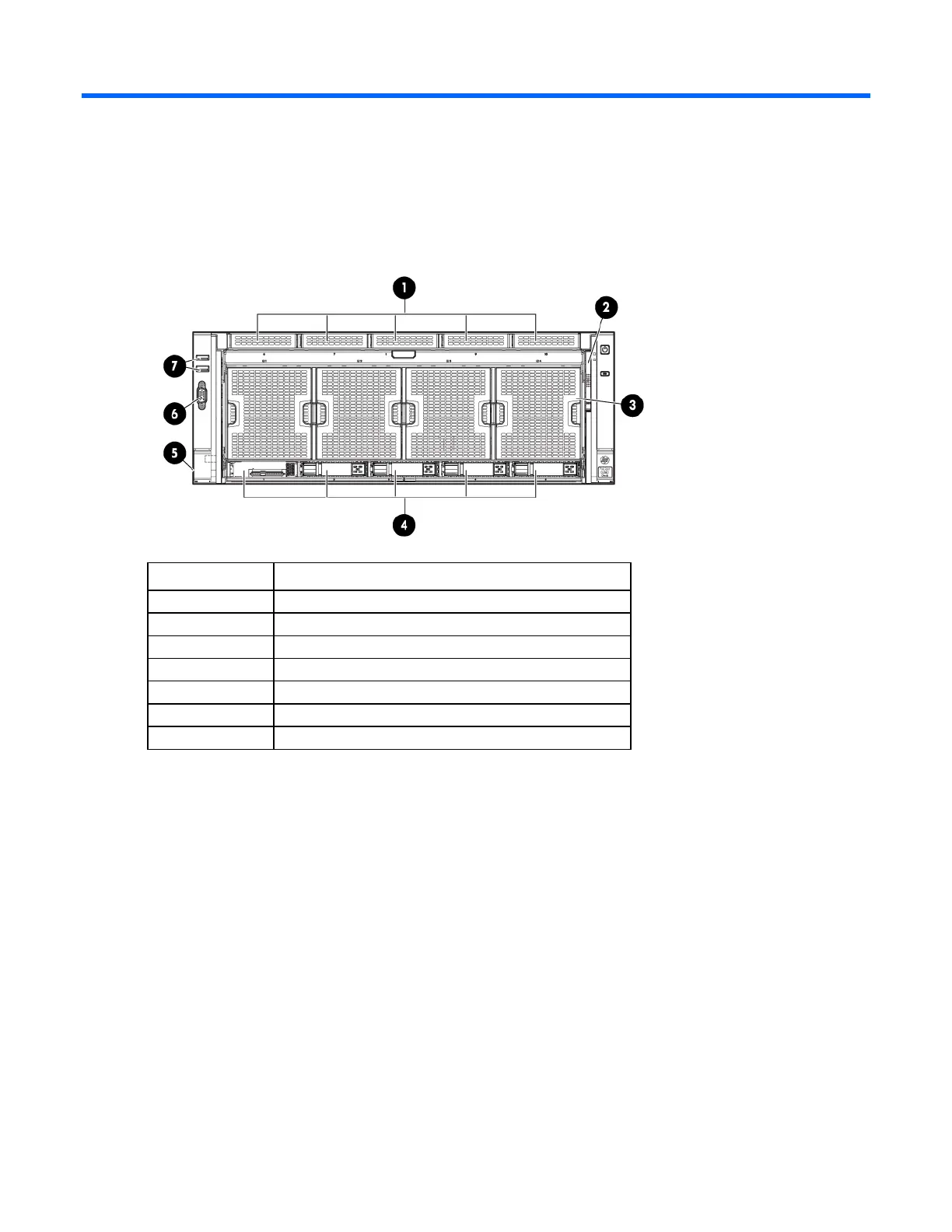

Front panel components
Item Description
1
Drive bays 6-10*
2
Systems Insight Display
3
Fans 1-4
4
Drive bays 1-5
5
Discovery services connectors
6
Video connector
7
USB connectors (2)
* Drives installed in these bays require the optional SAS backplane and cables.
