Removal and replacement procedures 36
5.

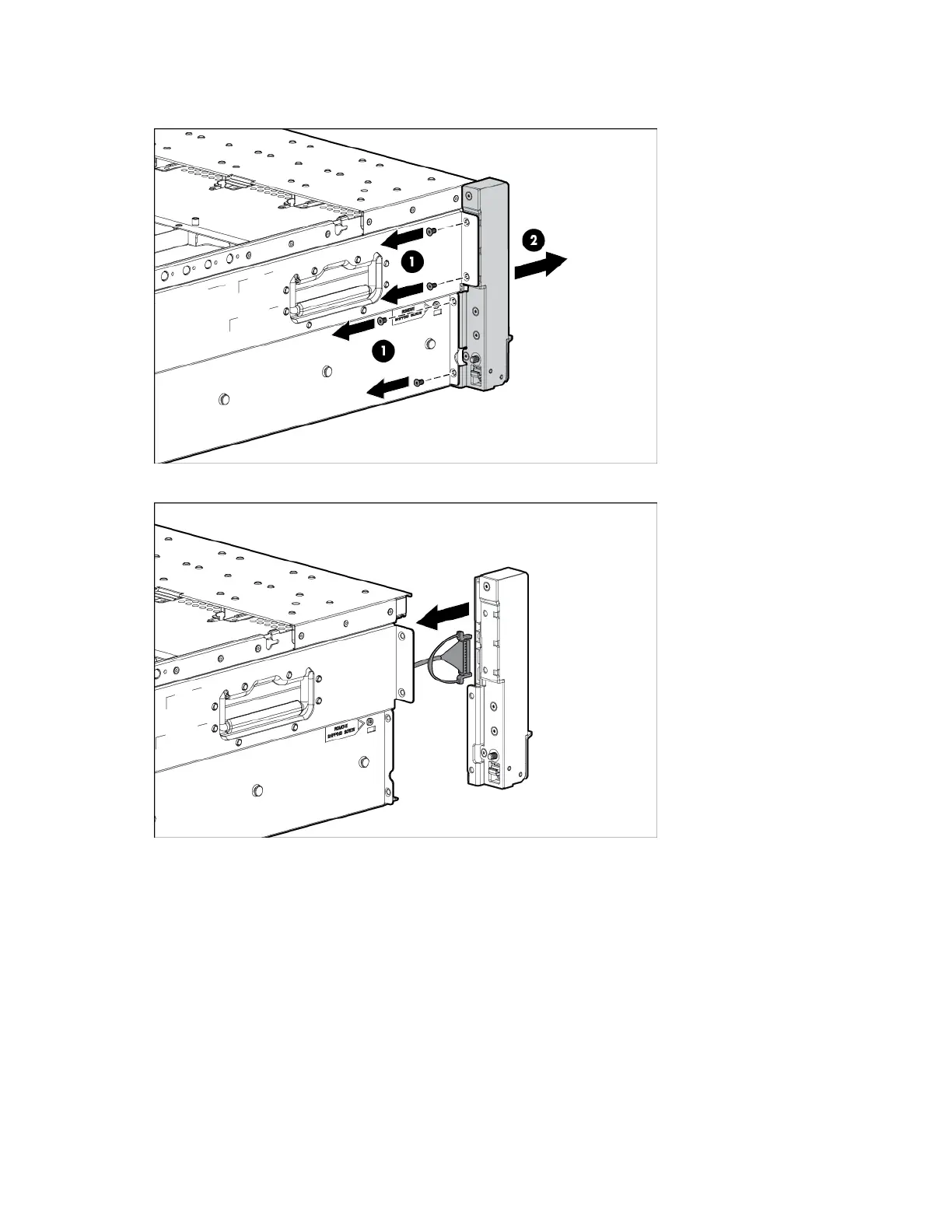

Using a Torx T-10 screwdriver, remove the screws securing the bezel to the chassis. Then, remove the
assembly from the server.
6. Disconnect the cable from the bezel.
To replace the component, reverse the removal procedure.
USB/video cable/Discovery Services
To remove the component:
1. Power down the server (on page 25).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Extend the server from the rack (on page 25).
