Removal and replacement procedures 37
4.
Remove the access panel (on page 29).
5. Remove the processor memory drawer (on page 30).
6. Remove the SPI board (on page 31).
7. Remove the left bezel ("Left bezel (USB/video)" on page 35).

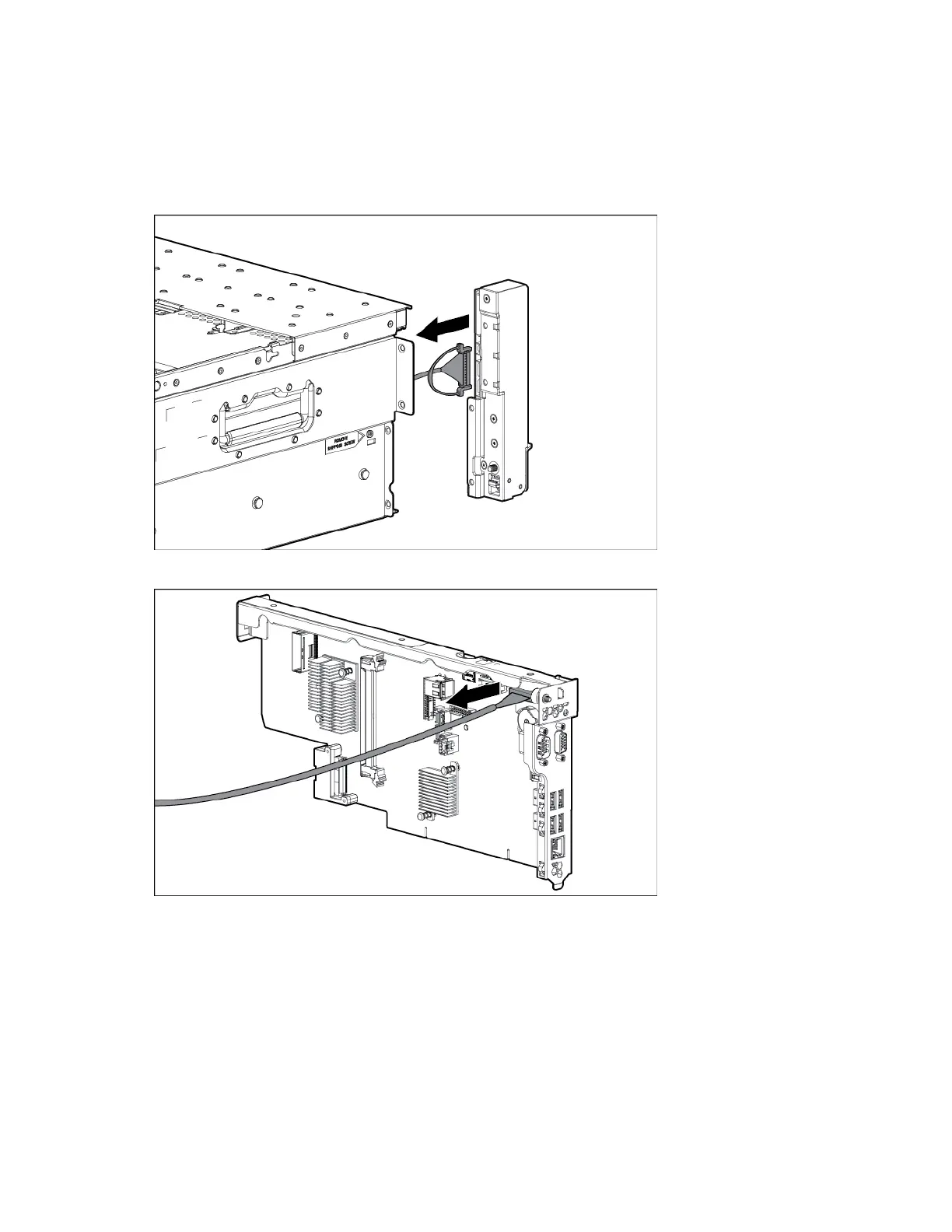

8. Disconnect the cable from the bezel.
9. Disconnect the cable from the SPI board.
To replace the component, reverse the removal procedure.
Right bezel (UID/power/SID)
To remove the component:
1. Power down the server (on page 25).
2. Remove all power:
a. Disconnect each power cord from the power source.
