HP ProLiant DL580 Gen8 - I;O Board Components

Component identification 77

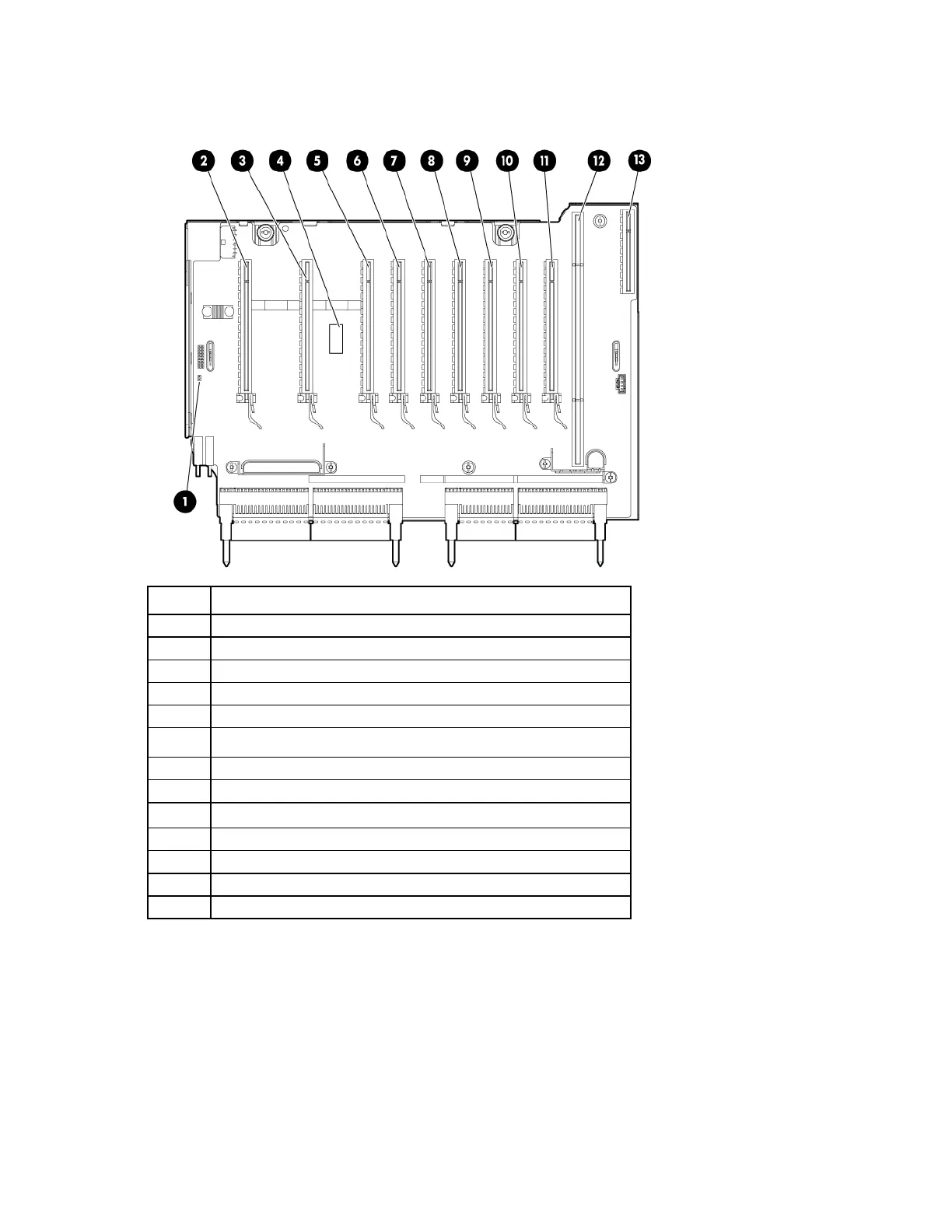

I/O board components
Item Description
1
NMI jumper
2
Slot 1 PCIe3 x16 (16, 8, 4, 2, 1)
3
Slot 2 PCIe3 x16 (16, 8, 4, 2, 1)
4
System maintenance switch
5
Slot 3 PCIe3 x16 (16, 8, 4, 2, 1)
6
Slot 4 PCIe3 x16 (8, 4, 2, 1)
7
Slot 5 PCIe3 x16 (8, 4, 2, 1)
8
Slot 6 PCIe3 x16 (16, 8, 4, 2, 1)
9
Slot 7 PCIe3 x16 (8, 4, 2, 1)
10
Slot 8 PCIe3 x16 (8, 4, 2, 1)
11
Slot 9 PCIe3 x16 (16, 8, 4, 2, 1)
12
SPI board connector
13
FlexibleLOM connector
