Removal and replacement procedures 59
10.

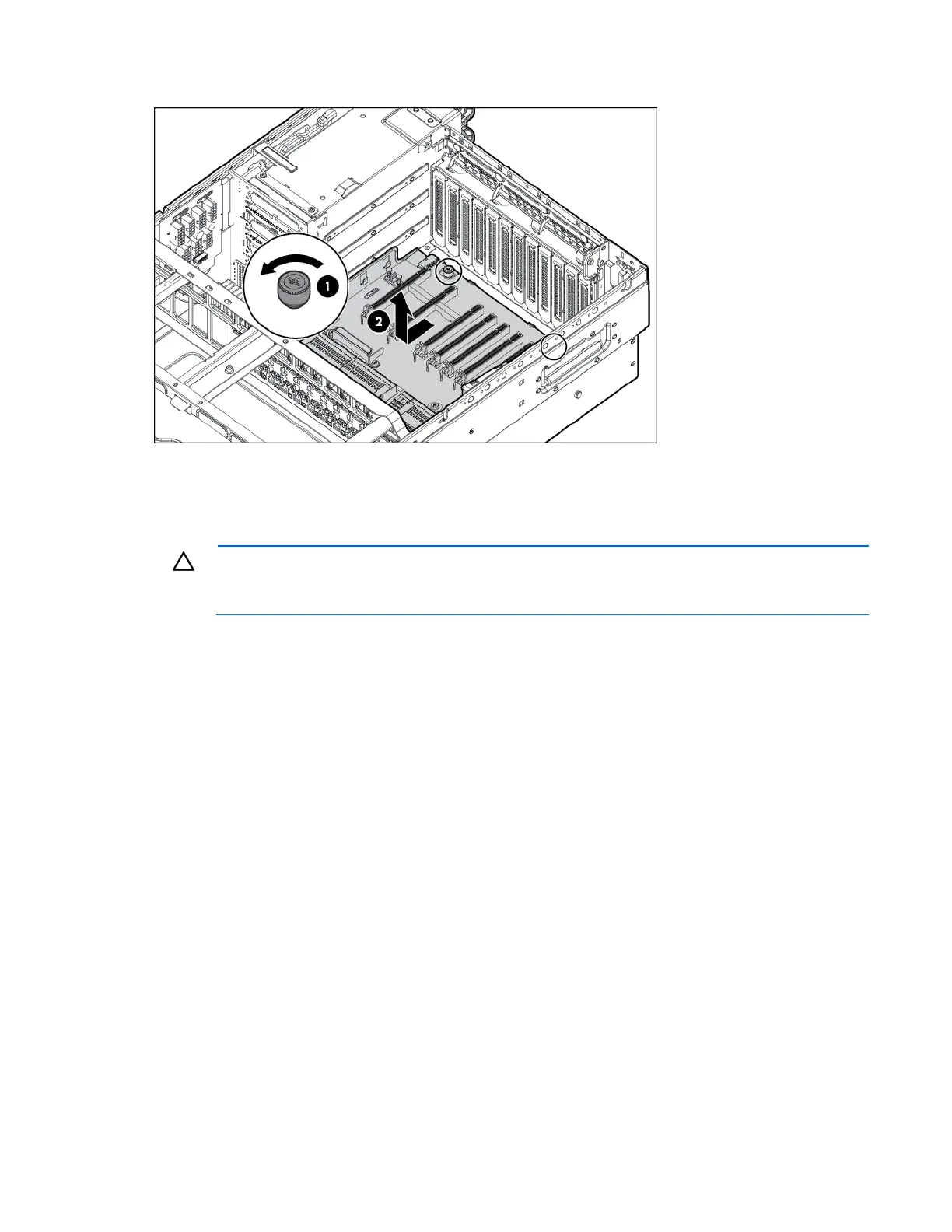

Remove the I/O board.
To replace the component, reverse the removal procedure.
Top SAS backplane
CAUTION: To prevent damage to electrical components, take the appropriate anti-static
precautions before beginning any system installation. Improper grounding can cause electrostatic
discharge.
To remove the component:
1. Power down the server (on page 25).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the access panel (on page 29).
4. Extend or remove the server from the rack ("Extend the server from the rack" on page 25, "Remove the
server from the rack" on page 26).
