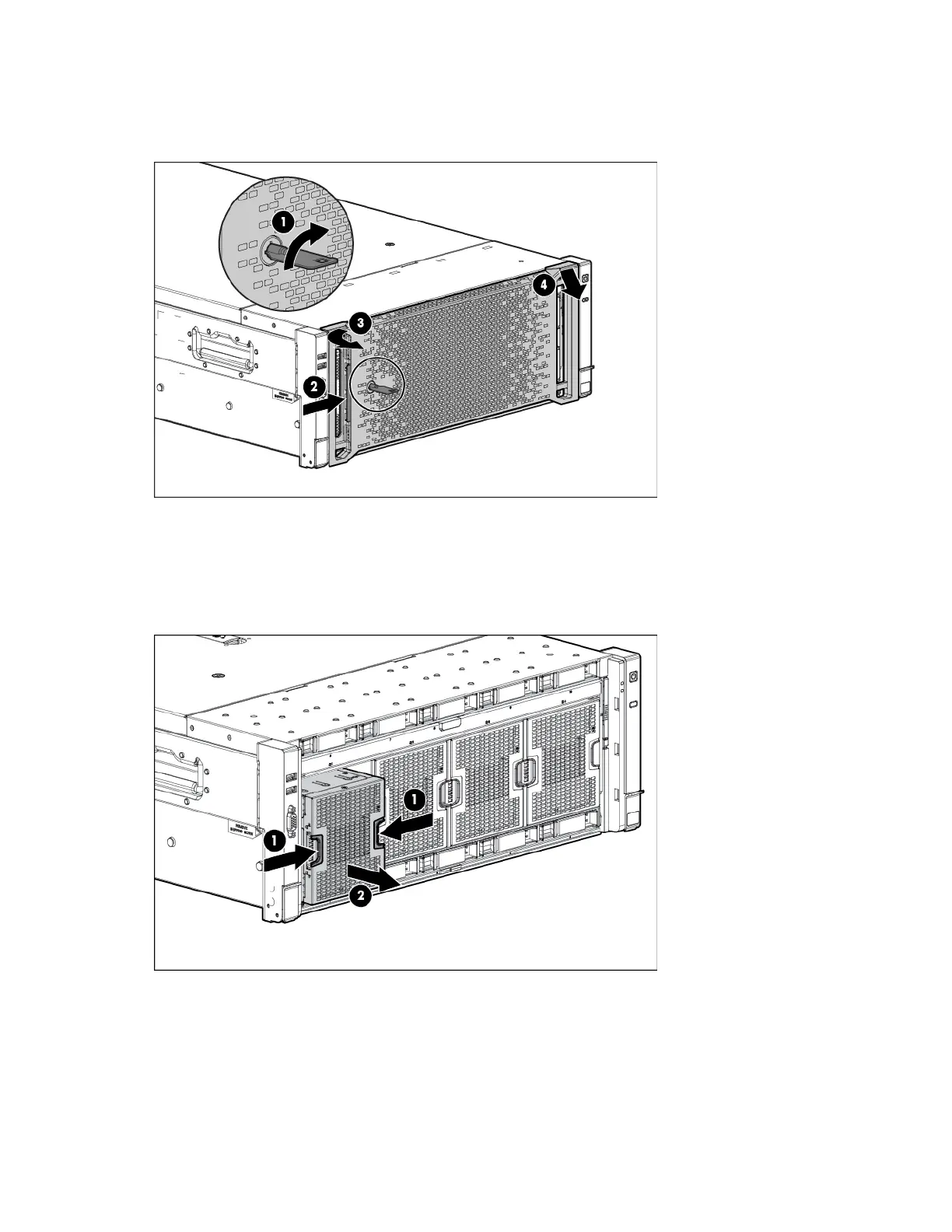

Removal an
d replacement
procedures
33
4
U rack beze
l
Remove the compone
nt as indicated.
To replace th
e component, rev
erse the removal p
rocedure.
F
an
Remove the compone
nt as indicated.
To replace th
e component, rev
erse the removal p
rocedure.
