Hardware options installation 22
a.

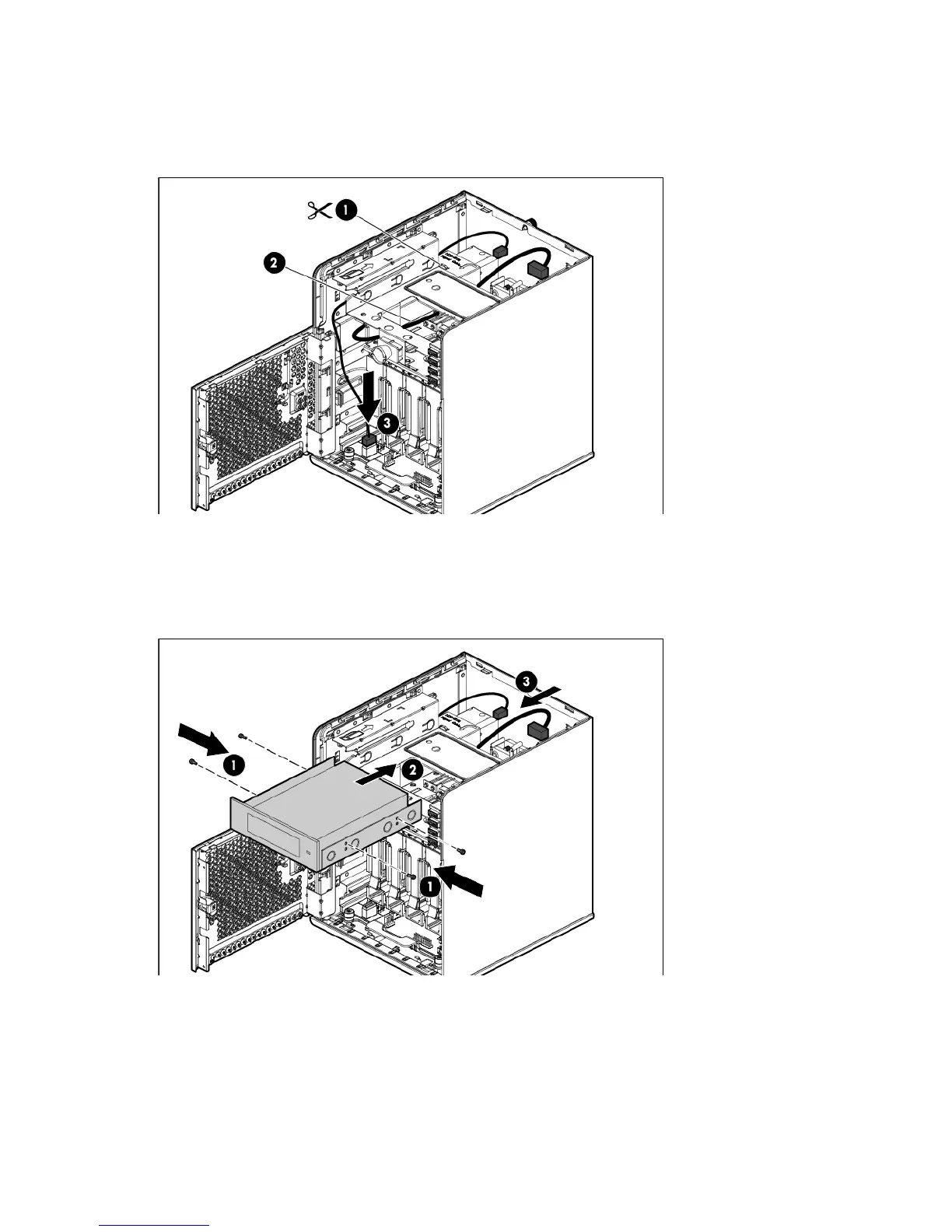

Cut the cable tie securing the P6 power cable, and then route the cable along the underside of the
media drive bay.
b. Connect the data cable to the USB connector on the system board, and then route the cable up and
through the cable tunnel on the left side of the media drive bay.
8. Install the RDX drive:
a. Remove four spare drive screws from the rear side of the panel door.
b. Install the screws onto the drive.
c. Connect the data and power cables to the drive.
