Removal and Replacement Procedures
2-14 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide
HP CONFIDENTIAL Codename: Stone Soup 2 Part Number: 368148-003 Last Saved On: 6/10/05 4:28 PM
5. Press the stopper in the center of the fan module on the rear of the chassis to release the
fan module from the rear panel (1).
6. Pull down the fan module slightly to remove it from the rear panel (2).
7. Carefully lift the fan module out and away from the chassis (3).

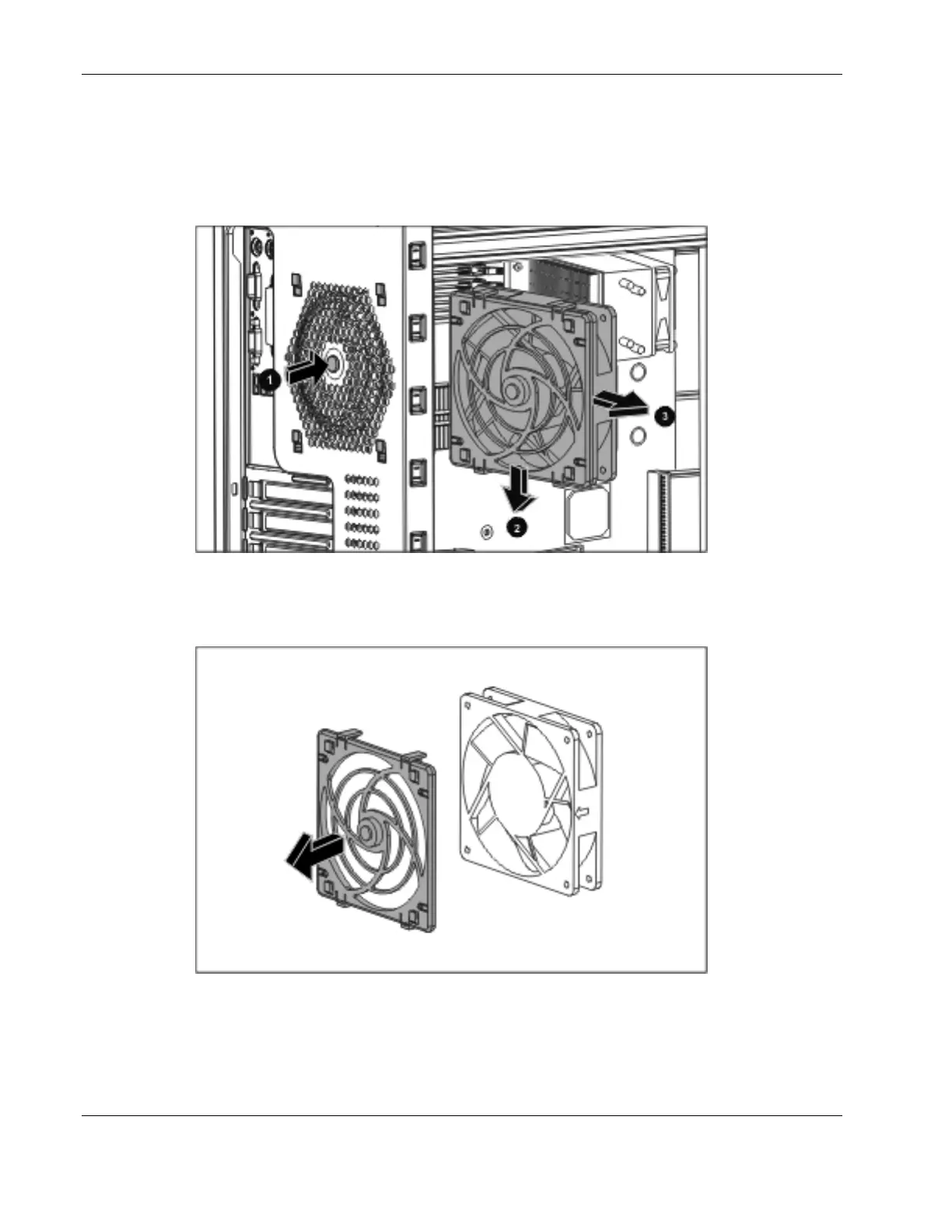

Figure 2-10: Removing the rear system fan module
8. To separate the fan and fan holder (the blue plastic part), pull the four latches of the fan
holder (two at the top and two at the bottom) away from the fan.
Figure 2-11: Removing the rear system fan holder
To replace the rear system fan module, reverse steps 2 through 8.

HP ProLiant ML150 Generation 2 Specifications

General

Processor Sockets	2
Form Factor	Tower
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
CPU	Intel Xeon processor
Memory Slots	6
Storage	Serial ATA (SATA) or Serial Attached SCSI (SAS) depending on configuration
Expansion Slots	6
