HP ProLiant ML150 Generation 2 User Manual

Removal and Replacement Procedures
2-44 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide
HP CONFIDENTIAL Codename: Stone Soup 2 Part Number: 368148-003 Last Saved On: 6/10/05 4:28 PM
8. Open the Zero Insertion Force (ZIF) lever to allow the removal of the processor (1).
To open the ZIF lever, pull the lever out away from the ZIF socket and rotate it to the
vertical position.
9. Grasp the processor by its edges, lift it out of the socket (2), and place it on a static-
dissipating work surface or into an anti-static bag.

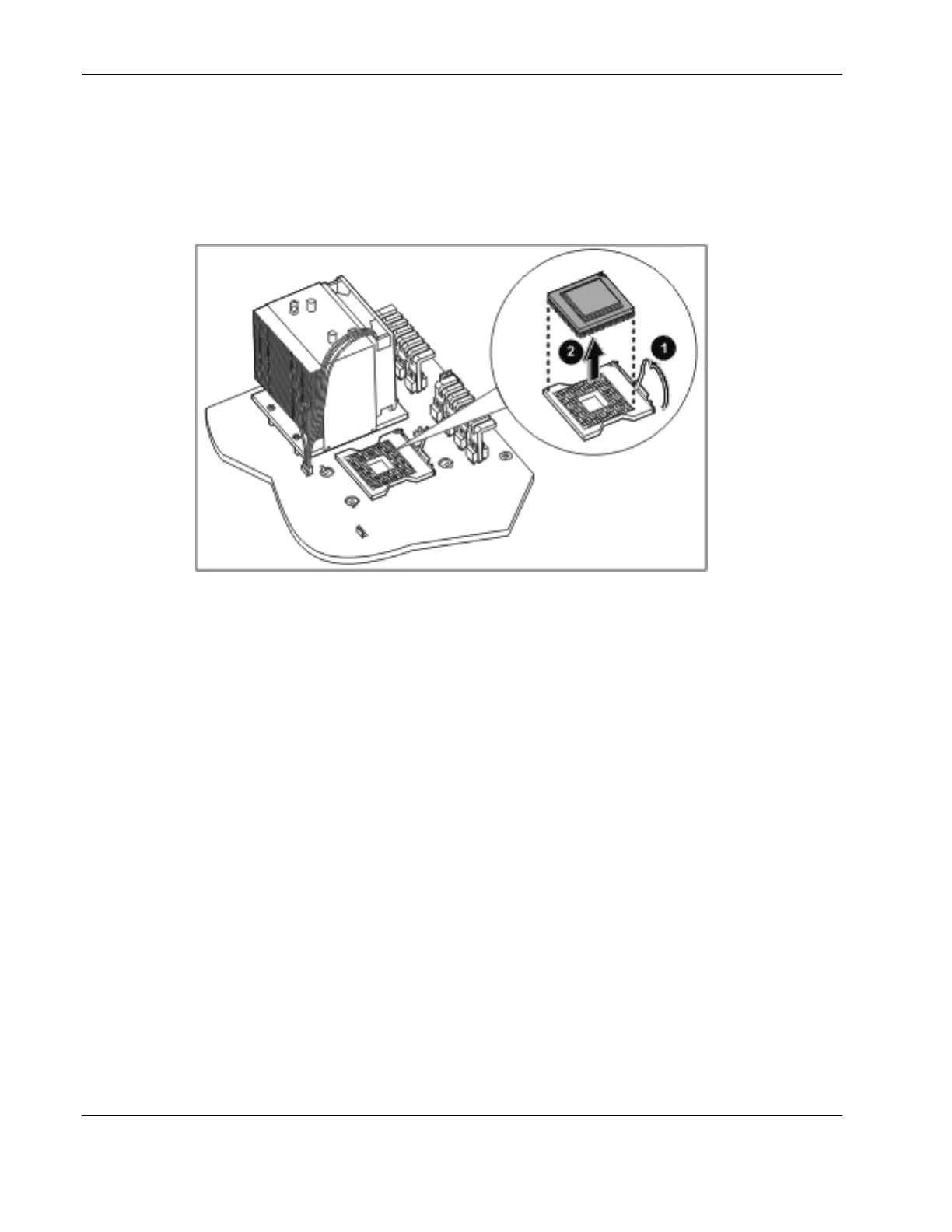

Figure 2-43: Removing the processor

HP ProLiant ML150 Generation 2 Specifications

General

Processor Sockets	2
Form Factor	Tower
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
CPU	Intel Xeon processor
Memory Slots	6
Storage	Serial ATA (SATA) or Serial Attached SCSI (SAS) depending on configuration
Expansion Slots	6
