Item Description Status
5 Power LED
Solid green = Do not remove the drive. Drive must be ejected
from the PCIe bus prior to removal.
Flashing green = Ejection request pending
Off = Drive has been ejected
6 Power button
Press to request PCIe ejection. Removal request can be denied
by the:
• RAID controller (one or more of the logical drives could fail)
• Operating system
7 Do not remove button Press to open the release lever.

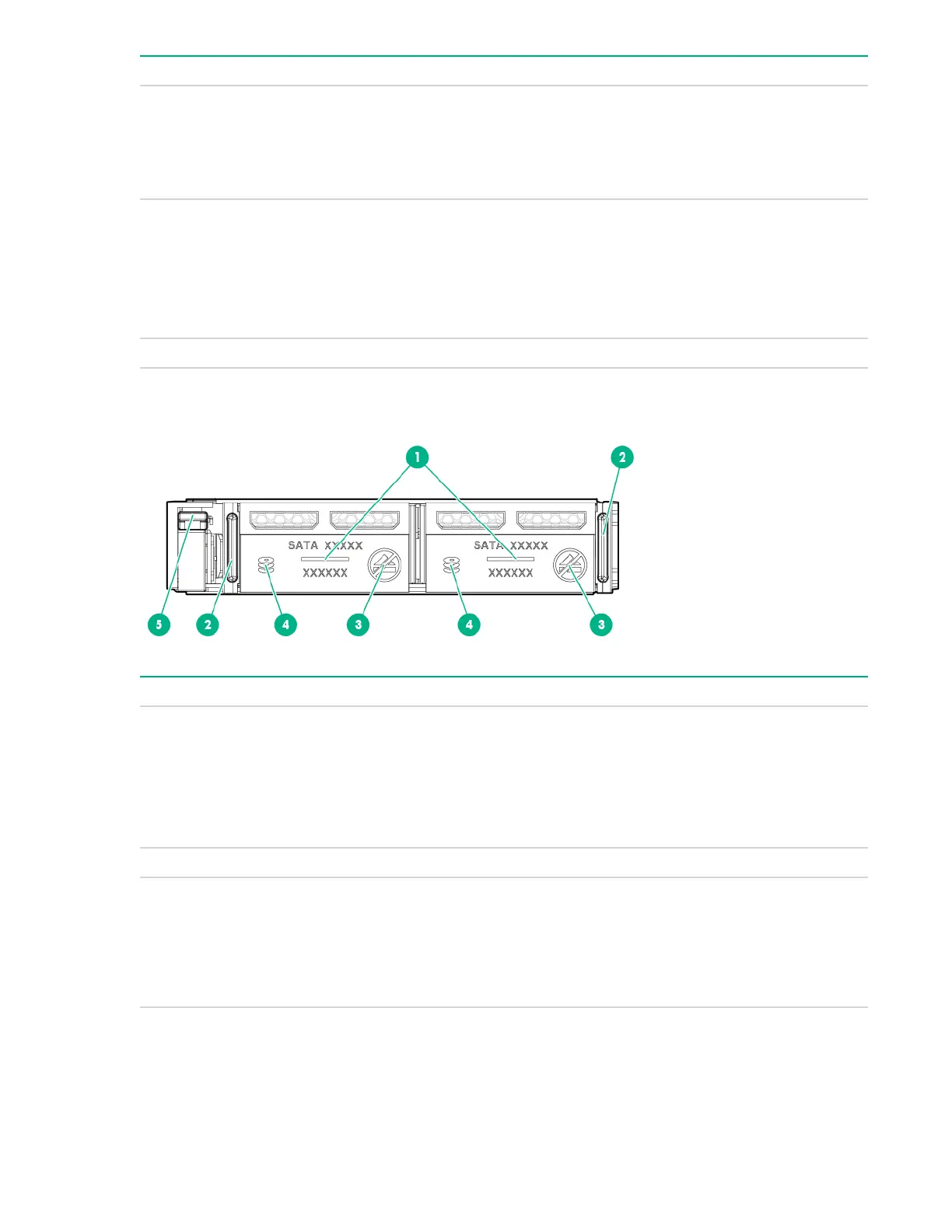

SFF flash adapter components and LED definitions
Item Component Description
1 Locate
• Off—Normal
• Solid blue—The drive is being identified by a host application.
• Flashing blue—The drive firmware is being updated or
requires an update.
2 uFF drive ejection latch Removes the uFF drive when released.
3 Do not remove LED
• Off—OK to remove the drive. Removing the drive does not
cause a logical drive to fail.
• Solid white—Do not remove the drive. Removing the drive
causes one or more of the logical drives to fail.
Table Continued
SFF flash adapter components and LED definitions 43
