HP ProLiant XL450 Gen10

Item Description
9 Processor 2 DIMMs (8)
10 System battery
11 SFF drive cage data cable connector
12 M.2 riser board
13 Front panel I/O board cable connector
14 microSD card slot
15 Front panel I/O board
16 iLO Service Port board

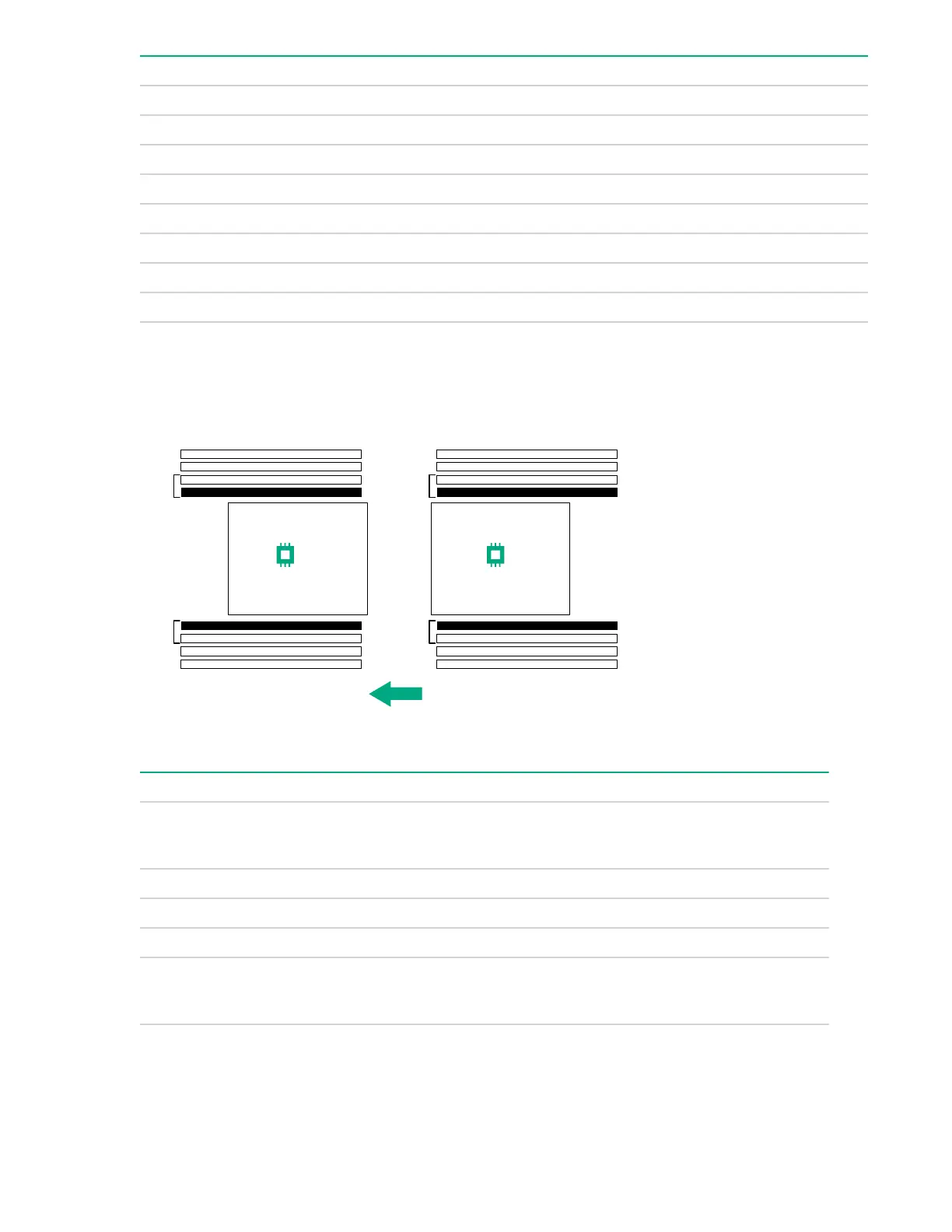

DIMM slot locations
The arrow points to the front of the server.
DIMM slots closest to the processors support NVDIMMs.
1
2
3
4
P1
5
6
7
8
Ch A
Ch B
Ch C
Ch F
Ch E
8
7
6
5
4
3
2
1
Ch D
Ch D
Ch E
Ch F
Ch C
Ch B
Ch A
P2
System maintenance switch
Position Default Function
S1 Off
Off = iLO security is enabled.
On = iLO security is disabled.
S2 Off Reserved
S3 Off Reserved
S4 Off Reserved
S5 Off
Off = Power-on password is enabled.
On = Power-on password is disabled.
Table Continued
DIMM slot locations 45
