3. Installation

3.7 Ground connection

HP R/T3000 G4 HV NA/JP and R/T3000 G4 INTL UPS

Check that the indications on the name plate located on the back of the UPS correspond to the AC-power source and the

true electrical consumption of the total load.

32 35

The UPS charges the battery as soon as it is connected to the AC power source, even if the button

is not pressed.

After the UPS is connected to the AC power source, eight hours of charging is required before the battery can

supply the rated backup time.

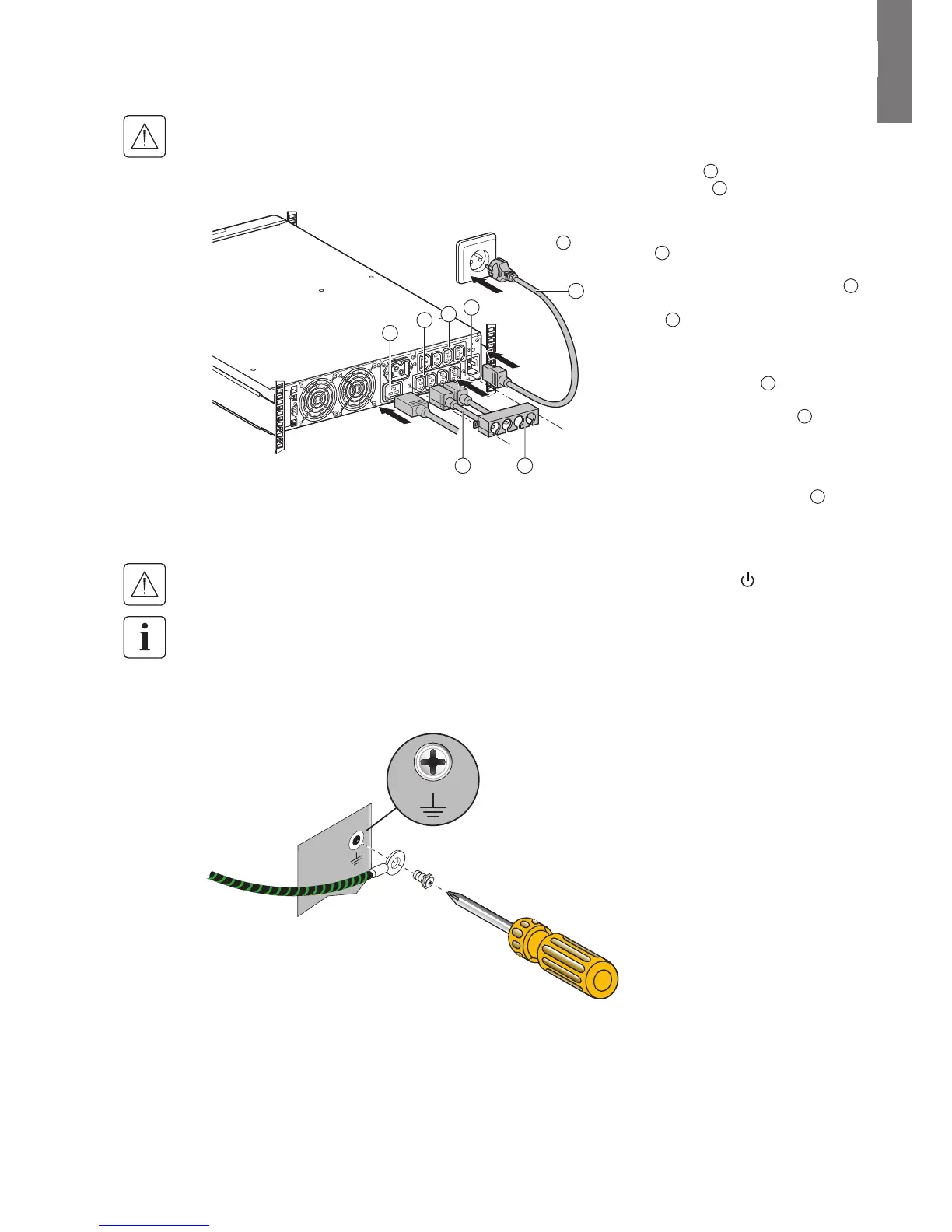

1. Connect the

supplied cable

(250V -

16A) to the socke

, then

to the AC-power source.

2. Connect the loads to the UPS using the

cables

It is preferable to connect the

priority loads to the four outlets marked

and the non-priority loads to the four outlets

marked

that can be programmed in pairs

(1 and 2).

For the R/T3000 G4 HV NA/JP HV and R/T3000

G4 INTL models, connect any high-power

devices to the 16A outlet

3. To program shutdown of outlets

during

operation on battery power and thus opti-

mise the available backup time,

please check the in/out settings.

4. Fit the connection securing system

that

prevents the plugs from being pulled out acci-

dentally.
