HP R/T3000 G4 ERM User Manual

ENGLISH
Page 19
792519-001 Edition 1
ENGLISH
3. Installation
3.5 Communication ports

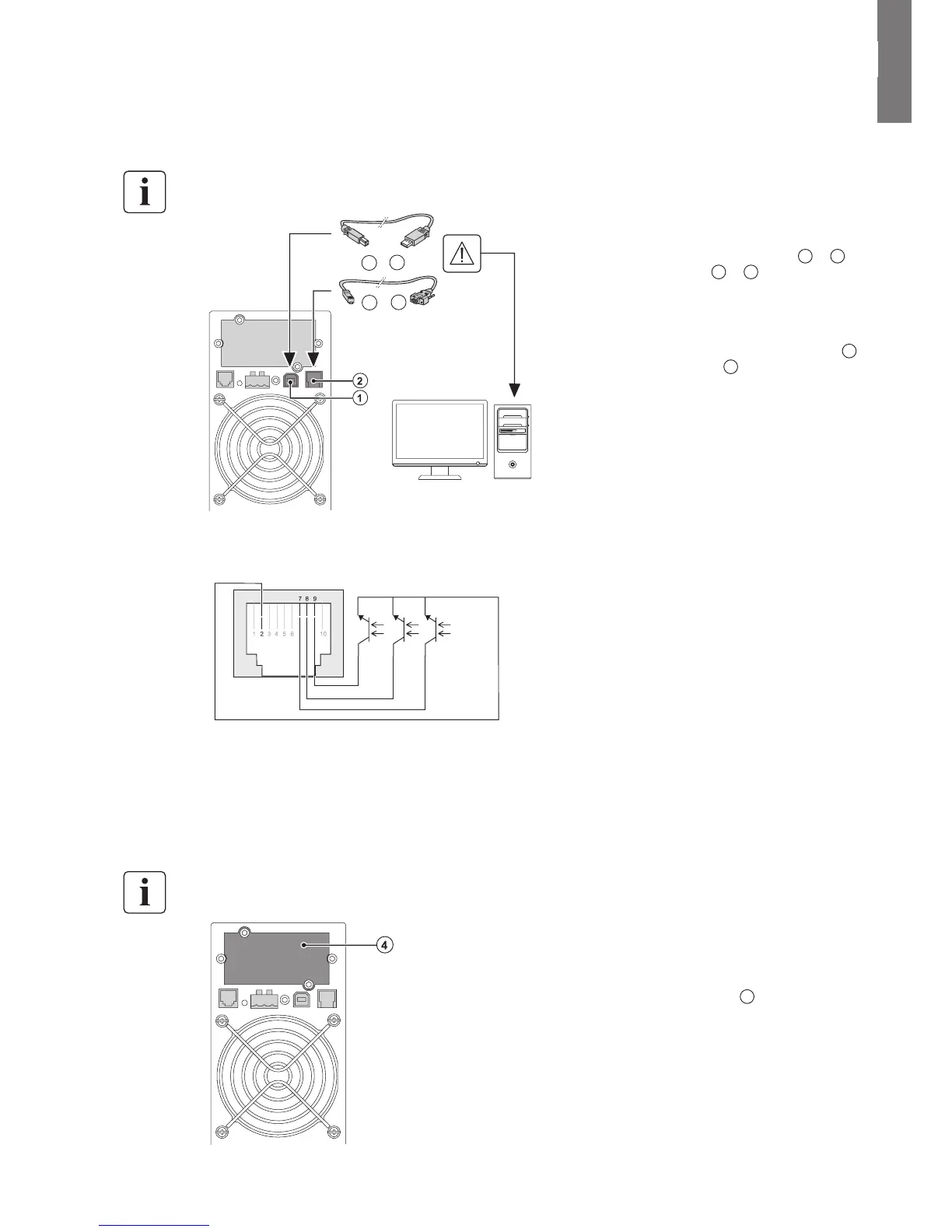

Connection of RS-232 or USB communication port (optional)
The RS-232 and USB communication ports cannot operate simultaneously.
16
17
34
33
or
or
1. Connect the RS-232(
16
or
33
) or
USB (
17
or
34
) communication
cable to the serial or USB port on
the computer equipment.
2. Connect the other end of the com-
munication cable to the USB
1
or
RS-232
2
communication port on
the UPS.
The UPS can now communicate with
HP power management software.
Installation of optional NMC Network Card
It is not necessary to shut down the UPS before installing a communication card.
1. Remove the mounting screws and
remove the slot cover
4
.
2. Insert the communication
card in the slot.
3. Secure the card cover with
the screws removed in Step 1.
When a signal is activated, the contact is closed between the common (pin 2) and the pin for the corresponding signal.
Contact characteristics (optocoupler)
• Voltage: 48 Vdc max
• Current: 25 mA max
• Power: 1.2W
Characteristics of the optocoupler RS-232 communications port
• Pins 1, 3, 4, 5, 6, 10: not used
• Pin 2: common (user)
• Pin 7: low battery
• Pin 8: operation on battery power
• Pin 9: UPS on, equipment sup-
plied
no: normally open contact

HP R/T3000 G4 ERM Specifications

General

Output Power Capacity	3000VA / 2700W
Topology	Double Conversion Online
Input Connection	IEC 320 C20
Rack Height	2U
Nominal Output Voltage	230V
Nominal Input Voltage	230V
Input Voltage	160 - 280V
Efficiency	Up to 95%
Operating Temperature	0 - 40°C
Form Factor	Rackmount/Tower
Output Connections	8 x IEC 320 C13, 2 x IEC 320 C19
Output Voltage	230V
Frequency	50/60 Hz
Battery Type	Sealed Lead-Acid (SLA)
Battery Recharge Time	3 hours
Communication Ports	USB, RS232
Warranty	3 years
