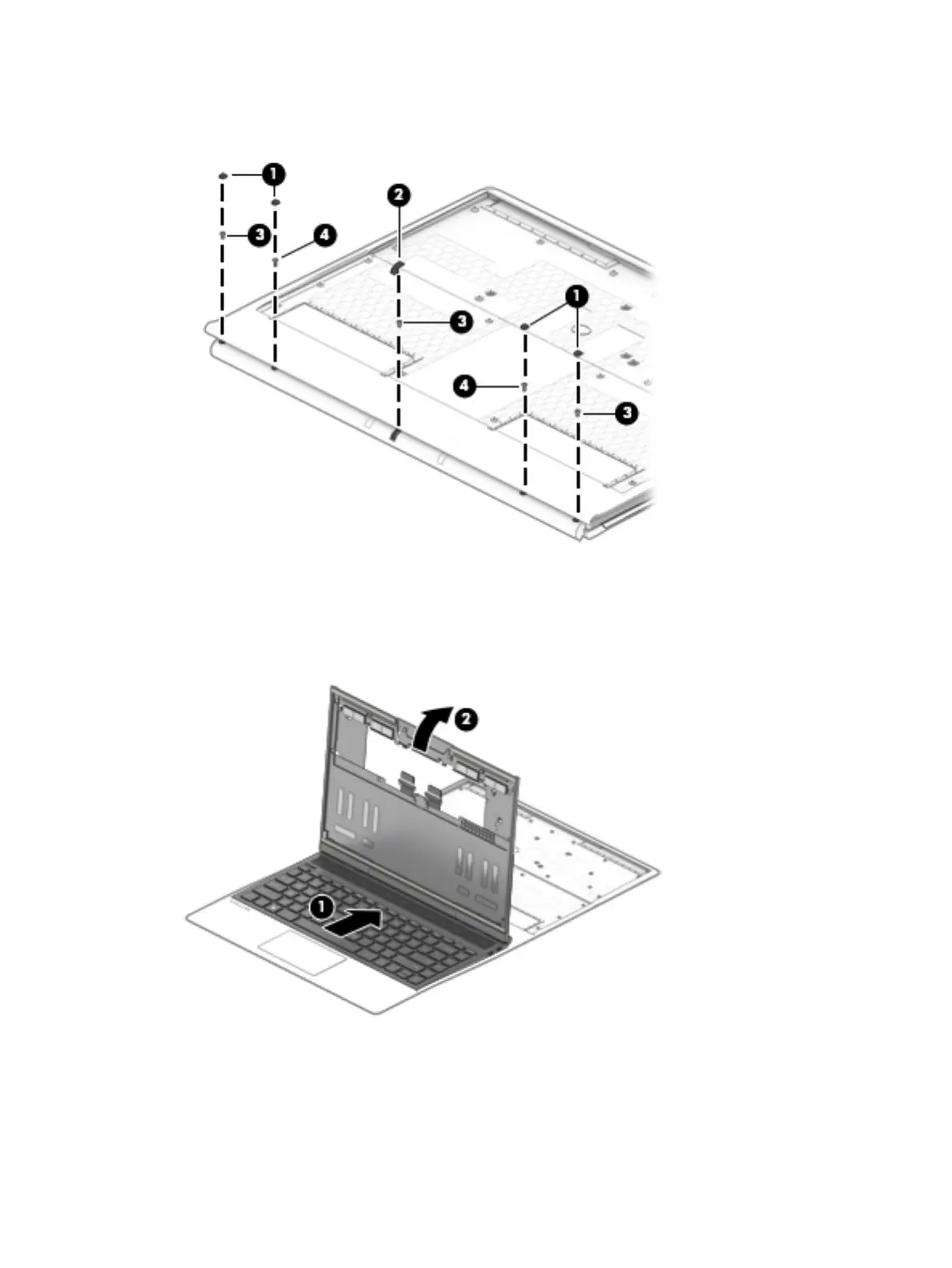

10. Remove the three Phillips M2.0×3.4 screws (3) and the two Phillips M2.0×4.3 screws (4) that secure
the display back cover to the leather cover.
11. Slide the keyboard (1) and display back cover away from the leather cover until it disengages from
the leather cover.
12. Swing the top edge (2) of the keyboard and display back cover back and down until the battery cable ZIF
connector and back light cable ZIF connector are accessible.
13. Release the ZIF connector (1) to which the TouchPad cable is connected, and then disconnect the TouchPad
cable from the system board.
14. Release the ZIF connector (2) to which the battery cable is connected, and then disconnect the battery
cable from the system board.
44 Chapter 5 Removal and replacement procedures
