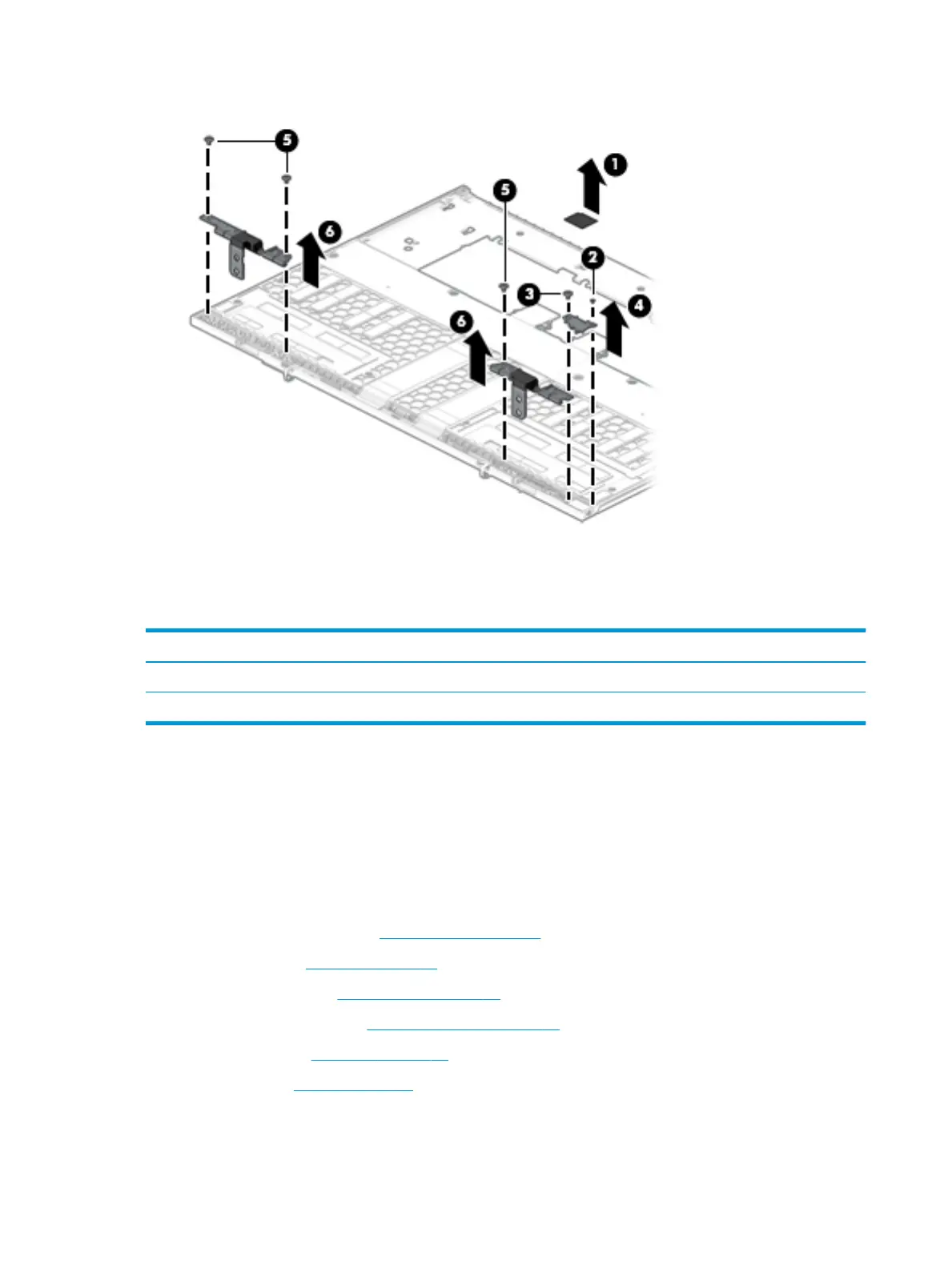

9. Remove the hinges (6).
Reverse this procedure to install the hinges.
Transfer board cable
Description Spare part number
For use only on computer models equipped with WLAN L38677-001
For use only on computer models equipped with WWAN L38676-001
Before removing the transfer board cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
4. Remove the display panel (see Display panel on page 25), and then remove the following components:
a. Webcam (see Webcam on page 36)
b. Leather cover (see Leather cover on page 41)
c. Speaker assembly (see Speaker assembly on page 46)
d. Keyboard (see Keyboard on page 49)
e. Hinges (see Hinges on page 52)
Remove the transfer board cable:
54 Chapter 5 Removal and replacement procedures
