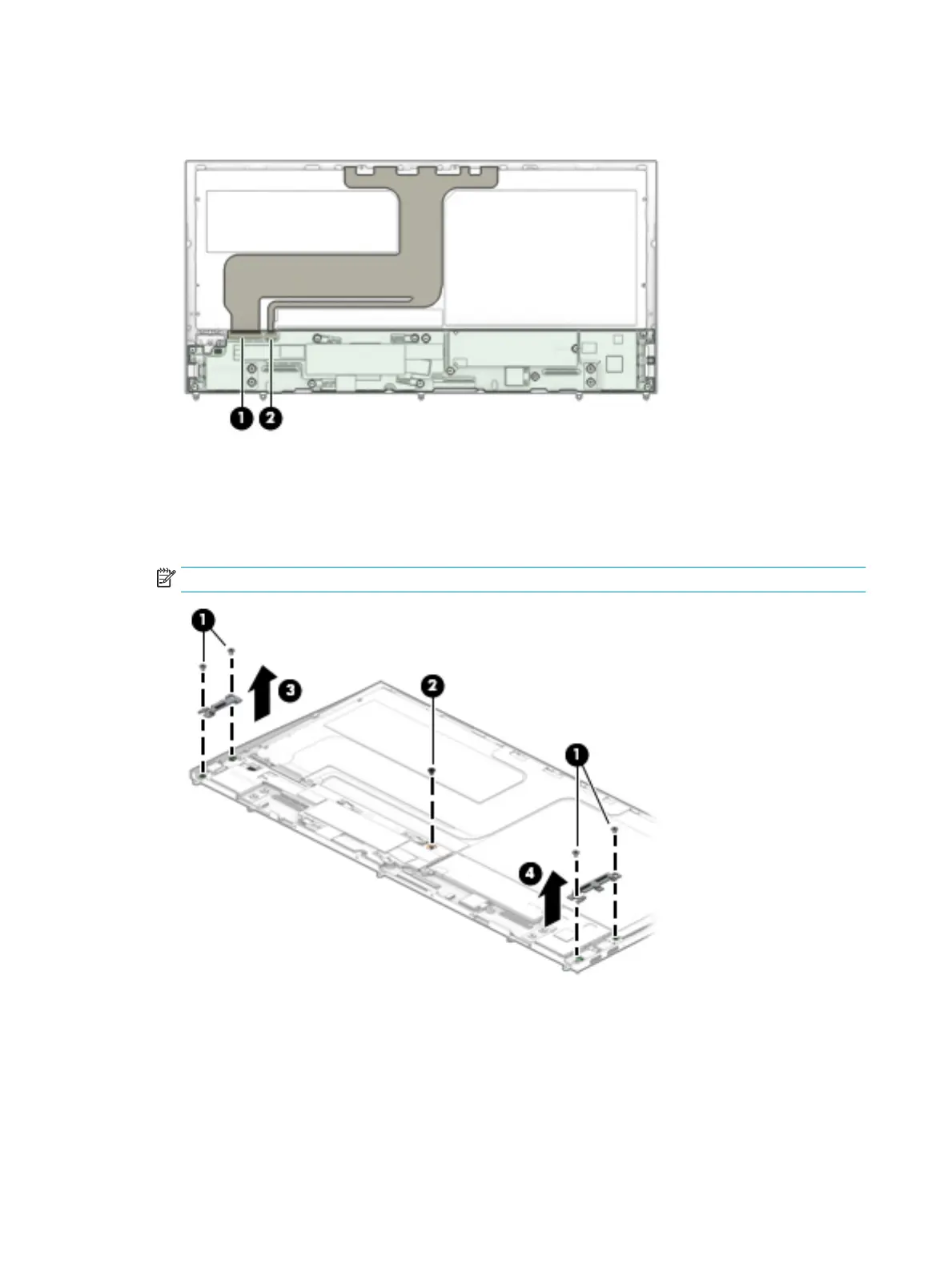

2. Release the ZIF connector (2) to which the TouchPad cable is connected, and then disconnect the TouchPad
cable from the system board.
3. Remove the four Phillips M2.0×2.9 screws (1) that secure the system board and the left and right I/O
brackets to the keyboard.
4. Remove the Phillips M2.0×2.3 broad head screw (2) that secures the system board to the keyboard.
5. Remove the left (3) and right I/O brackets (4).
NOTE: The I/O brackets are available using spare part number L38684-001.
6. Lift the front edge of the system board (1) until it rests at an angle.
62 Chapter 5 Removal and replacement procedures
