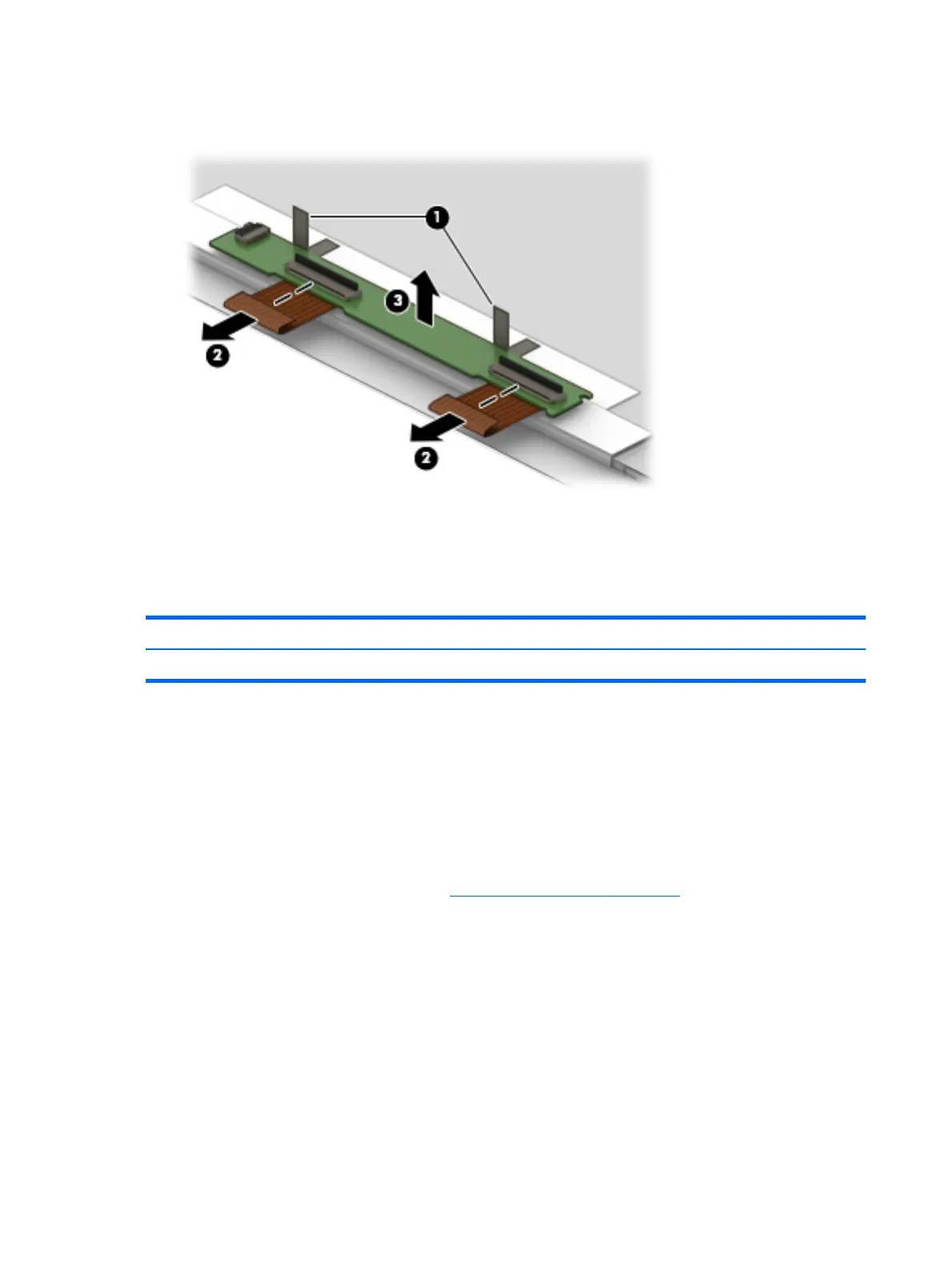

3. Detach the Touchscreen board (3) from the display panel assembly. (The Touchscreen board is attached
to the display panel assembly with double-sided adhesive.)
4. Remove the Touchscreen board.
Reverse this procedure to install the Touchscreen board.
Bottom bezel
Description Spare part number
Bottom bezel 924167-001
Before removing the bottom bezel, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the tablet.
4. Remove the display panel assembly (see Display panel assembly on page 20).
Remove the bottom bezel:
1. Remove the four Phillips PM2.0×3.8 screws (1) that secure the bottom bezel to the back cover.
2. Remove the two Phillips PM2.0×2.2 screws (2) that secure the bottom bezel to the back cover.
24 Chapter 5 Removal and replacement procedures
